Single-Layer HDPE/PE Pipe Line
One main high-efficiency single screw extruder supplies the complete pipe wall. This configuration is practical for standard water, gas, irrigation, sewer and cable protection pipe.
HDPE/PE Pipe Extrusion Line
- Material
- HDPE, PE, LDPE, virgin and recycled PE
- Pipe / Hose Range
- 16 - 1200 mm OD
- Output
- 150 - 1200 kg/h by model
HDPE/PE pipe extrusion line for 16-1200 mm water, gas, irrigation and sewer pipe, available in single-layer and ABA/ABC multilayer configurations.
Overview
HDPE/PE Pipe Extrusion Line
HDPE/PE Pipe Extrusion Line is a complete smooth pipe production system for municipal water supply pipe, gas pipe, irrigation pipe, sewer pipe and general cable protection pipe.
The same production platform can be configured for conventional single-layer pipe or ABA/ABC multilayer co-extrusion. A multilayer line adds a co-extrusion single screw extruder and a multilayer die head while sharing the calibration, cooling, haul-off, cutting and collection equipment.
For cost-sensitive ABA pipe production, recycled PE can be used in the middle structural layer while virgin PE is applied to the inner and outer surfaces. This reduces raw material cost while maintaining a smooth, bright pipe surface and controlled layer distribution.
Applications
Technical Features
- 16-1200 mm PE pipe diameter range by project configuration
- Single-layer, ABA and ABC multilayer pipe configurations on one complete production platform
- Virgin PE inner and outer layers with a recycled PE middle layer can reduce material cost
- 304 stainless steel vacuum calibration tank and spray cooling tank for long service life and rust-resistant operation
- Forged die head with spiral flow channel design for smooth, uniform and stable pipe extrusion
- High-speed, high-efficiency single screw extruder design for higher output, lower energy consumption and strong plasticizing performance
- PLC-controlled rotary chipless cutting machine for smooth, stable and clean pipe end cutting
- Pipe coiler / winder can be customized by pipe diameter and production speed, with multiple winding configurations available
Optional Equipment
How to Choose
- Confirm whether the pipe is for water supply, gas, irrigation, sewer or cable protection.
- Define OD range, wall thickness, SDR or pressure grade and target output.
- Choose coiler, cutter or pipe stacker according to pipe size and final packing method.
- Confirm single-layer, ABA or ABC structure and define each layer material and thickness ratio.
Production Configurations
Single-Layer and Multilayer HDPE Pipe on One Platform
ABA / ABC Multilayer HDPE Pipe Line
The line adds a co-extrusion single screw extruder and multilayer die head. Recycled PE can form the middle structural layer while virgin PE covers the inner and outer surfaces for lower cost and a smooth, bright finish.
Components
Main Equipment and Process
Core units are configured according to pipe material, diameter, layer structure, output target and downstream collection method.
Vacuum Loader + Drying Hopper
PE pellets are automatically conveyed to the drying hopper before extrusion, keeping material feeding stable and reducing moisture-related surface defects.
Single Screw Extruder
The main single screw extruder uses a high-speed, high-efficiency screw design to improve output, reduce energy consumption and strengthen HDPE/PE plasticizing performance.

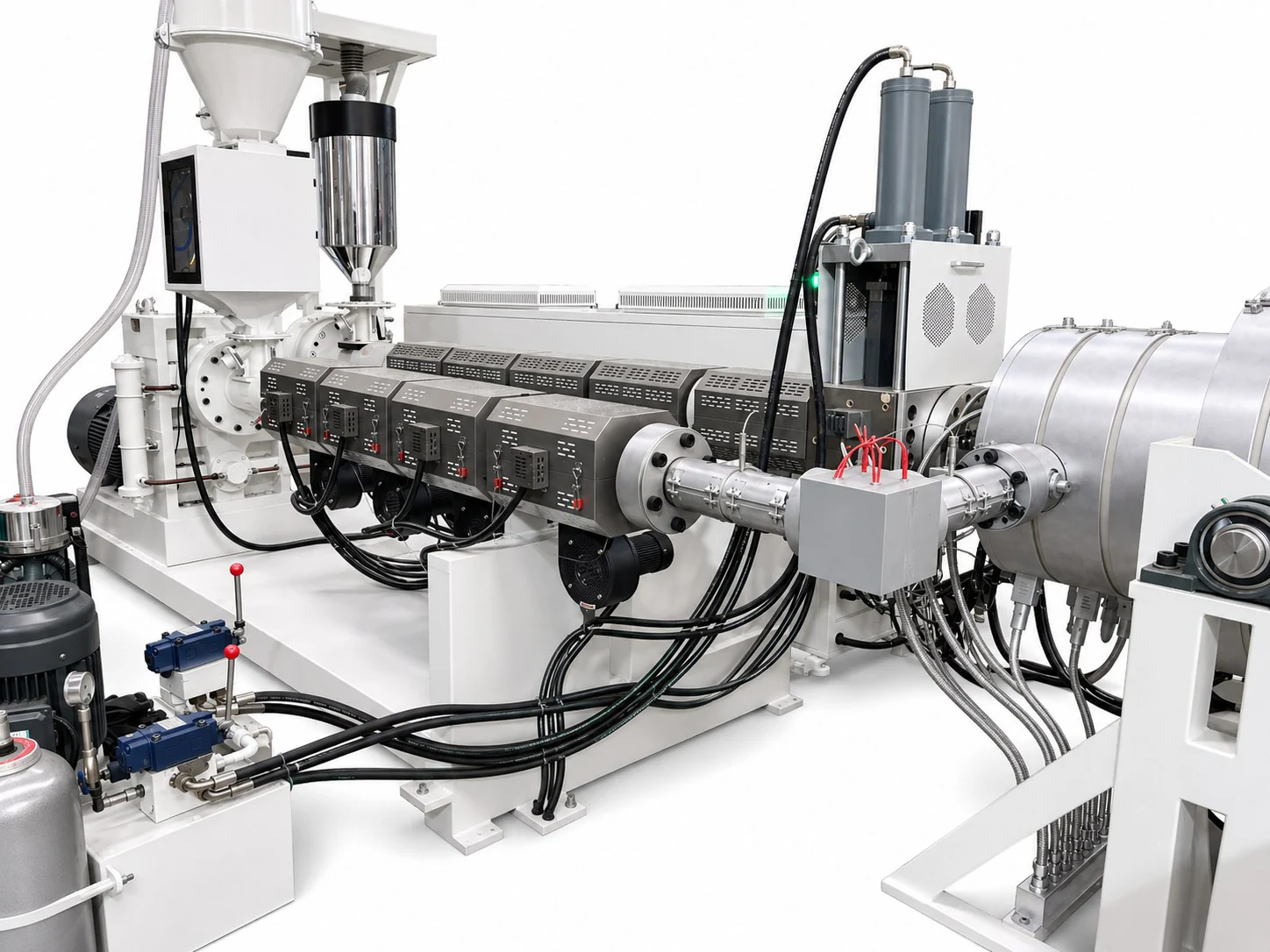

Co-Extrusion Single Screw Extruder
For ABA or ABC multilayer pipe, the additional single screw extruder supplies virgin PE to the inner and outer skin layers while the main extruder can process the recycled PE middle layer for lower material cost.

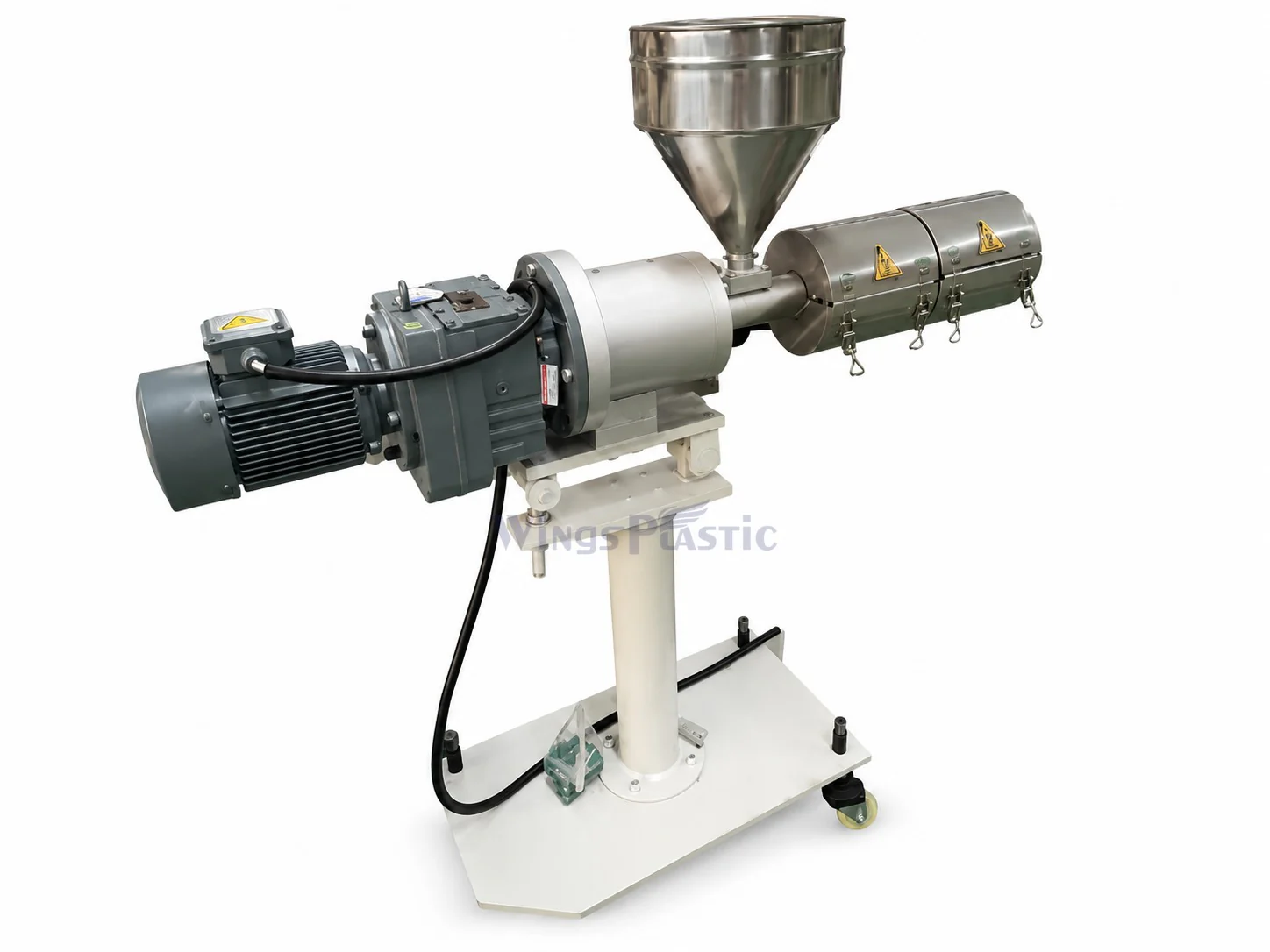

Color Marking Extruder
A small co-extruder adds blue, yellow or project-specific marking stripes for water, gas, irrigation, cable duct or telecom pipe identification.
Single-Layer / Multilayer Die Head and Mould
The forged die head uses spiral flow channels for uniform melt distribution. Single-layer and ABA/ABC multilayer structures are configured with different internal flow channel systems.
Vacuum Calibration Tank
The vacuum calibration tank is made with 304 stainless steel for long service life, rust-resistant operation, pipe roundness control and accurate outer diameter sizing.
Spray Cooling Tank
The spray cooling tank uses 304 stainless steel construction and controlled water circulation to provide durable, rust-resistant cooling and stable pipe surface quality.

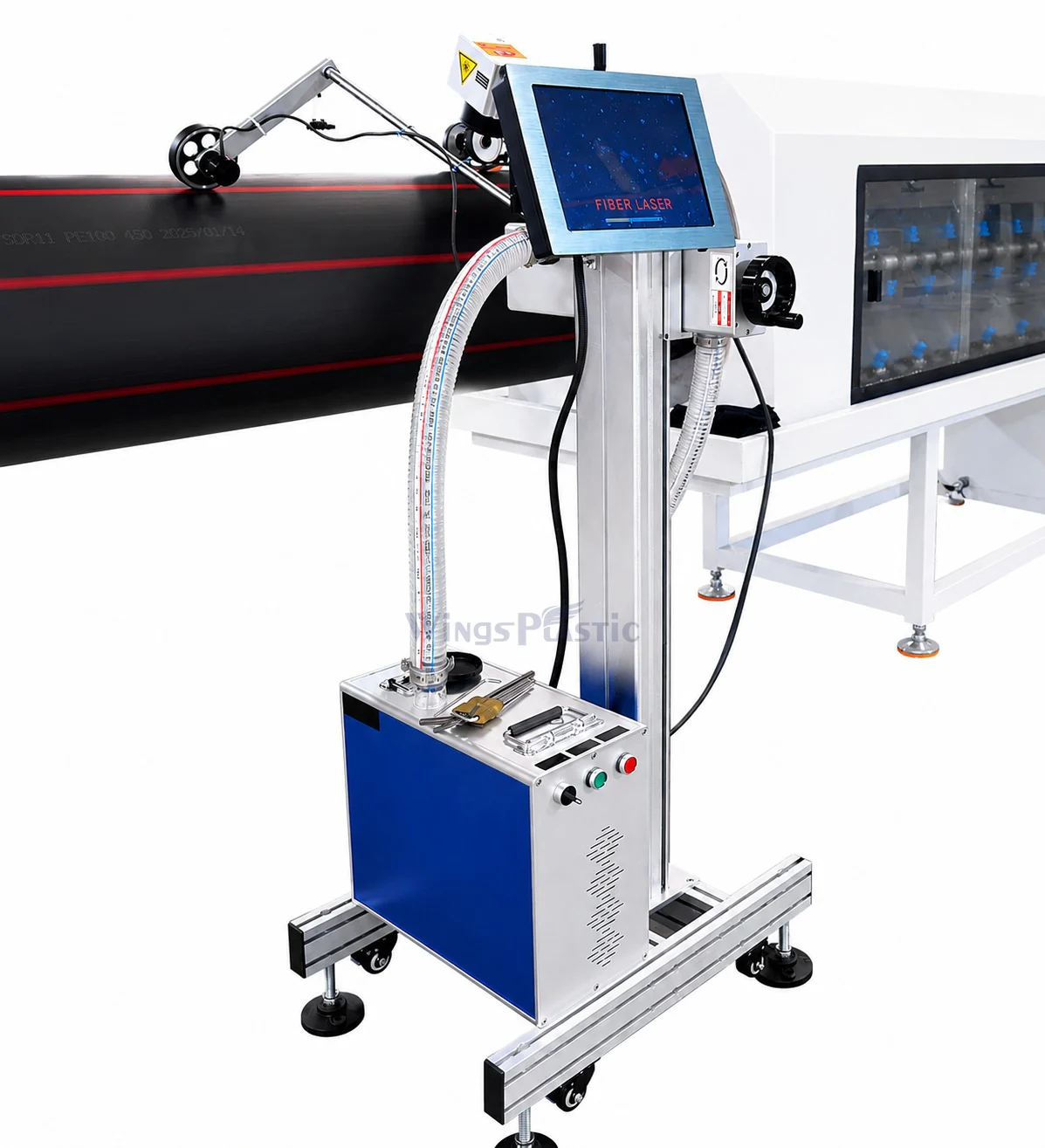

Laser Printer
The online laser printer marks pipe specification, standard, batch information, production date and customer-required identification clearly on the pipe surface.
Pipe Haul-off Machine
The haul-off machine synchronizes traction speed with extrusion output to maintain wall thickness and steady pipe movement.
Pipe Cutting Machine
The cutting unit adopts rotary chipless cutting with PLC control, providing smooth pipe end faces, stable tracking and fixed-length cutting before stacking or downstream handling.

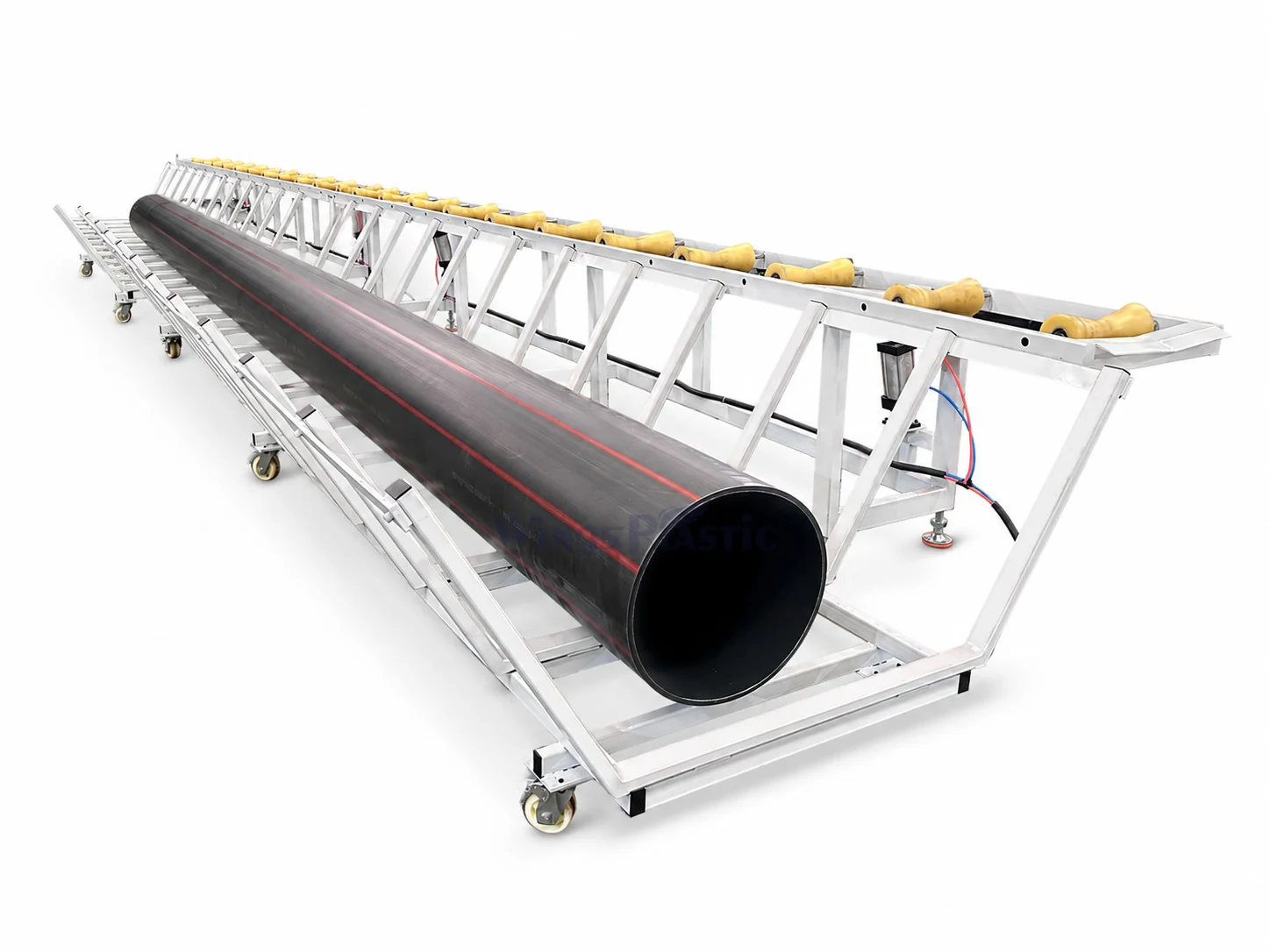

Pipe Stacker
The pipe stacker receives fixed-length pipe after cutting and transfers pipe smoothly for manual or semi-automatic collection.
Pipe Coiler / Winder
Small-diameter PE pipe, irrigation pipe and cable protection pipe can be collected by customized coiler or winder models selected by pipe diameter and production speed.
HDPE Pipe Production Line Machine List
| Machinery Type | Extruder Type | Pipe Diameter OD | Max Output |
|---|---|---|---|
| HDPE-63 | SJ70/32-37kw | 16-63mm | 150kg/h |
| HDPE-110 | SJ65/33-55kw | 20-110mm | 220kg/h |
| HDPE-160 | SJ75/33-90kw | 50-160mm | 340kg/h |
| HDPE-315 | SJ90/33-160kw | 110-315mm | 600kg/h |
| HDPE-400 | SJ90/33-160kw | 160-400mm | 600kg/h |
| HDPE-630 | SJ120/33-255kw | 280-630mm | 900kg/h |
| HDPE-800 | SJ120/33-255kw | 400-800mm | 900kg/h |
| HDPE-1200 | SJ150/33-400kw | 800-1200mm | 1200kg/h |
HDPE/PE Pipe Extrusion Line Configuration
| Item | Configuration | Selection Point |
|---|---|---|
| Machine type | HDPE pipe extrusion line / PE pipe machine | Used for smooth PE pipe production, not corrugated pipe production. |
| Pipe applications | Water, gas, irrigation, sewer, cable protection, single-layer and multilayer pipe | Confirm final pipe use before selecting extruder output and downstream handling. |
| Pipe diameter range | 16 - 1200 mm OD | Machine models cover HDPE-63 to HDPE-1200 according to pipe OD range. |
| Max output range | 150 - 1200 kg/h | Output depends on extruder model, raw material, wall thickness, cooling length and pipe specification. |
| Main equipment | Vacuum loader, drying hopper, main extruder, optional multilayer co-extruder, color marking extruder, mould, calibration tank, cooling tank, laser printer, haul-off, cutter, stacker or coiler | Configured as a complete PE pipe production line according to project requirements. |
| Quotation basis | Material, pipe OD, wall thickness, SDR/pressure class, output target, voltage and factory layout | These details directly affect HDPE pipe machine price and delivery scope. |
Single-Layer vs ABA/ABC Multilayer HDPE Pipe Line
| Configuration | Extrusion System | Material Strategy | Main Benefit |
|---|---|---|---|
| Single-layer HDPE/PE pipe | One main single screw extruder with optional color marking extruder | One PE formulation through the full wall thickness | Simple configuration for standard water, gas, irrigation and sewer pipe |
| ABA multilayer HDPE pipe | Main extruder plus one co-extrusion single screw extruder and ABA die head | Recycled PE middle layer with virgin PE inner and outer skin layers | Lower raw material cost with smooth inner and outer surfaces |
| ABC multilayer PE pipe | Multiple extruders and an ABC multilayer die head | Independent material or functional formulation for each layer | Flexible layer design for project-specific pipe performance |
FAQ
What pipes can this HDPE/PE pipe extrusion line produce?
It can be configured for HDPE water pipe, gas pipe, PE irrigation pipe, HDPE sewer pipe, cable protection pipe and single-layer or multilayer smooth PE pipe production.
What is the typical diameter range of the HDPE pipe machine?
The typical pipe range is 16mm to 1200mm OD. The exact model depends on pipe diameter, wall thickness, pressure class, material grade and required output.
What equipment is included in a complete PE pipe production line?
A complete line can include vacuum loader, drying hopper, single screw extruder, color marking extruder, pipe extrusion die head and mould, vacuum calibration tank, spray cooling tank, laser printer, haul-off machine, cutting machine, pipe stacker and coiler or winder.
How do I choose between pipe stacker and pipe coiler?
Small-diameter PE pipe, irrigation pipe and cable protection pipe are often collected by coiler or winder. Medium and large-diameter HDPE pipe is normally cut to fixed length and transferred by pipe stacker.
What is the difference between single-layer and multilayer HDPE pipe extrusion lines?
The downstream calibration, cooling, haul-off and cutting equipment can be shared. A multilayer line adds one or more co-extrusion single screw extruders and a multilayer die head. ABA production commonly uses recycled PE in the middle layer and virgin PE on both surfaces to reduce material cost.
What affects HDPE pipe machine price?
Main price factors include pipe diameter range, output capacity, extruder size, die head design, cooling length, haul-off structure, cutter type, coiler or stacker selection, laser printer, chiller, voltage and automation level.
