PVC Steel Wire Reinforced Hose Extrusion Line
- Material
- PVC, steel wire
- Pipe / Hose Range
- 12 - 150 mm OD
- Output
- Up to 120 kg/h
PVC steel wire reinforced hose extrusion line for PVC wire reinforced hose, suction hose, discharge hose and industrial PVC hose production.
PVC Steel Wire Reinforced Hose Extrusion Line
PVC Steel Wire Reinforced Hose Extrusion Line produces transparent or colored PVC hose with steel wire reinforcement for suction, discharge and industrial applications.
If the suction hose uses a spiral reinforced structure, it should be evaluated together with PVC Spiral Suction Hose Extrusion Line.
Applications
Technical Features
- Controlled steel wire pitch for vacuum and crush resistance
- Transparent, colored and longitudinal stripe hose configurations
- Integrated extrusion, wire winding, cooling and traction control
- 12 - 150 mm model range with output up to 120 kg/h
Optional Equipment
How to Choose
- Confirm suction or discharge application.
- Define hose ID, wall thickness and flexibility.
- Choose steel wire pitch and winding method.
- Compare with spiral suction hose if a ribbed flexible structure is needed.
Main Equipment and Process
Core units are configured according to pipe material, diameter, layer structure, output target and downstream collection method.

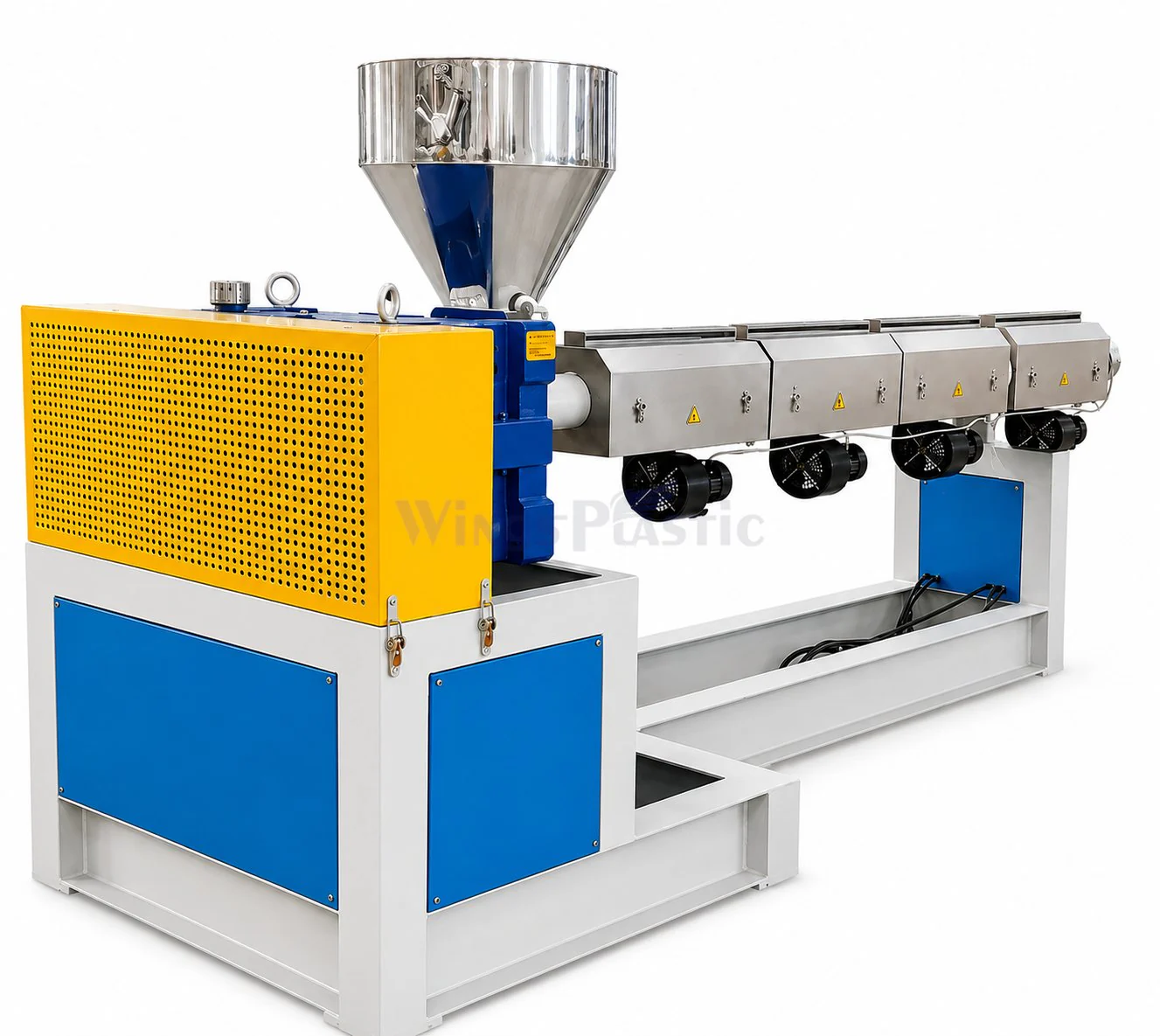

Single Screw Extruder
The main single screw extruder plasticizes the flexible PVC compound and delivers a stable melt flow for continuous steel wire reinforced hose production.

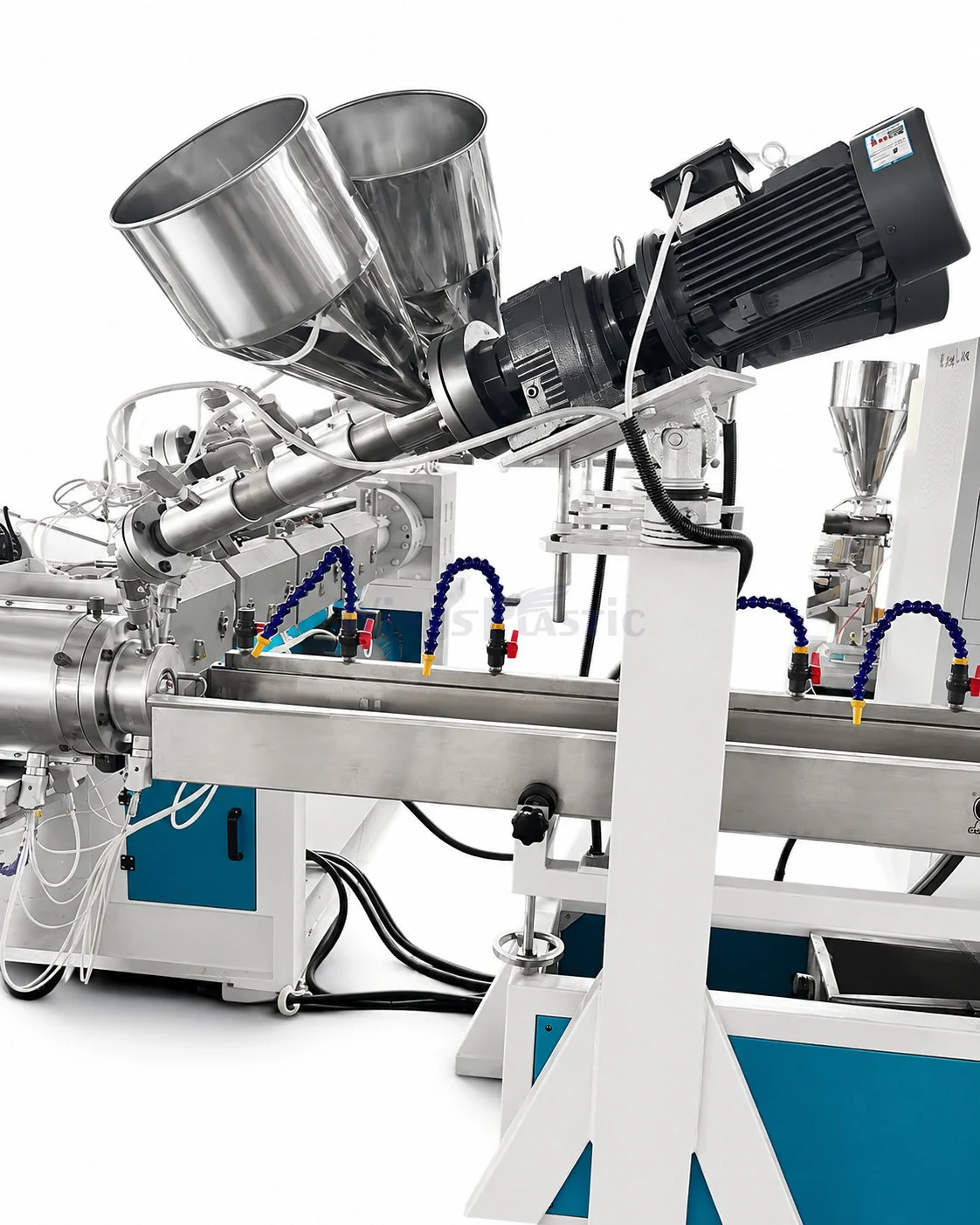

Color Marking Extruder
A compact marking extruder adds a continuous color stripe for product identification, brand differentiation or application coding.

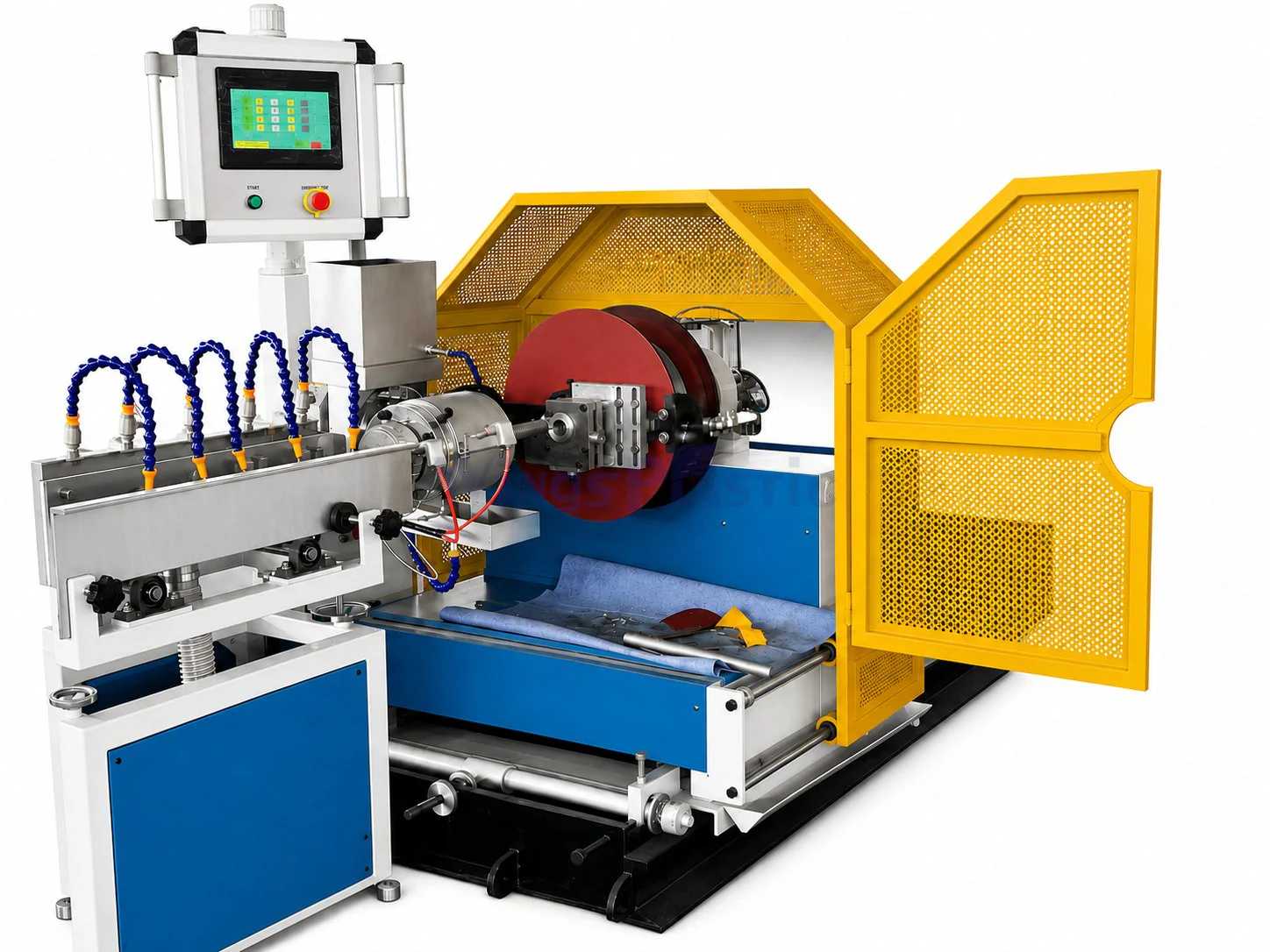

Steel Wire Winding and Forming Unit
The winding unit feeds and positions the steel wire at a controlled pitch so it is embedded uniformly in the PVC hose wall for suction resistance.

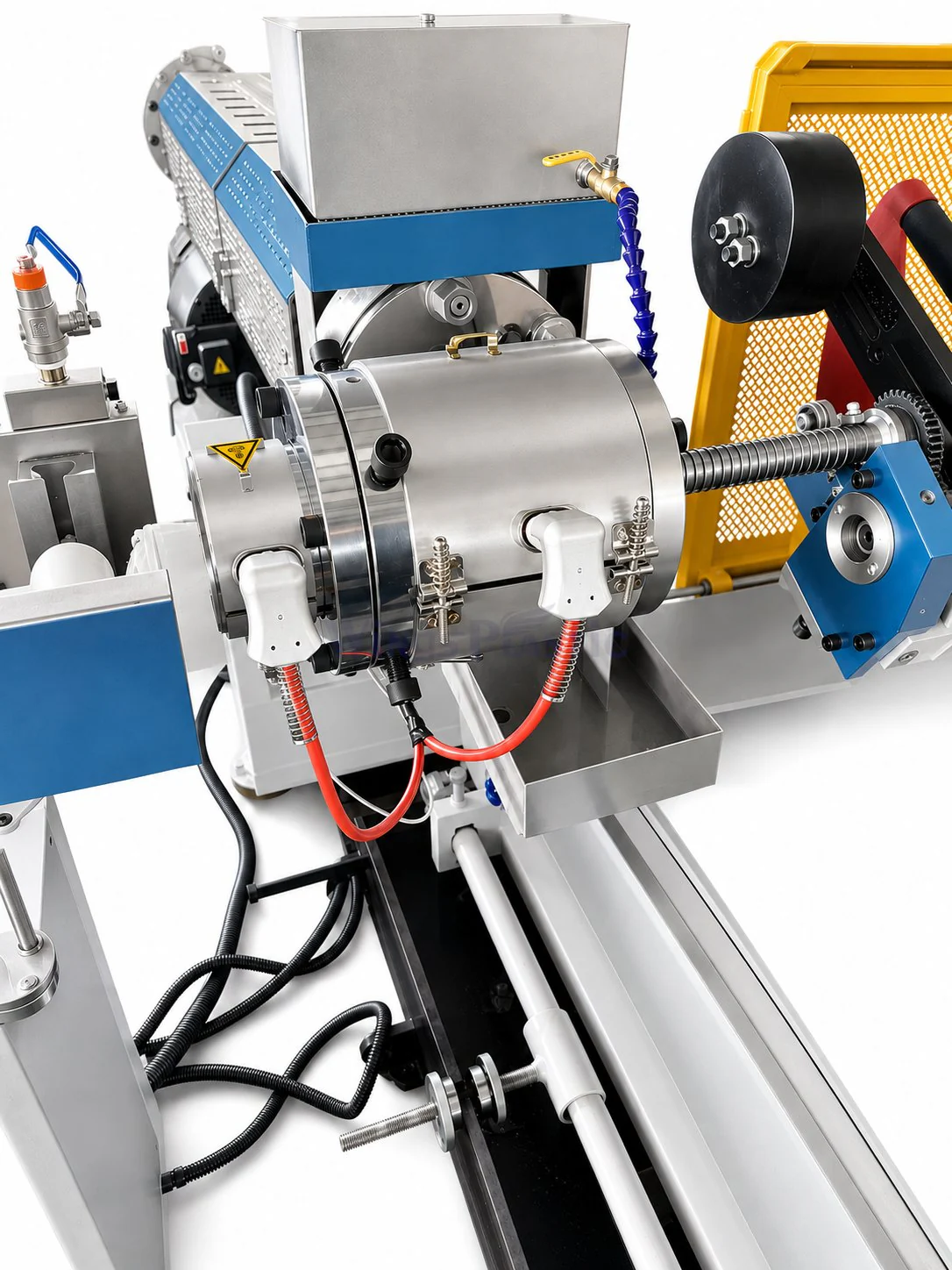

Extrusion Die Head
The hose die head distributes the PVC melt around the steel wire structure and controls hose diameter, wall thickness and surface uniformity.

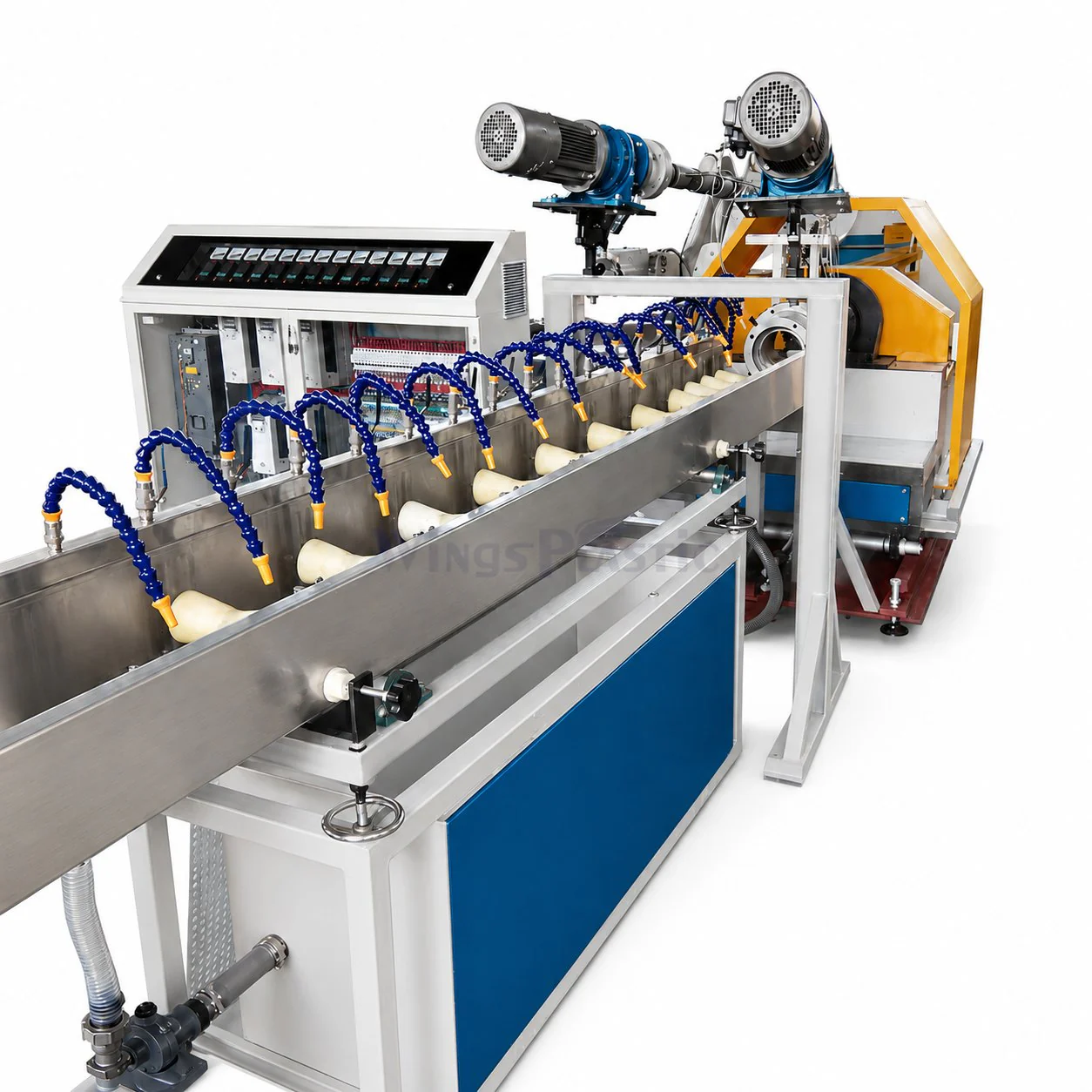

Cooling Tank
The cooling tank stabilizes the reinforced hose after forming while controlled water circulation supports consistent dimensions and a clean transparent surface.

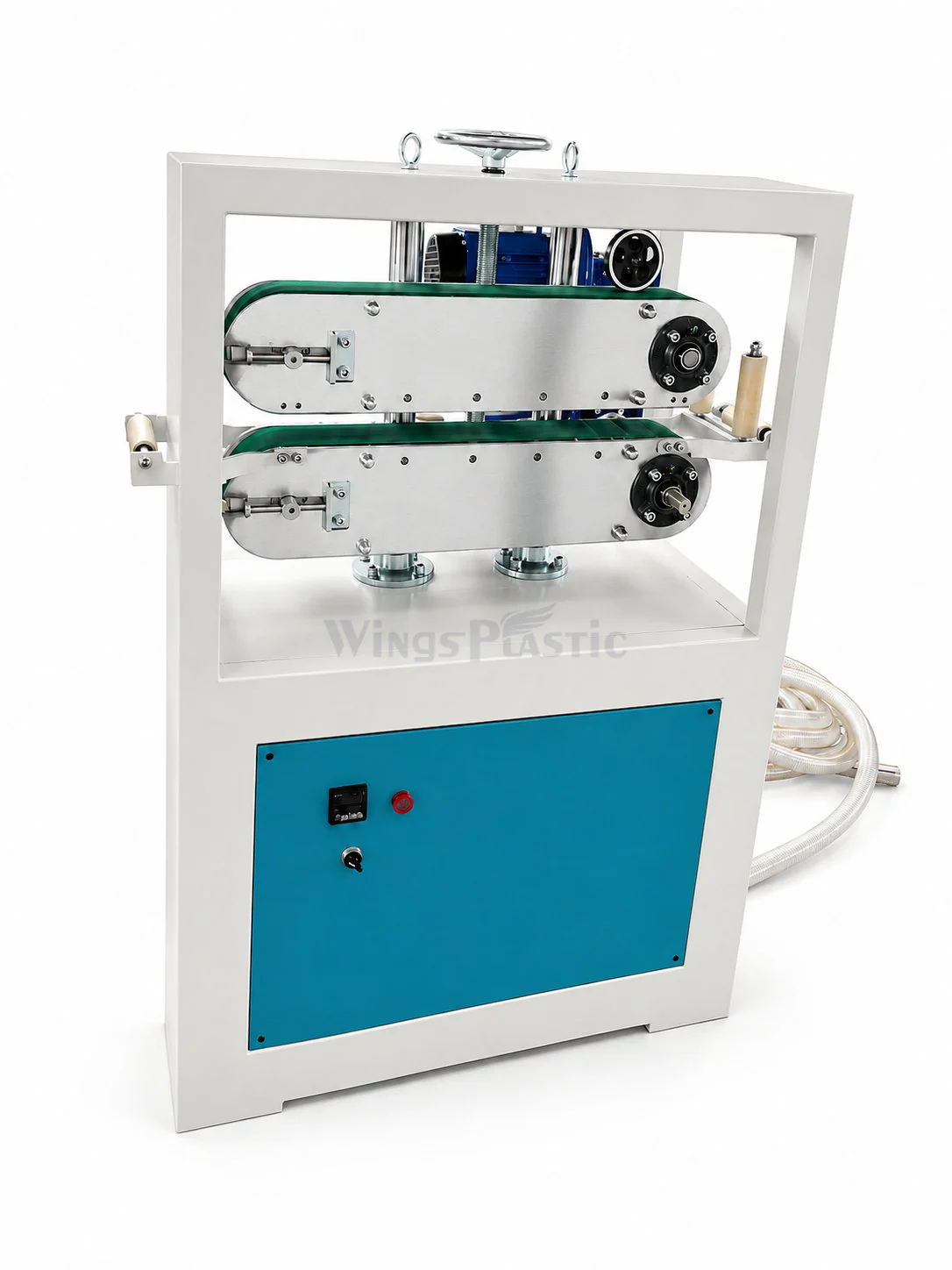

Haul-Off Machine
The haul-off machine synchronizes traction with extrusion and wire winding speed to maintain hose pitch, wall thickness and production stability.
PVC Steel Wire Reinforced Hose Extrusion Line Model Range
| Model | Extruder Type | Hose Diameter OD | Max Output |
|---|---|---|---|
| GSG-45 | SJ45/30 - 11 kW | 12 - 25 mm | 30 kg/h |
| GSG-55 | SJ55/30 - 15 kW | 20 - 50 mm | 50 kg/h |
| GSG-65 | SJ65/30 - 22 kW | 40 - 100 mm | 80 kg/h |
| GSG-75 | SJ75/30 - 37 kW | 75 - 150 mm | 120 kg/h |
FAQ
What information is needed to quote a PVC Steel Wire Reinforced Hose Extrusion Line?
Please provide hose OD and ID, wall thickness, steel wire diameter and pitch, working vacuum or pressure, bending radius, target output, voltage and an existing hose sample when available.
What is the difference between steel wire hose and PVC spiral suction hose?
Steel wire reinforced hose embeds metal wire inside a transparent or colored PVC wall for suction and discharge duty. PVC spiral suction hose instead uses a rigid PVC helix bonded to a flexible PVC body and requires a different dual-extrusion forming process.
Do you provide installation and commissioning support?
We can provide line layout, factory testing, operation guidance and commissioning support according to the final project scope.
Request a Quotation
Send pipe material, diameter range, output target, voltage, final application and optional equipment requirements. We will recommend a practical extrusion line configuration.
