HDPE Pipe Extrusion Production Guide: From Material to Troubleshooting
Stable HDPE pipe production depends on a qualified pipe compound, controlled melt preparation, correct die and calibrator alignment, repeatable cooling, and disciplined inspection. This guide explains the process without treating one machine recipe as universal: final settings must come from the resin supplier's processing window, the applicable pipe standard, the installed tooling and a documented commissioning trial.
1. How HDPE Pipe Extrusion Works

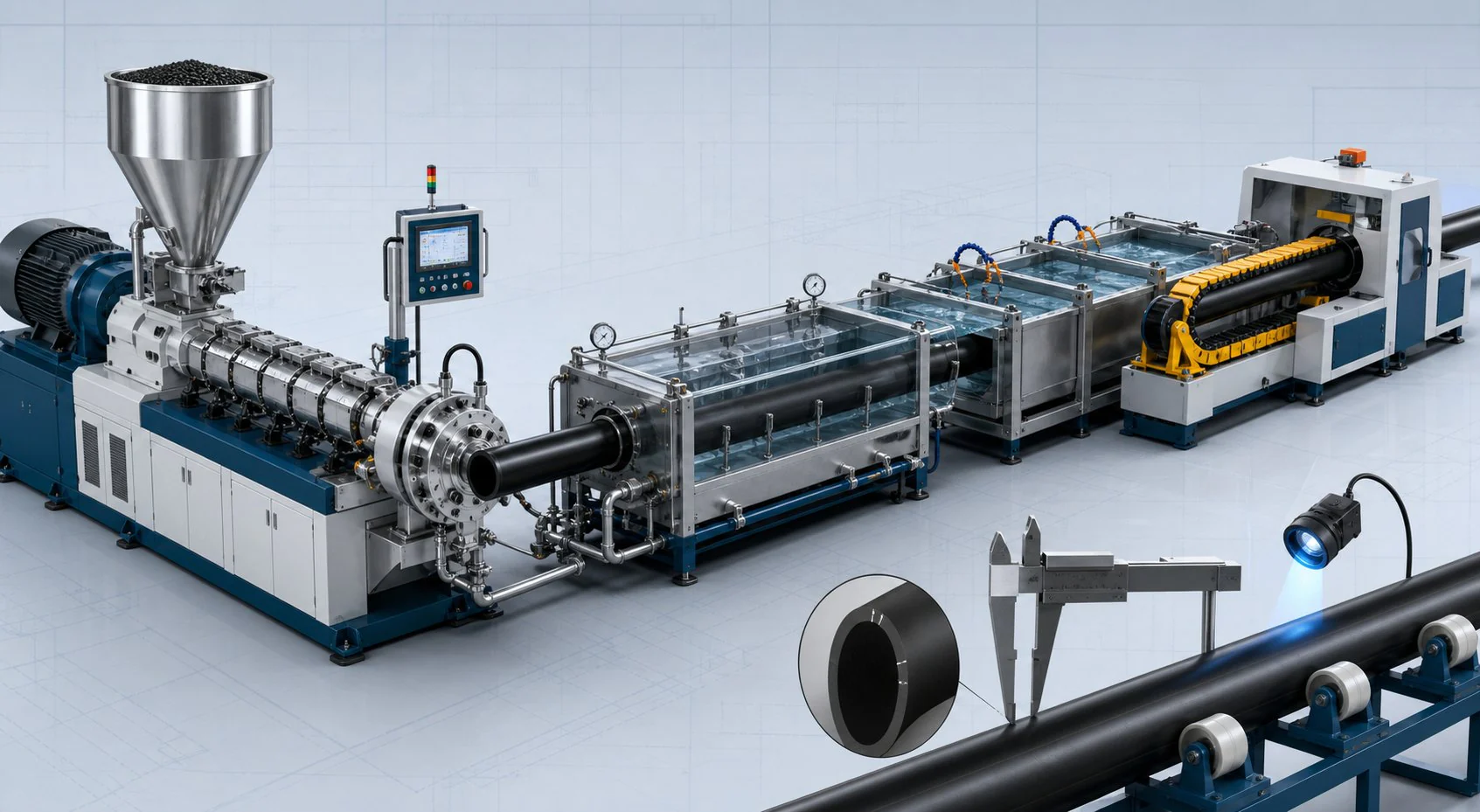

Pellets enter a single-screw extruder, where barrel heat and screw work melt, mix and pressurize the compound. The die distributes the melt into an annular tube. A vacuum calibration sleeve fixes the outside diameter while cooling tanks remove heat. The haul-off controls line speed, and downstream equipment cuts or coils the finished pipe.
Extruder output, haul-off speed and die gap jointly determine wall thickness. Vacuum and cooling stabilize outside diameter; they should not be used to mask unstable output or incorrect tooling.
2. Material Preparation and Traceability
Use a qualified pipe compound
For pressure pipe, use a fully formulated compound approved for the governing product standard. Do not assume that blending natural resin with an arbitrary carbon-black masterbatch produces an equivalent pressure-pipe material. Record the supplier, grade, batch, certificate and storage history.
| Check | Why it matters | Recommended control |
|---|---|---|
| Compound identity | Strength classification and long-term performance depend on the certified formulation. | Verify delivery certificate and lot against the production order. |
| Contamination | Dust, metal, mixed polymers and degraded regrind can create weak points. | Keep silos, conveying lines and magnets clean; follow the product standard for rework. |
| Moisture or condensation | HDPE is not strongly hygroscopic, but surface water can cause bubbles or surface defects. | Keep material sealed and dry; condition cold bags before opening in a humid room. |
| Traceability | Corrective action requires a link from finished pipe to raw material and settings. | Record lot, time window, line, operator and inspection results. |
3. Establishing the Temperature Profile
There is no single correct barrel or die temperature for every PE100 or PE80 compound. Start from the compound supplier's data sheet, then verify actual melt temperature and pressure under load. Displayed heater setpoints are not a substitute for a measured, homogeneous melt.
- Use a gradual profile that feeds consistently and avoids premature softening at the hopper throat.
- Keep adapters and die zones stable enough to prevent freeze-off, drool or long residence-time degradation.
- Change one variable at a time and allow the line to stabilize before judging the result.
- Investigate unexpected melt-temperature or pressure drift before increasing speed.
Published temperature numbers are starting references only. Resin rheology, screw design, throughput, head resistance, pigment package and sensor location all change the working window.
4. Preparing Downstream Equipment
Vacuum calibration tank
Clean the calibration sleeve and water passages, verify seal condition, confirm free drain flow and align the sleeve with the die. Apply only enough vacuum to obtain stable sizing without excessive drag, chatter or residual stress.
Cooling system
Confirm clean nozzles, balanced circumferential flow, adequate heat-exchanger capacity and stable water temperature. Required cooling length is a heat-transfer result, not a fixed value: pipe mass per metre, line speed, inlet melt temperature, ambient conditions and allowable exit temperature all matter.
Haul-off and cutter
Centre the caterpillars, use enough contact pressure to prevent slip without flattening the pipe, and verify that the cutter safely covers the maximum outside diameter and wall thickness.
5. Controlled Startup Procedure
Warm and inspect
Complete the approved heat-soak sequence, confirm guards and interlocks, then check that all zones and utilities are stable.
Start at low output
Rotate the screw only when the material path is ready. Purge safely and observe melt appearance, pressure and drive load.
Form and thread the pipe
Establish a continuous parison, guide it through calibration and cooling, and connect it to the haul-off using the plant's safe threading method.
Synchronize output and speed
Raise extruder output and haul-off speed together while monitoring outside diameter, wall distribution and motor load.
Approve first-off product
Do not release production until dimensions, appearance, marking and required process tests meet the applicable specification.
6. Die Centering, Vacuum Sizing and Cooling
Centre the mandrel and die mechanically before using heater corrections. For large or thick-wall pipe, gravitational sag can require a deliberate die-gap bias, but the amount must be established from the tooling design and measured pipe profile rather than a universal millimetre value.
Because PE continues to crystallize and shrink as it cools, measure outside diameter and ovality at defined locations and after the conditioning time required by the product standard. A hot measurement immediately after the tank is useful for process control but may not be the acceptance value.
7. Defect Troubleshooting
| Symptom | Likely checks | Corrective direction |
|---|---|---|
| Dull or rough surface | Contamination, melt homogeneity, die deposit, calibrator friction, water carry-over | Verify material and melt condition; clean the die and sizing surfaces; stabilize cooling and line speed. |
| Regular surface marks | Sticking or chatter in the calibration sleeve, uneven water film | Inspect sleeve finish, water distribution, vacuum level, lubricant practice and alignment. |
| Bubbles or voids | Surface moisture, volatile contamination, overheating or air entrainment | Protect and condition material, eliminate contamination, and confirm residence time and melt temperature. |
| Wall thickness eccentricity | Die centring, temperature asymmetry, sag, misaligned sleeve or haul-off | Map wall thickness around the circumference; correct mechanical alignment before fine thermal adjustment. |
| Outside-diameter drift | Output or haul-off variation, vacuum instability, cooling change | Trend screw speed, melt pressure, haul-off speed, vacuum and water temperature to find the common disturbance. |
| Ovality or bending | Uneven cooling, excessive clamp pressure, insufficient thermal removal, line misalignment | Balance cooling and supports, verify exit temperature, and reduce deformation at haul-off and stacking. |
| Weak weld lines | Die contamination, poor melt distribution, unsuitable temperature or damaged flow channels | Inspect and clean tooling; verify compound processing and die design before increasing temperature. |
| Premature brittle failure | Wrong compound, contamination, degradation or nonconforming dimensions | Quarantine product, review material traceability and process history, then perform the required laboratory tests. |
8. Production Records and Process Capability
- Compound grade, batch and certificate
- Barrel, adapter and die setpoints plus measured melt temperature
- Screw speed, drive load, melt pressure and output
- Haul-off speed, vacuum, water temperature and flow status
- Outside diameter, wall-thickness profile, ovality and marking checks
- First-off approval, sampling results and corrective actions
Use these records to establish a validated operating window for each compound, diameter and SDR. Statistical trending is more reliable than repeatedly correcting individual readings.
9. Inspection and Product Testing
In-process inspection
- Visual surface, colour and permanent marking
- Outside diameter, minimum wall thickness and ovality at the specified conditioning state
- Continuous wall-thickness monitoring where installed, verified by calibrated manual measurement
Release testing
Test scope and frequency come from the governing product standard and quality plan. They may include hydrostatic strength, elongation at break, oxidation induction time, melt mass-flow-rate comparison, carbon-black dispersion or pigment dispersion, and longitudinal reversion. Do not substitute an online dimensional check for required type, batch-release or process-verification tests.
