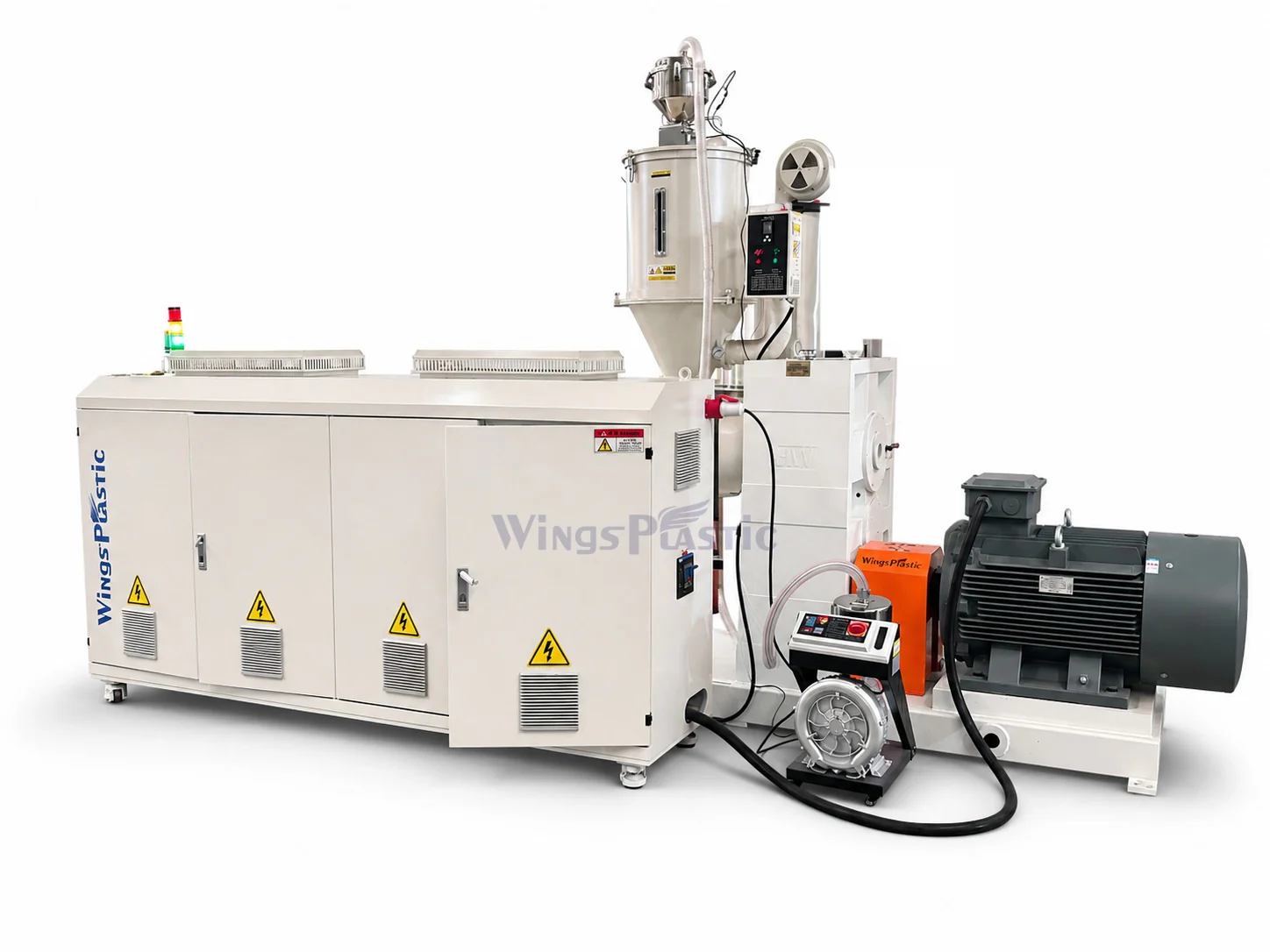

01 Single Screw Extruder for PE Pipe
Material-specific single screw extruder for PE, PPR, PA, TPU and PMMA/PC/ABS pipe or tube lines.
- Quoted output range
- 150–1,000 kg/h
Used in lines
View component
Complete Line Architecture
One Line, Thirteen Machines, One Coordinated System
Start with the finished pipe and process target, then match each machine as one coordinated system. These five groups follow the real process from resin plasticizing and die forming through sizing, cooling, traction, finishing and auxiliary support.
Melt Preparation
Extruders
Material-specific single screw and twin screw extruders selected for resin form, thermal sensitivity and output target.
01

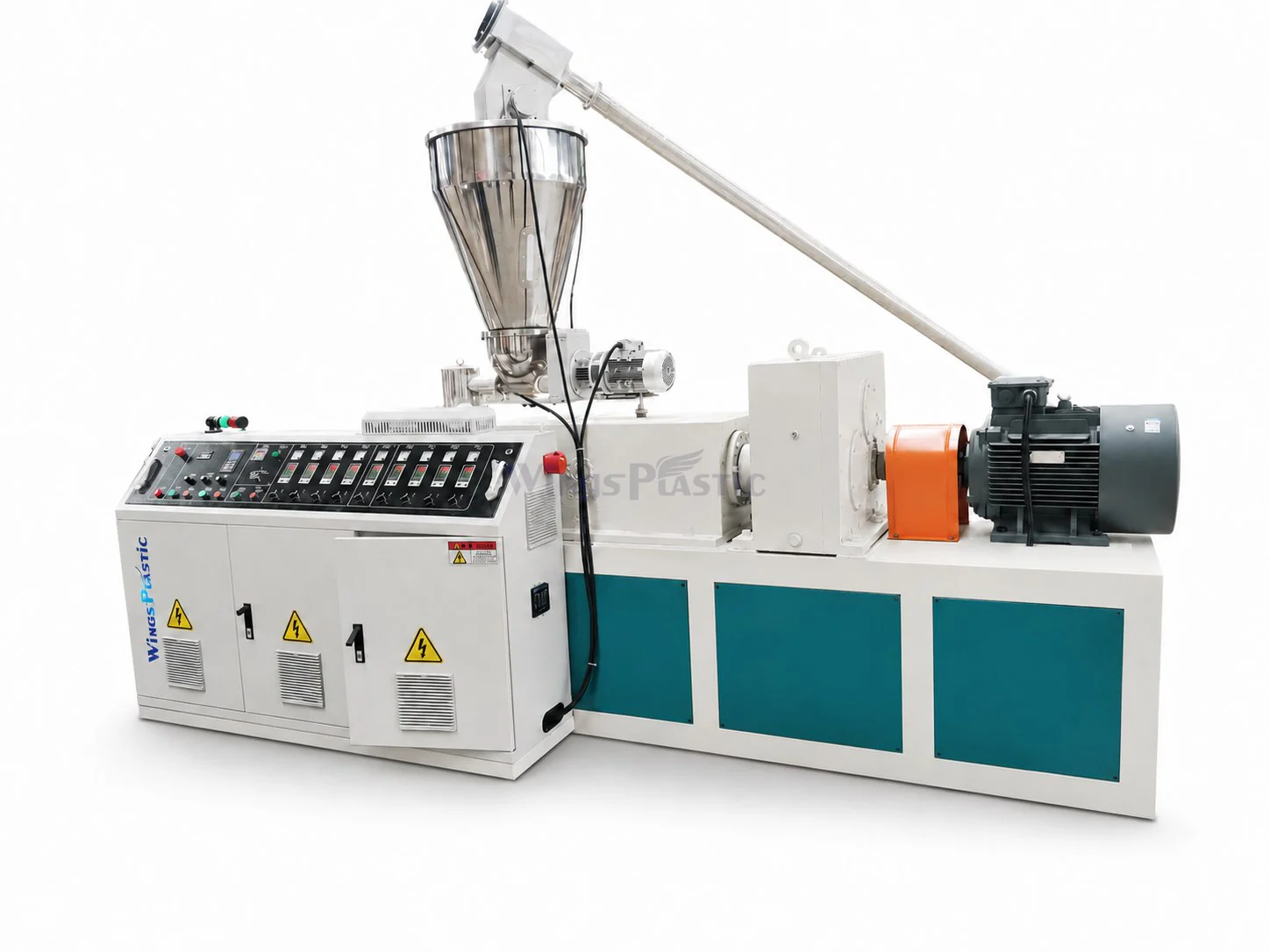

02 Conical Twin Screw Extruder for PVC Pipe
Conical twin screw extruder for PVC and UPVC pipe extrusion with stable PVC powder plasticizing.
- Quoted output range
- 180–400 kg/h
Used in lines
View component Melt Forming
Die & Calibration Tooling
Annular die tooling and vacuum sizing sleeves configured around pipe diameter, wall structure, material flow and calibration requirements.

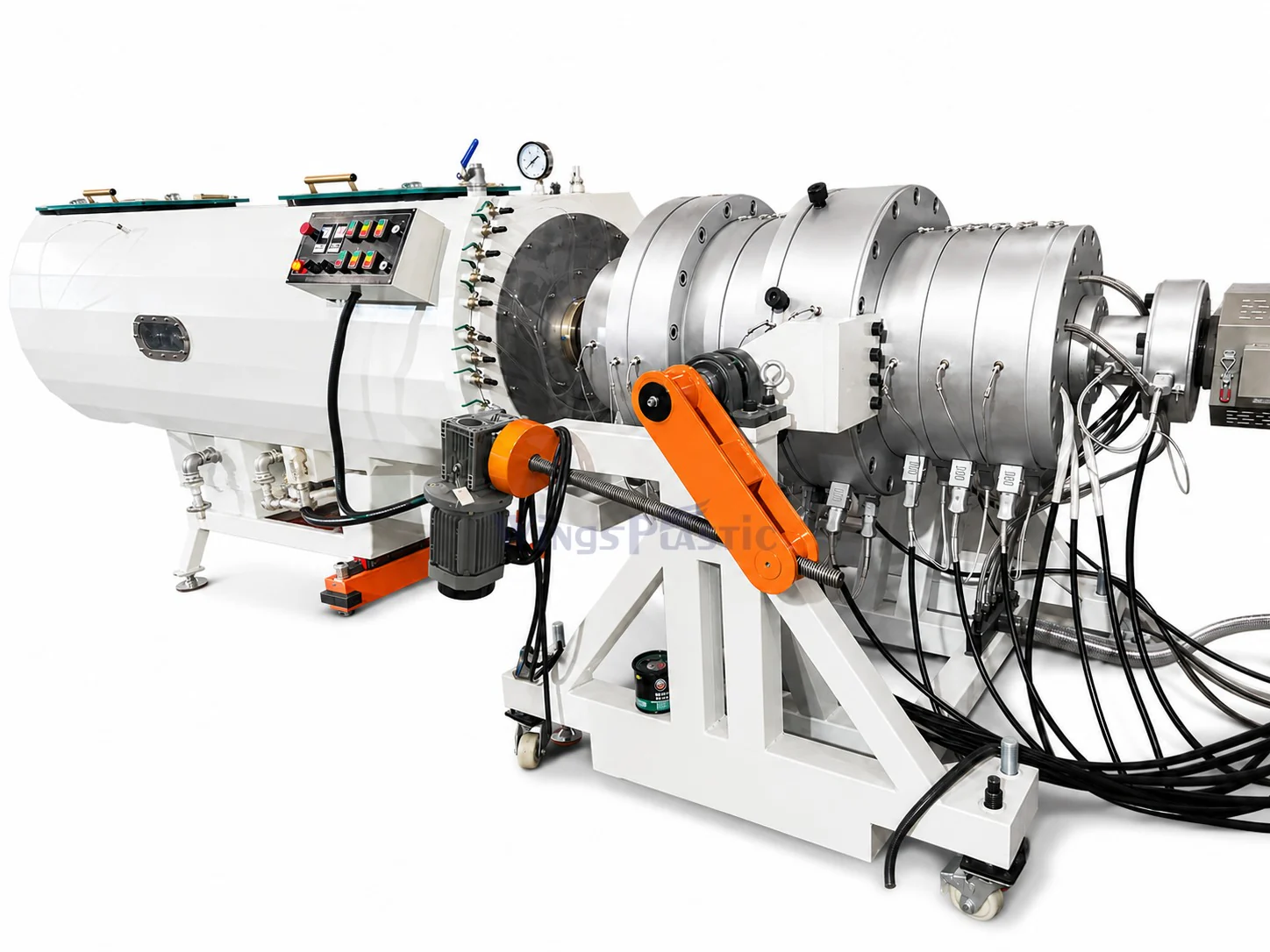

01 Pipe Extrusion Die Head & Mould
Pipe extrusion die head and mould for PVC, PE, PPR and specialty plastic pipe lines.
- Quoted pipe OD
- 12–1,200 mm
02 Pipe Calibrator / Vacuum Sizing Sleeve
Copper or brass sizing sleeve used at the vacuum tank inlet to establish pipe outside diameter and initial surface cooling.
- Quoted pipe OD
- 12–1,200 mm
Used in lines
View component Sizing and Line Speed
Cooling & Traction
Vacuum sizing, staged heat removal and synchronized traction used to stabilize outside diameter, roundness and wall distribution.

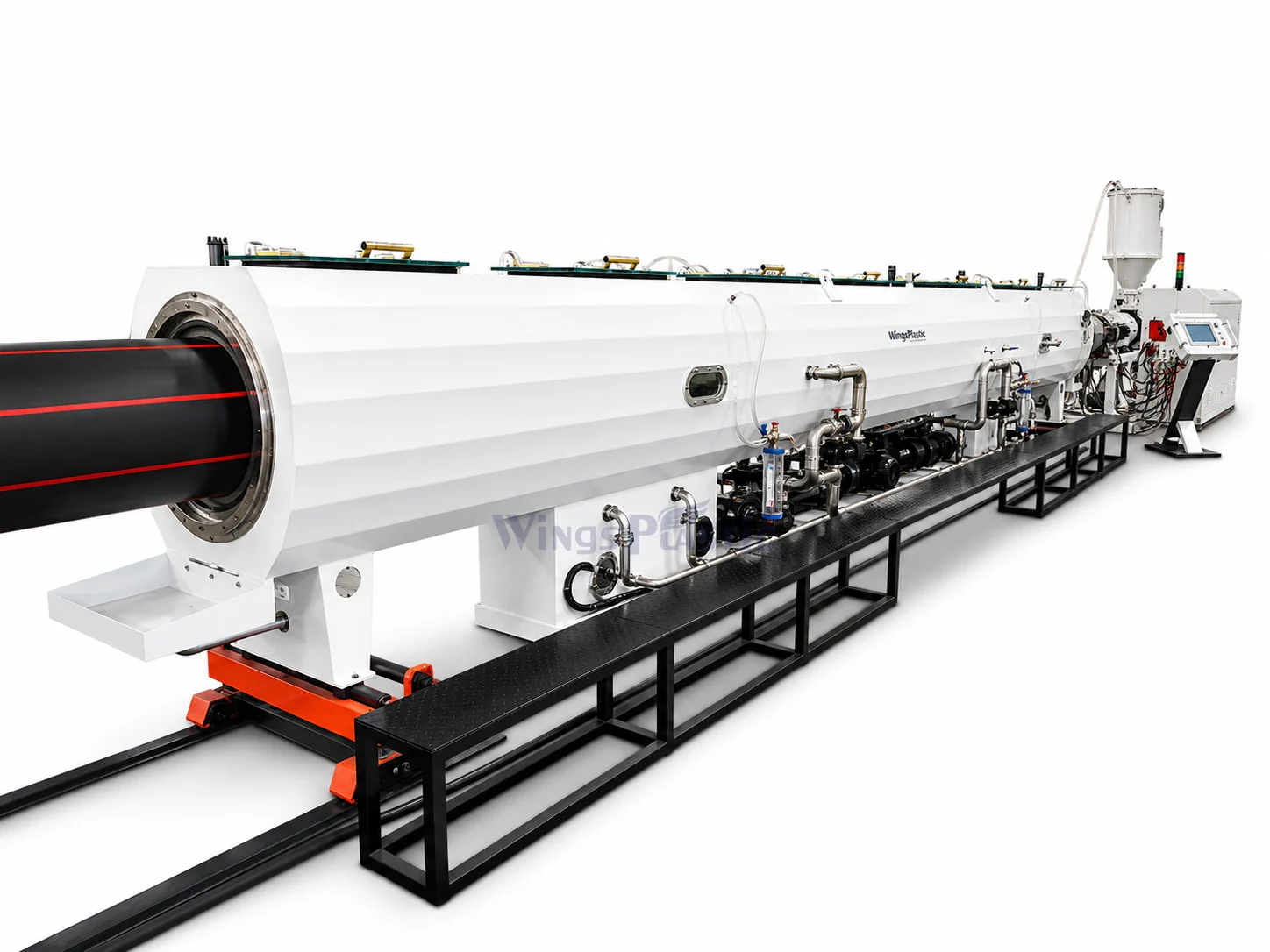

01 Vacuum Calibration Tank
Vacuum calibration tank for pipe sizing, roundness control and stable outside diameter in smooth pipe extrusion.
- Quoted pipe OD
- 12–1,200 mm
Used in lines
View component
02 Cooling Tank for Pipe Extrusion
Spray cooling tank for plastic pipe cooling after calibration in PE, PPR and PVC pipe lines.
- Quoted pipe OD
- 16–1,200 mm
Used in lines
View component
03 Pipe Haul-off Machine
Pipe haul-off machine for synchronized traction in PE, PPR, PVC and hose extrusion lines.
- Quoted pipe OD
- 12–1,200 mm
Product Finishing
Cutting, Winding & Socket Forming
Fixed-length cutting, coiling and socket forming selected for pipe size, line speed and the required delivery format.

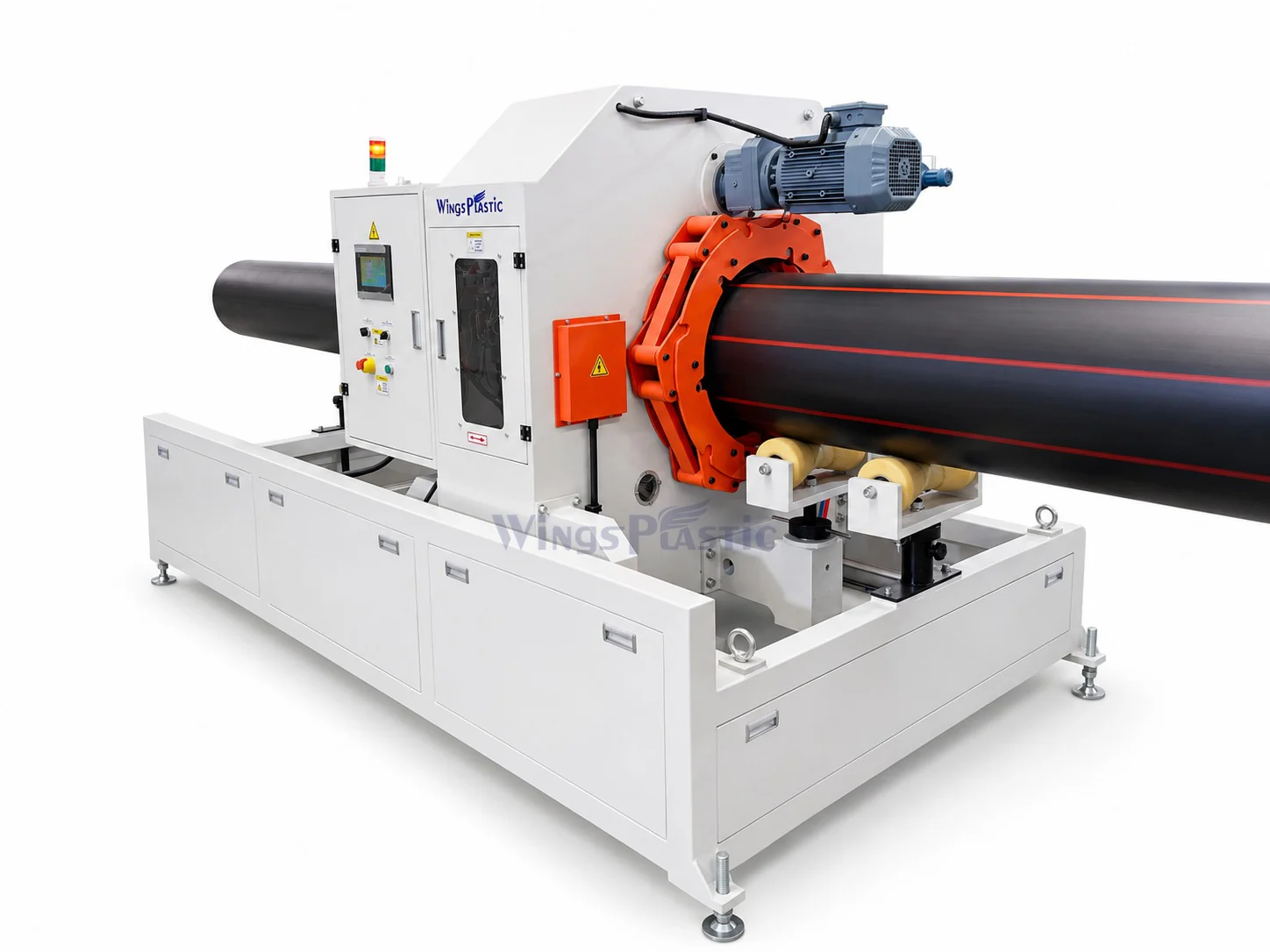

01 Pipe Cutting Machine
Pipe cutting machine for fixed-length PVC, HDPE, PE and PPR pipe production.
- Quoted cutting OD
- 12–1,200 mm

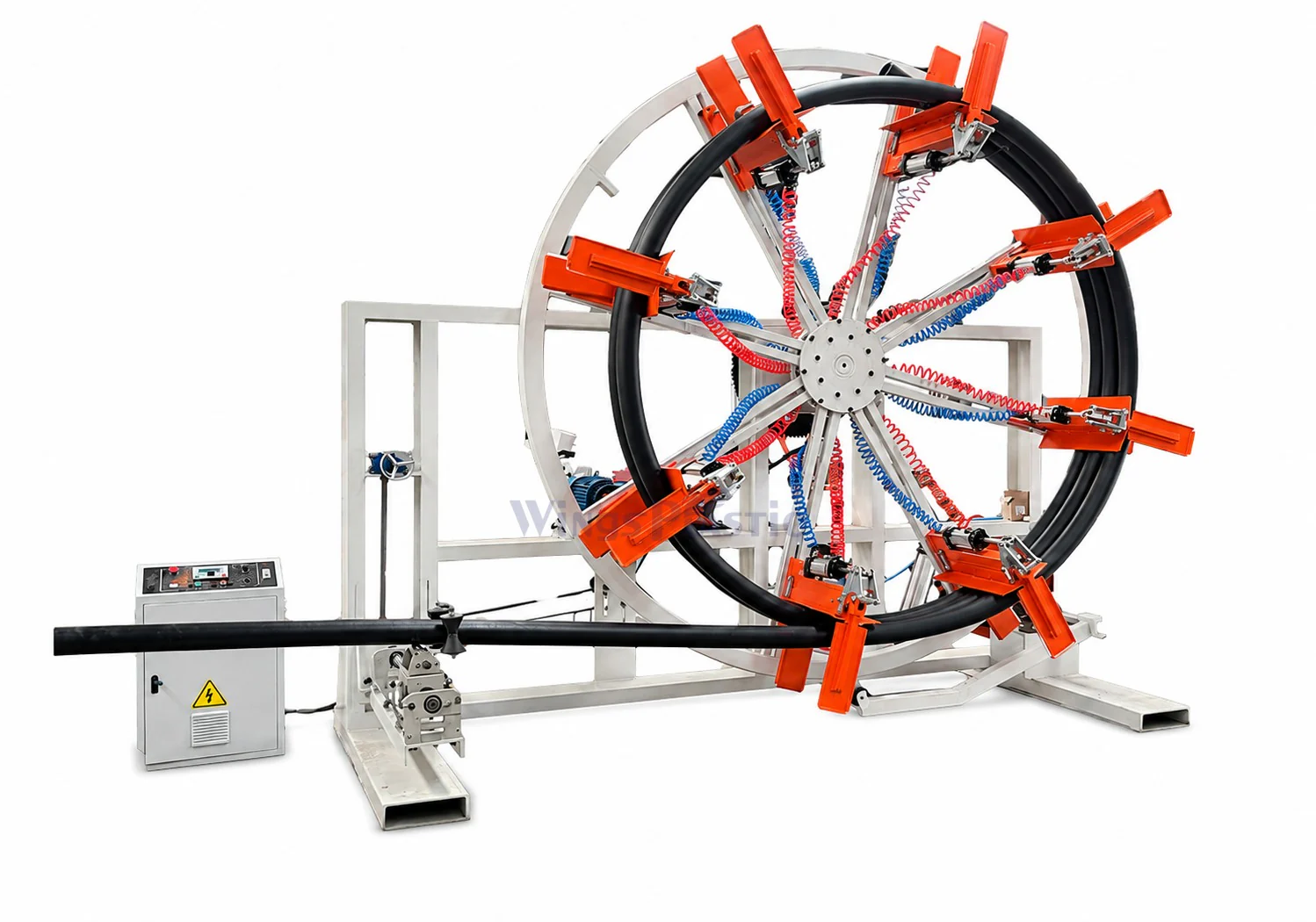

02 Pipe Coiler and Winder
Pipe coiler and winder for small-diameter PE pipe, microduct, TPU tube and PVC hose collection.
- Quoted winding OD
- 16–110 mm

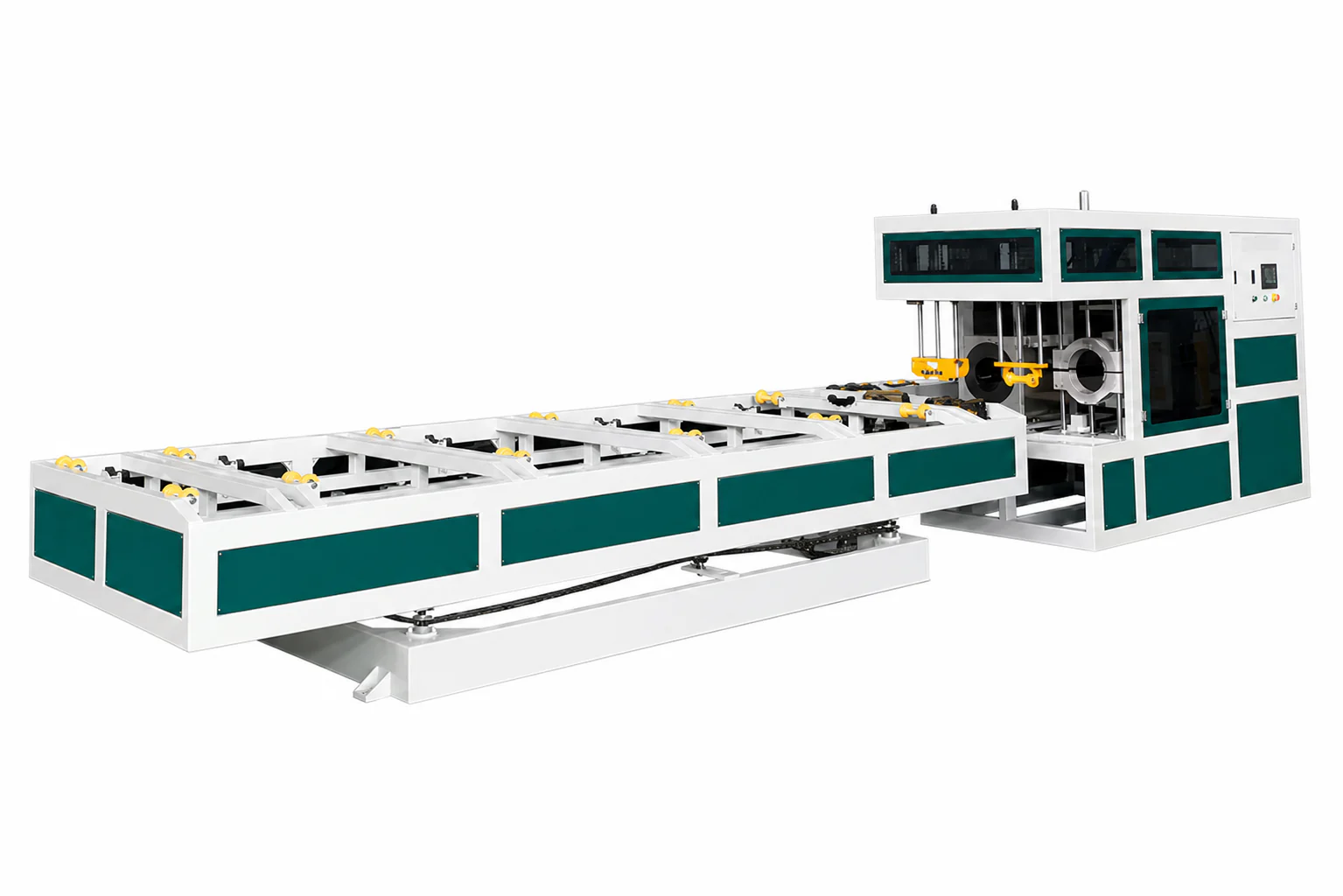

03 PVC Pipe Socket Belling Machine
Automatic PVC pipe socket belling machine for PVC and UPVC drainage, sewer, water and conduit pipes.
- Quoted pipe OD
- 20–315 mm
Used in lines
View component Supporting Systems
Auxiliary & Material Handling
Mixing, reinforcement and production-waste handling equipment that supports the main extrusion process.

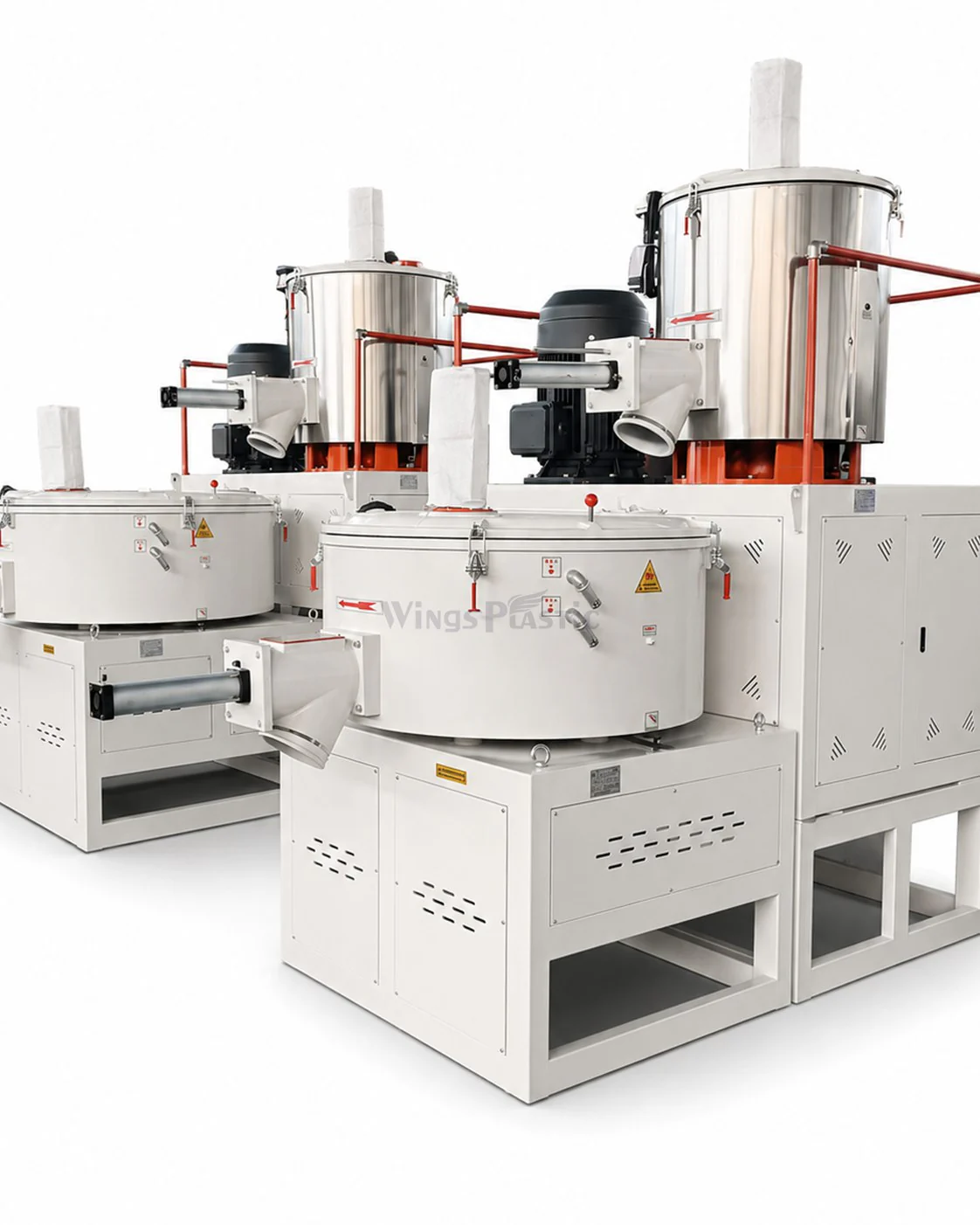

01 PVC Mixing System / PVC Mixer Machine
PVC mixing system with hot mixer and cooling mixer for PVC pipe extrusion line material preparation.
- Quoted throughput
- 180–1,400 kg/h
Used in lines
View component

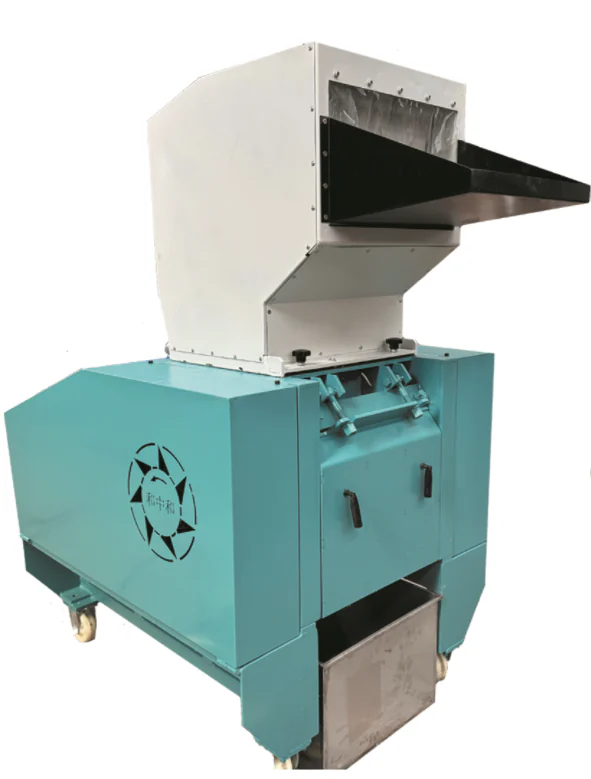

02 Plastic Pipe Crusher Machine
Knife crusher for reducing PVC, HDPE and PPR pipe offcuts and start-up waste before controlled material reuse.
- Quoted motor range
- 7.5–37 kW

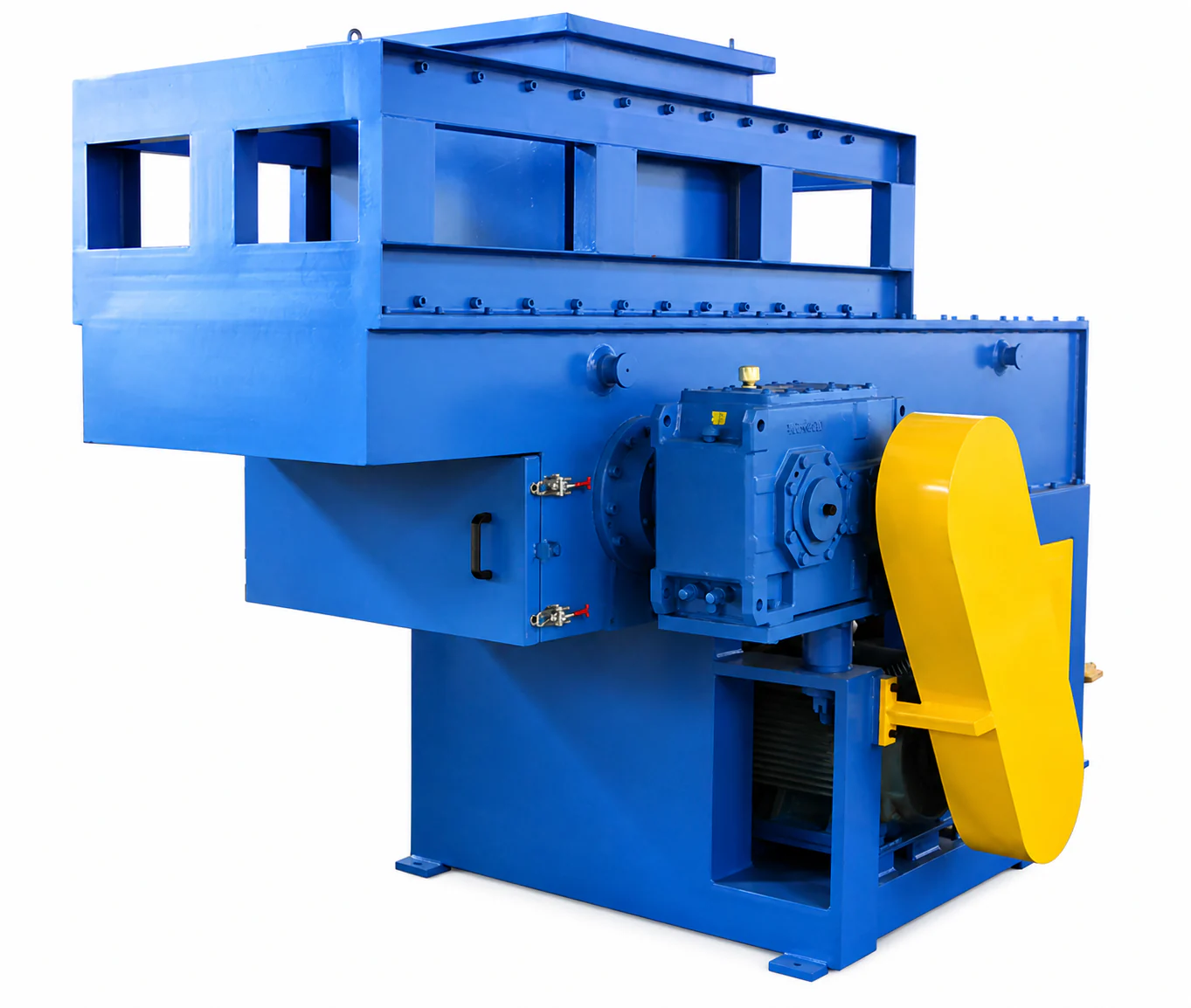

03 Plastic Pipe Shredder Machine
Low-speed twin-shaft shredder for reducing large or thick-wall plastic pipe sections before secondary crushing or controlled recycling.
- Configuration
- Project-specific
One line, one coordinated system
Request a Configuration Need a component matched to your pipe specification?
Share the pipe material, diameter range, output target and existing equipment. We will identify the practical component scope and interfaces.
