03 · Cooling & Traction

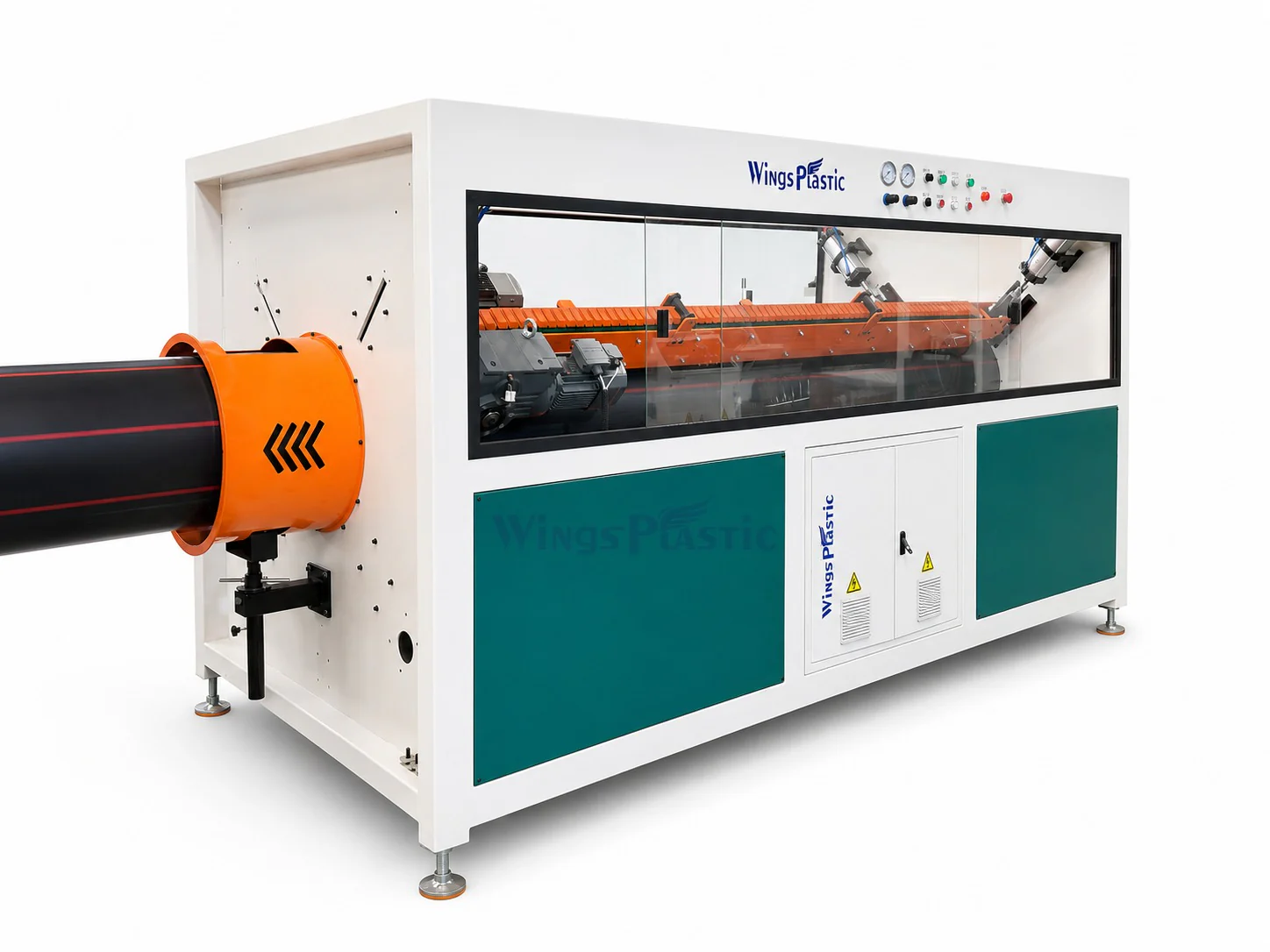

Pipe Haul-off Machine

Pipe haul-off machine for synchronized traction in PE, PPR, PVC and hose extrusion lines.

Selection basis Material · Pipe size · Output · Line speed

Request Component Configuration

Sizing and Line Speed

Role in the Extrusion Line

Vacuum sizing, staged heat removal and synchronized traction used to stabilize outside diameter, roundness and wall distribution.

Where It Is Used

Applications

Pipe traction
Hose traction
Wall thickness stability
Line speed synchronization

What to Specify

Technical Features

Servo traction option
Belt or caterpillar design
Synchronized speed control
Diameter-specific configuration

Quotation-Based Reference

Quoted Model Range

These are representative Wings Plastic configurations recorded in standard equipment sheets. Final values depend on resin, pipe diameter, wall thickness, output and line speed.

Quoted pipe OD range	12–1,200 mm
Traction arrangements	Belt, 2-claw, 3-claw, 4-claw, 6-claw, 8-claw or 10-claw
Quoted line-speed range	0.1–20 m/min
Quoted drive range	3–4.5 kW or multi-motor equivalent
Speed control	Frequency inverter
Contact surface	Rubber belt or rubber blocks

Available Configurations

Belt puller for small pipe and flexible tube
Two-claw configuration for compact rigid-pipe lines
Three- or four-claw configuration for medium and large pipe
Six-, eight- or ten-claw configuration for large-diameter pipe
Line-speed synchronization with cutter or winder

Model data is provided for equipment selection only. Commercial pricing and customer-specific terms are not published.

Project-Based Selection

Configure this component as part of a complete line

Send the resin, pipe diameter, wall thickness, required output and available factory length. We will match the machine specification to the full process.
