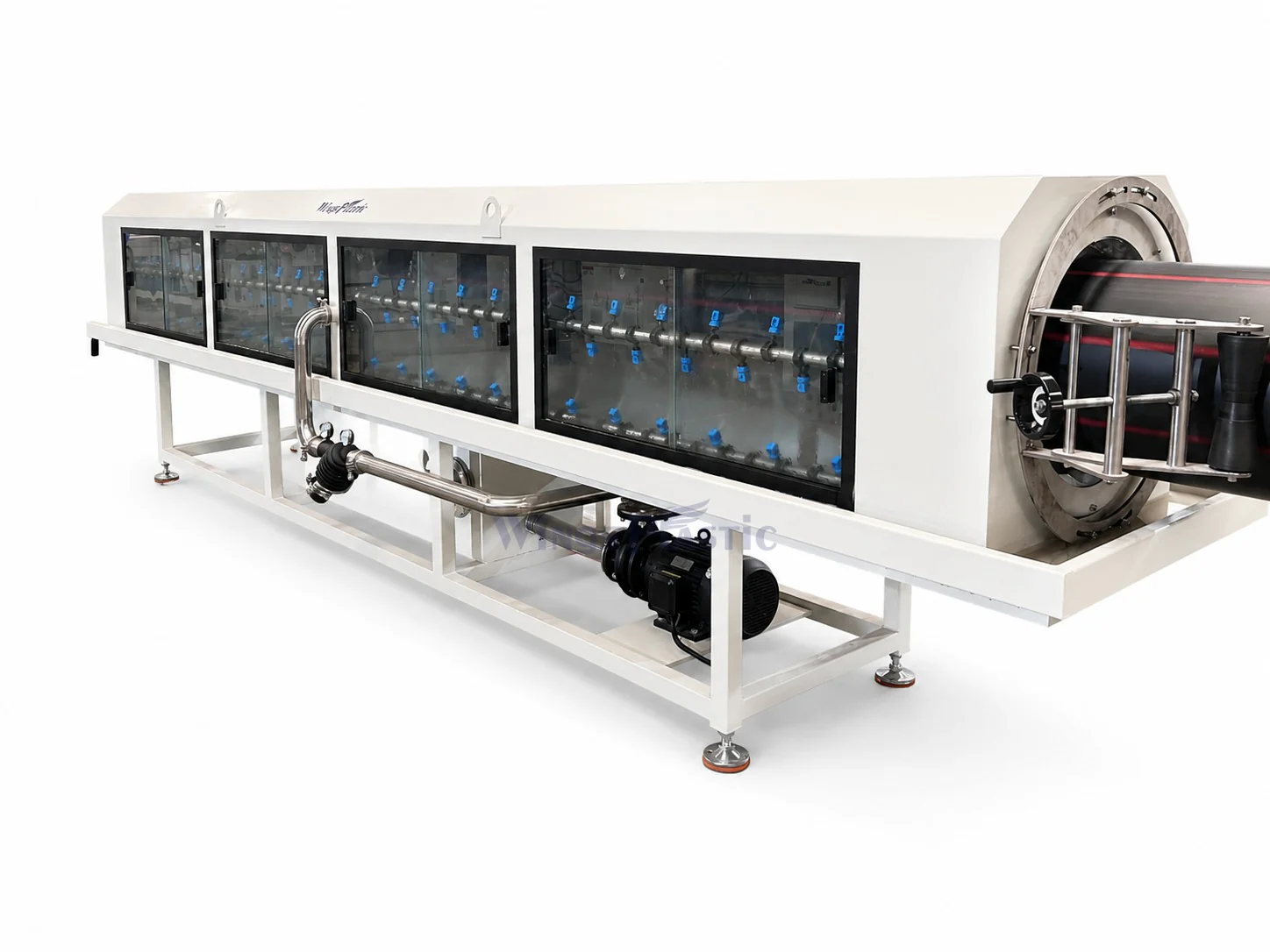

Cooling Tank for Pipe Extrusion
Spray cooling tank for plastic pipe cooling after calibration in PE, PPR and PVC pipe lines.
Selection basis Material · Pipe size · Output · Line speed
Request Component Configuration Role in the Extrusion Line
Vacuum sizing, staged heat removal and synchronized traction used to stabilize outside diameter, roundness and wall distribution.
Applications
- Pipe cooling
- Temperature stabilization
- HDPE pipe production
- PVC and PPR pipe production
Technical Features
- Multi-stage spray cooling
- Adjustable supports
- Water circulation option
- Length selected by pipe speed
Quotation-Based Reference
Quoted Model Range
These are representative Wings Plastic configurations recorded in standard equipment sheets. Final values depend on resin, pipe diameter, wall thickness, output and line speed.
| Quoted pipe OD range | 16–1,200 mm |
|---|---|
| Quoted tank lengths | 6,000 or 9,000 mm |
| Tank quantity | One or two stages |
| Quoted water-pump range | 3–15 kW per stage |
| Cooling method | Recirculating spray water |
| Tank construction | Stainless steel |
Model data is provided for equipment selection only. Commercial pricing and customer-specific terms are not published.
Project-Based Selection
Request Configuration Configure this component as part of a complete line
Send the resin, pipe diameter, wall thickness, required output and available factory length. We will match the machine specification to the full process.
