02 · Die & Calibration Tooling

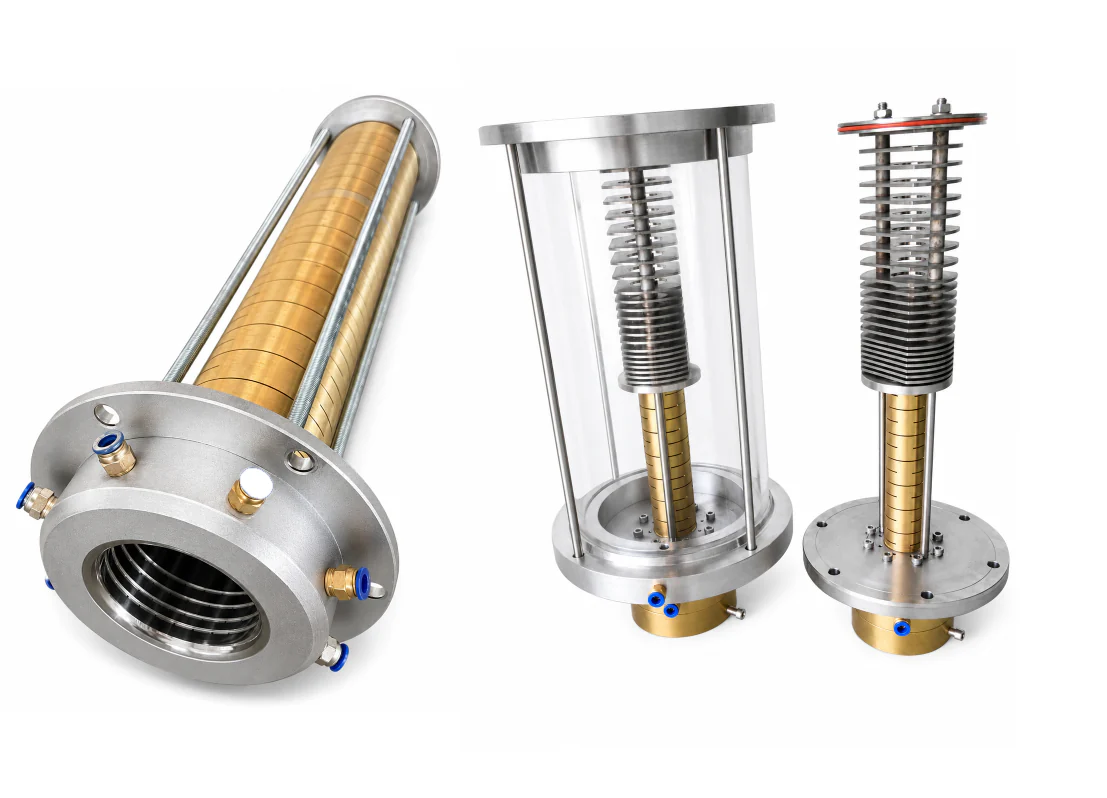

Pipe Calibrator / Vacuum Sizing Sleeve
Copper or brass sizing sleeve used at the vacuum tank inlet to establish pipe outside diameter and initial surface cooling.
Selection basis Material · Pipe size · Output · Line speed
Request Component Configuration Role in the Extrusion Line
Annular die tooling and vacuum sizing sleeves configured around pipe diameter, wall structure, material flow and calibration requirements.
Applications
- PE and HDPE pipe sizing
- PPR pipe calibration
- PVC pipe calibration
- Replaceable diameter tooling
Technical Features
- Selected by finished pipe outside diameter
- Water-film and vacuum sizing interface
- Flanged or quick-change configuration
- Surface finish matched to pipe material
Quotation-Based Reference
Quoted Model Range
These are representative Wings Plastic configurations recorded in standard equipment sheets. Final values depend on resin, pipe diameter, wall thickness, output and line speed.
| Quoted pipe OD range | 12–1,200 mm |
|---|---|
| PE / PPR sleeve material | Copper or brass |
| PVC sleeve material | Stainless steel |
| Tooling basis | One sleeve per finished pipe OD |
| Quoted PE examples | SDR 11, SDR 13.6 and SDR 17 tooling; custom-made for the required pressure class and longitudinal shrinkage |
| Process interface | Vacuum sizing with initial water cooling |
Model data is provided for equipment selection only. Commercial pricing and customer-specific terms are not published.
Project-Based Selection
Request Configuration Configure this component as part of a complete line
Send the resin, pipe diameter, wall thickness, required output and available factory length. We will match the machine specification to the full process.
