PVC/UPVC Rigid Pipe Extrusion Line
- Material
- PVC, UPVC, CPVC
- Pipe / Hose Range
- 16 - 630 mm OD
- Output
- 120 - 800 kg/h
PVC/UPVC rigid pipe extrusion line for water supply, drainage, sewer, electrical conduit, cable protection and pressure pipe production.
PVC/UPVC Rigid Pipe Extrusion Line
PVC/UPVC Rigid Pipe Extrusion Line is the core PVC pipe production system for UPVC water supply pipe, PVC drainage pipe, sewer pipe, electrical conduit and cable protection pipe.
This page covers PVC pipe making machine, PVC pipe production line and PVC pipe manufacturing machine inquiries without splitting every application into a separate product page.
Applications
Technical Features
- PVC powder processing
- Stable pipe OD and wall thickness
- Socket belling option
- Application coverage for water, drainage, sewer and conduit pipe
Optional Equipment
How to Choose
- Confirm pipe application and standard.
- Select extruder and die by diameter and output.
- Add belling machine when socketed pipe is required.
- Plan mixer capacity with extruder output.
Main Equipment and Process
Core units are configured according to pipe material, diameter, layer structure, output target and downstream collection method.
PVC High-Speed Hot and Cold Mixing System
PVC resin, calcium carbonate, stabilizers, lubricants and other additives are blended uniformly in the high-speed hot mixer, then cooled rapidly to prevent agglomeration and prepare a stable dry blend for extrusion.
Conical Twin Screw Extruder
The counter-rotating conical twin screw extruder provides low-temperature, uniform plasticization for heat-sensitive PVC powder. The model and motor power are selected by pipe diameter and output.

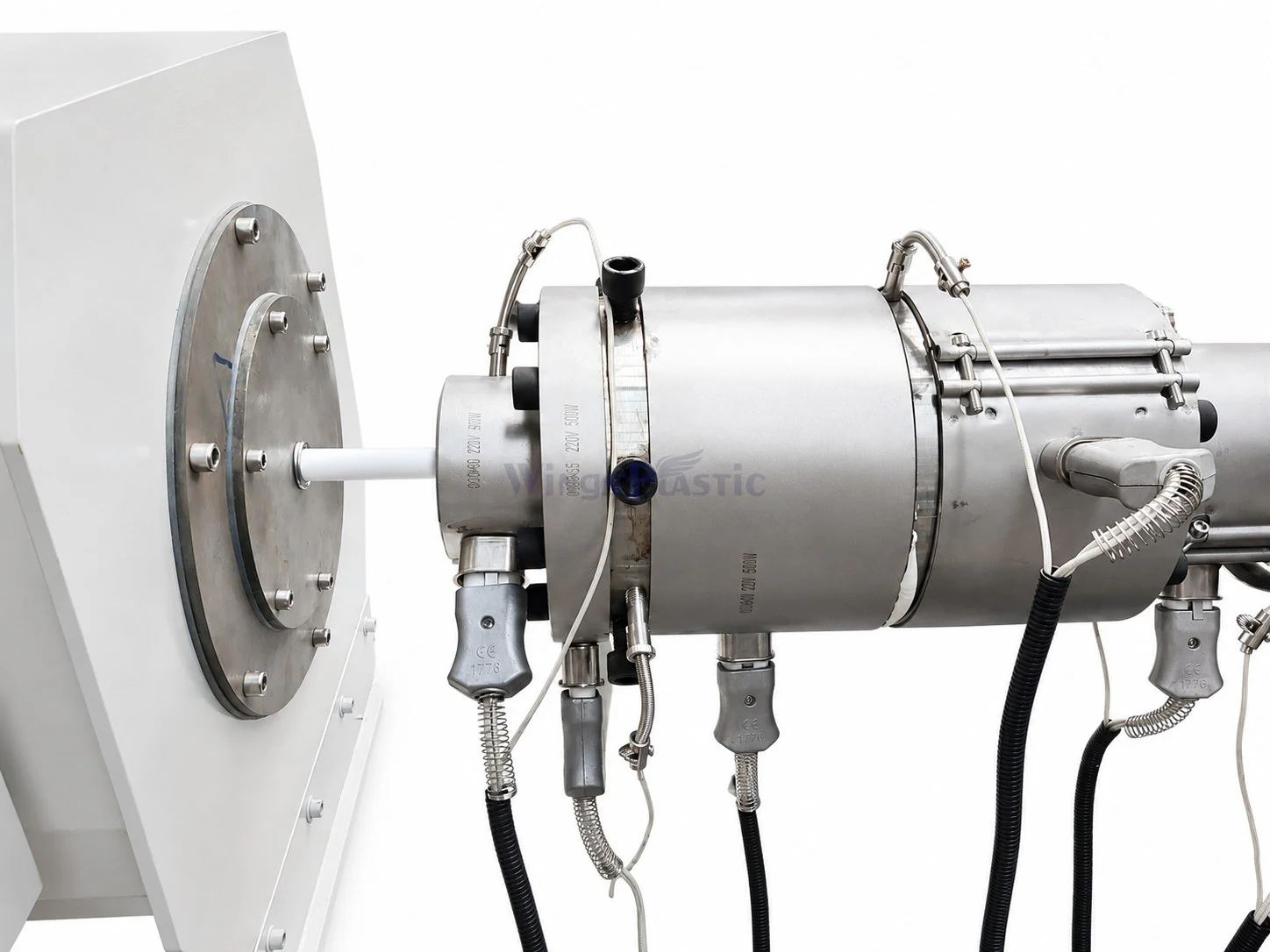

PVC Pipe Extrusion Die Head and Mould
The spiral-flow die head distributes PVC melt evenly to control wall thickness and surface quality. Interchangeable dies and calibrating sleeves cover the required pipe sizes.

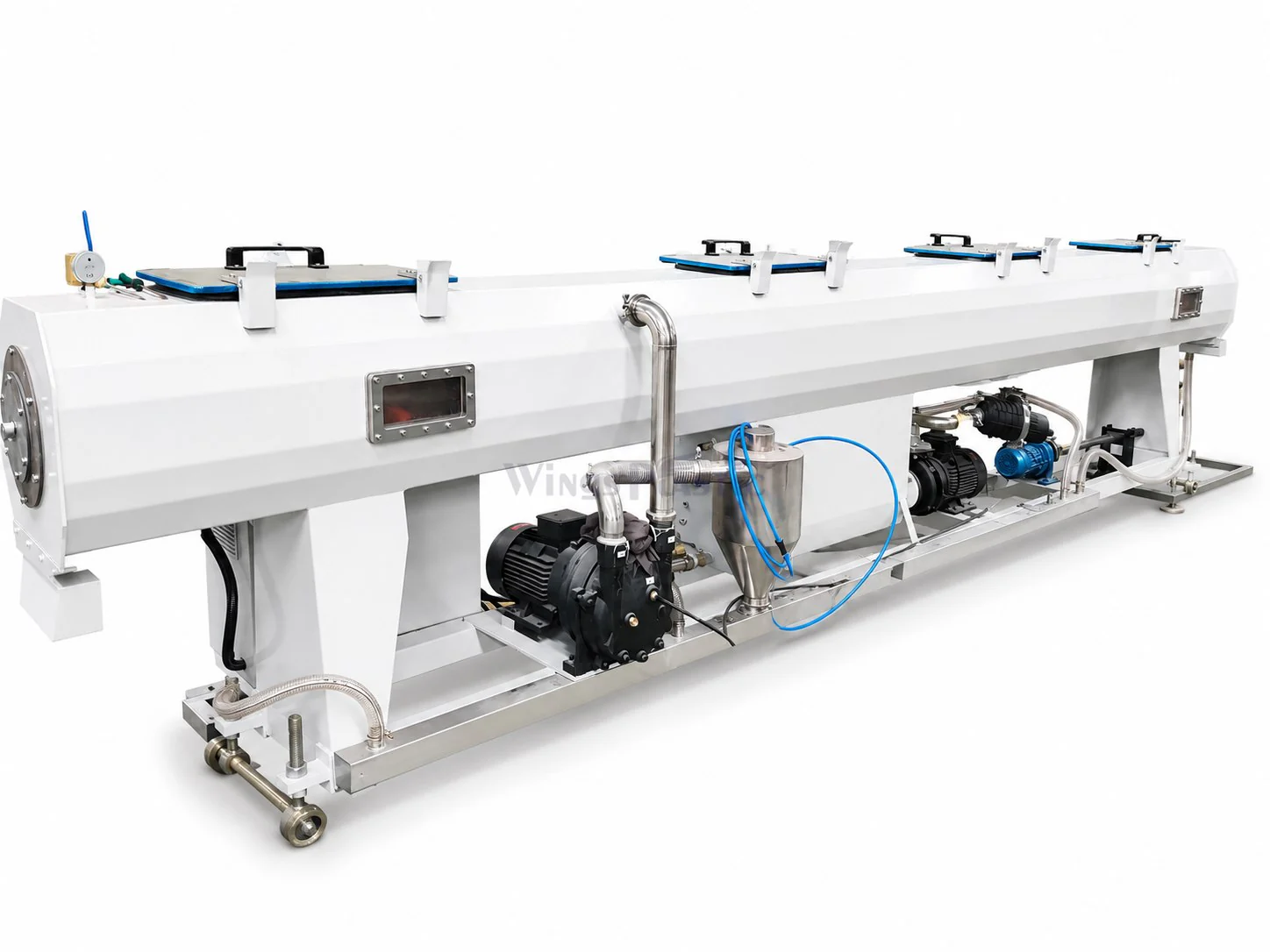

Vacuum Calibration Tank
Vacuum sizing fixes pipe outside diameter and roundness immediately after the die. Controlled water circulation and vacuum maintain stable dimensions and smooth surfaces.

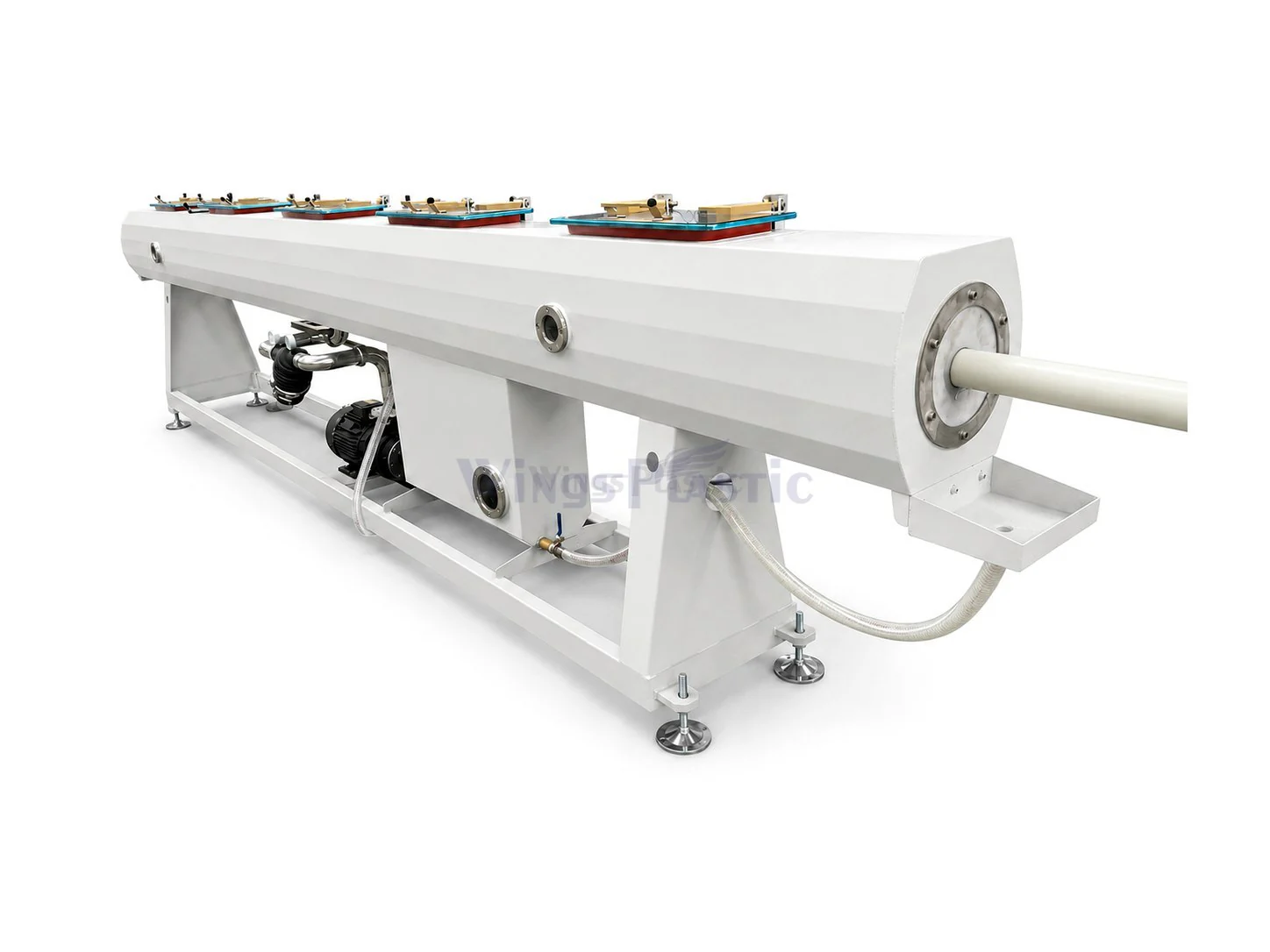

Spray Cooling Tank
The downstream spray cooling tank extends cooling time after calibration so thicker PVC pipe reaches a stable temperature before traction and cutting.

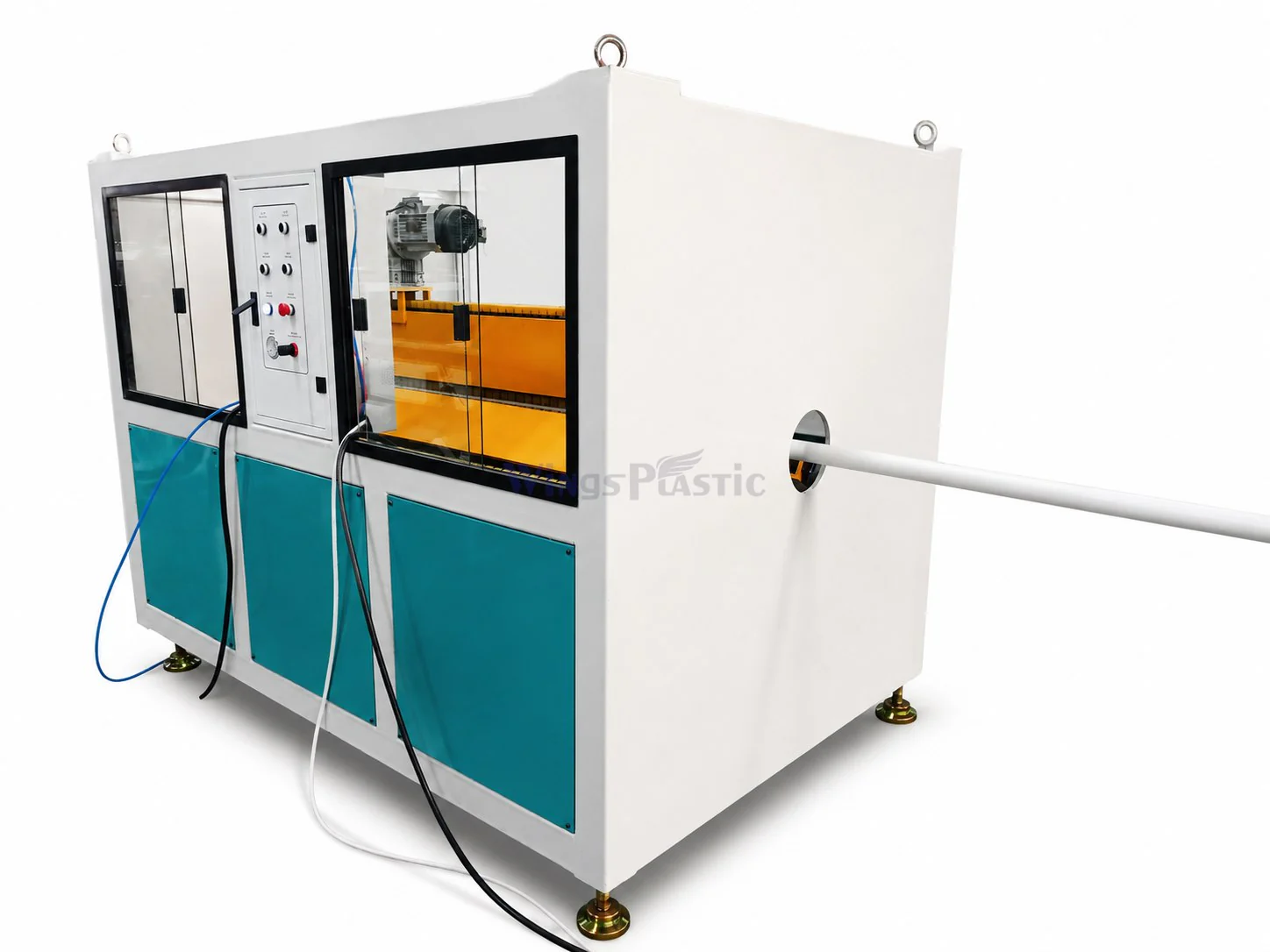

Pipe Haul-Off Machine
Two-, three-, four- or multi-claw haul-off configurations synchronize traction speed with extrusion output while gripping the pipe without deformation.

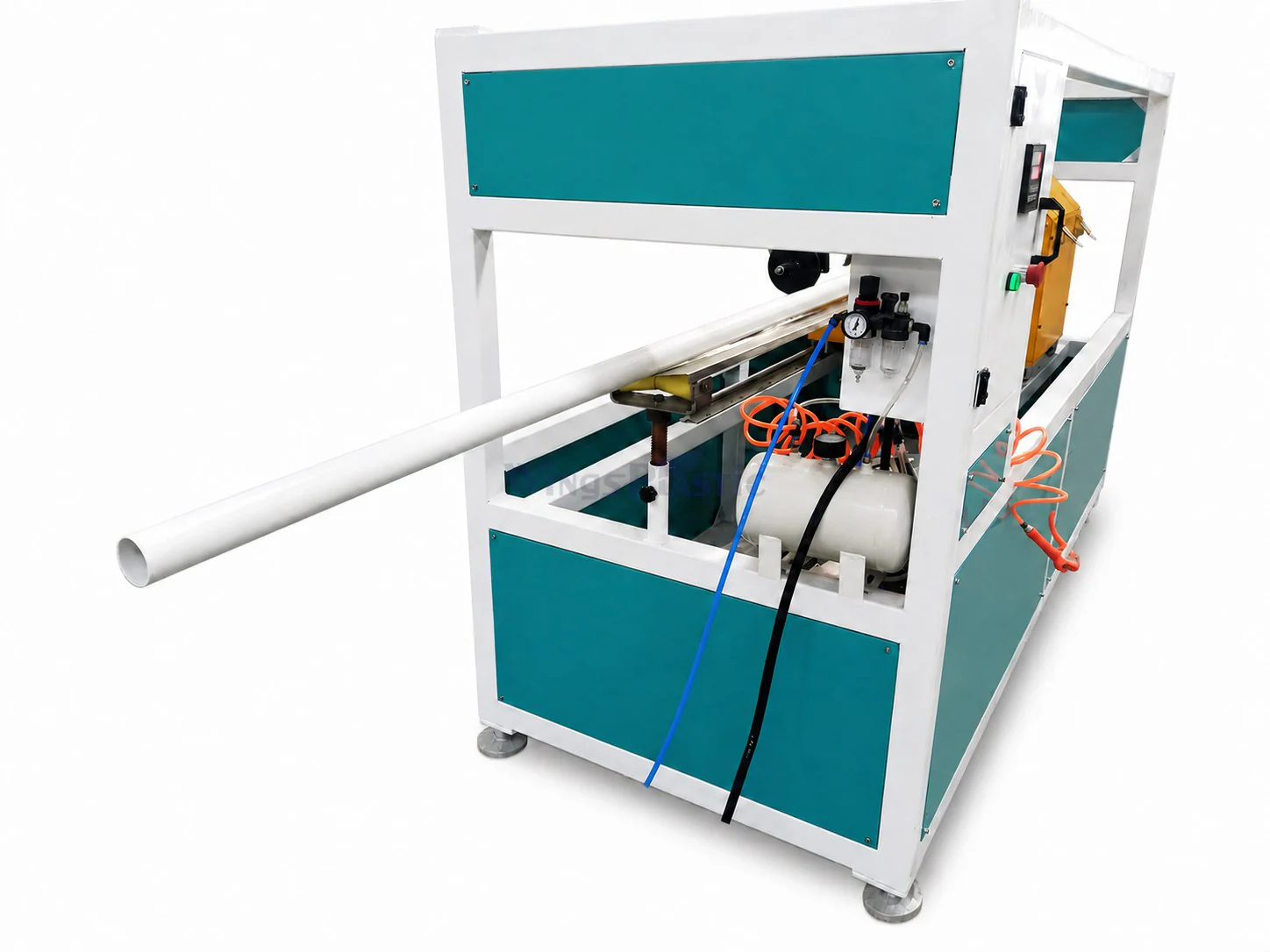

Pipe Cutting Machine
PLC-synchronized cutting provides fixed pipe lengths and clean end faces. Dust-free or planetary cutting is selected according to pipe diameter and wall thickness.

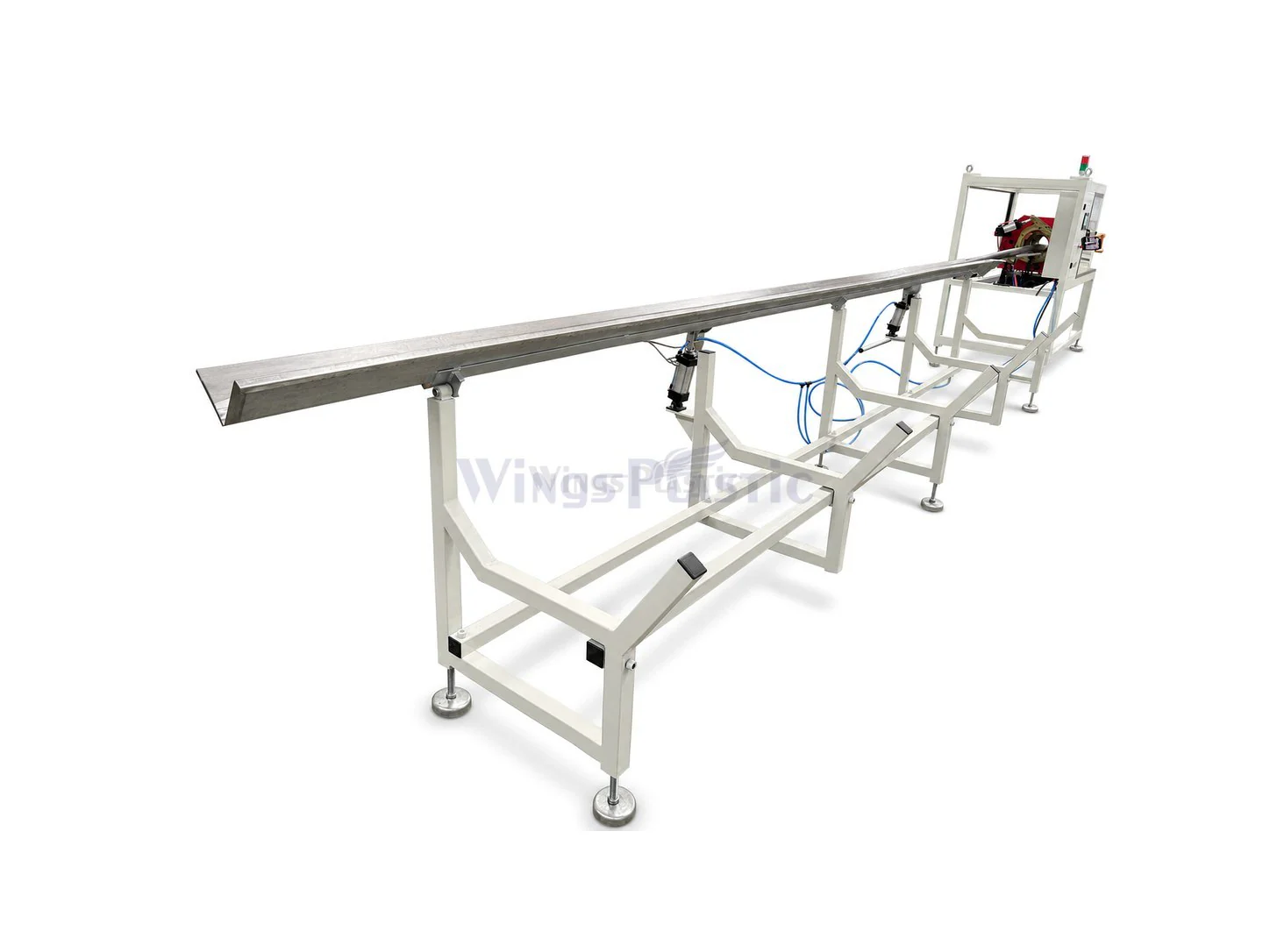

Pipe Stacker
The pneumatic pipe stacker receives fixed-length pipe after cutting and transfers it safely for inspection, bundling and packing.

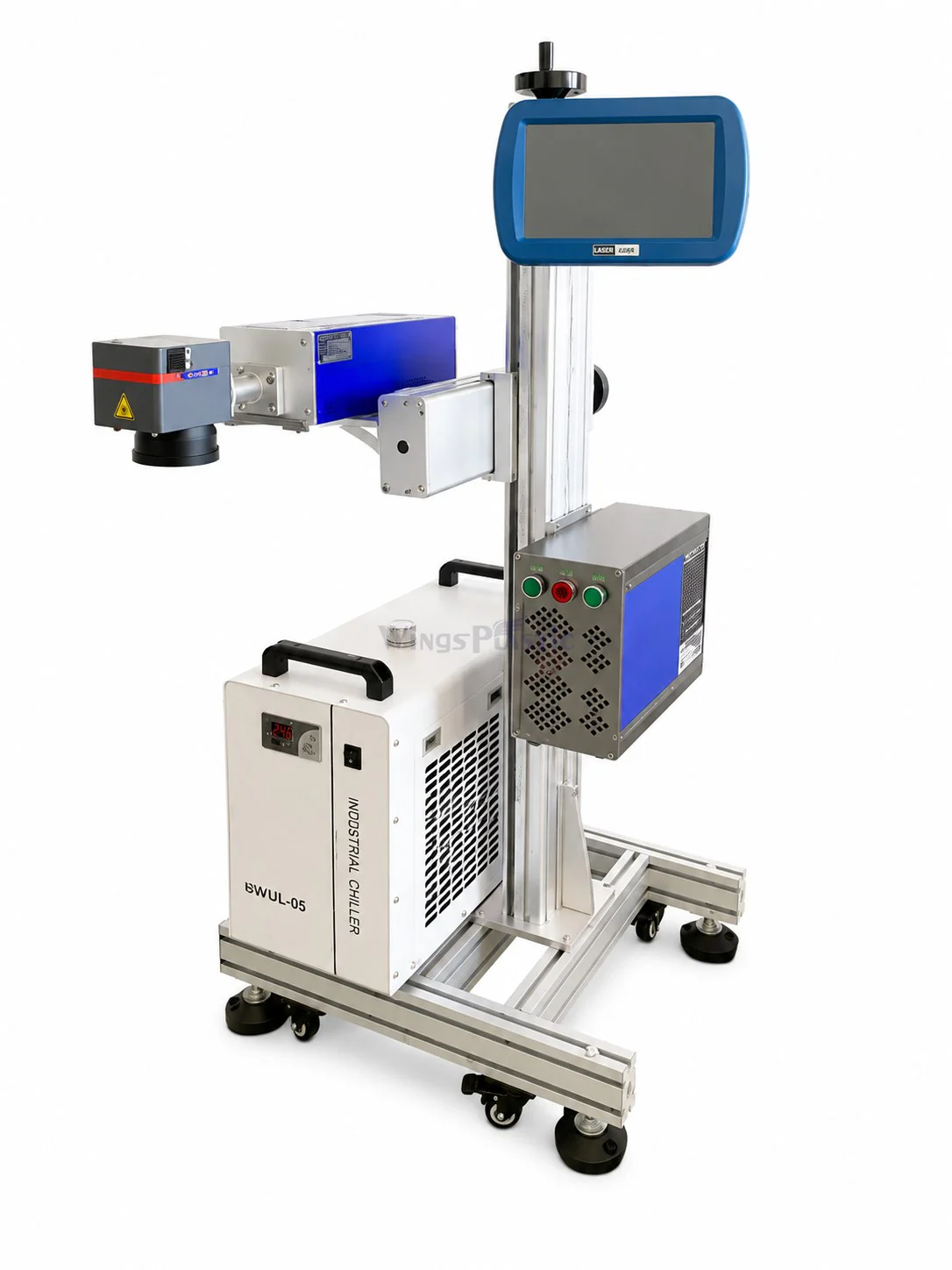

Laser Printer
The online laser printer marks pipe size, standard, batch, date and customer-required identification without consumable ink.
PVC/UPVC Pipe Production Line Machine List
| Machinery Type | Extruder Type | Pipe Diameter OD | Max Output |
|---|---|---|---|
| PVC-32-T | SJZ51/105-22kW | 16-32 mm | 120 kg/h |
| PVC-32-F | SJZ65/132-37kW | 16-32 mm | 220 kg/h |
| PVC-63 | SJZ51/105-22kW | 20-63 mm | 120 kg/h |
| PVC-110 | SJZ55/110-30kW | 20-110 mm | 180 kg/h |
| PVC-160 | SJZ65/132-37kW | 50-160 mm | 220 kg/h |
| PVC-315 | SJZ80/156-55kW | 125-315 mm | 400 kg/h |
| PVC-630 | SJZ92/188-110kW | 25-630 mm | 800 kg/h |
FAQ
What information is needed to quote a PVC/UPVC Rigid Pipe Extrusion Line?
Please provide material, pipe or hose diameter range, wall thickness or layer structure, output target, voltage, final application, factory layout and optional equipment requirements.
Can the line be customized for local pipe standards?
Yes. Extruder, die tooling, calibration, haul-off, cutter, coiler, belling or other downstream units can be configured according to pipe OD, wall thickness, application and output target.
Do you provide installation and commissioning support?
We can provide line layout, factory testing, operation guidance and commissioning support according to the final project scope.
Request a Quotation
Send pipe material, diameter range, output target, voltage, final application and optional equipment requirements. We will recommend a practical extrusion line configuration.
