PVC Spiral Suction Hose Extrusion Line
- Material
- Flexible PVC body, rigid PVC spiral
- Pipe / Hose Range
- 13 - 200 mm ID
- Output
- Up to 200 kg/h
Complete PVC spiral suction hose extrusion line for co-extruding a rigid PVC reinforcement helix with a flexible PVC hose wall for pumping, irrigation, discharge and industrial conveying.
PVC Spiral Suction Hose Extrusion Line
The PVC Spiral Suction Hose Extrusion Line uses two independently controlled single screw extruders: one plasticizes flexible PVC for the hose body, while the second supplies rigid PVC for the continuous reinforcing spiral.
This page is organized for production-line buyers and focuses on equipment integration, model selection, material control, cooling capacity and final hose requirements for a complete factory quotation.
Applications
Technical Features
- Independent soft and rigid PVC plasticizing with right-angle dual extruders
- Adjustable rigid spiral pitch, profile and bonding pressure
- Three-axis rotary forming adjustment with corrosion-resistant spring tooling
- Modular 304 stainless steel cooling line configured by hose diameter and speed
- 13 - 200 mm model range with output up to 200 kg/h
Optional Equipment
How to Choose
- Confirm whether the product uses a rigid PVC spiral or embedded steel wire reinforcement.
- Define hose ID, wall thickness, rigid spiral profile and pitch.
- Provide the required vacuum, working pressure, bending radius and conveying medium.
- Send a hose sample or section drawing for non-standard structures.
Main Equipment and Process
Core units are configured according to pipe material, diameter, layer structure, output target and downstream collection method.
Separate Soft and Rigid PVC Feeding

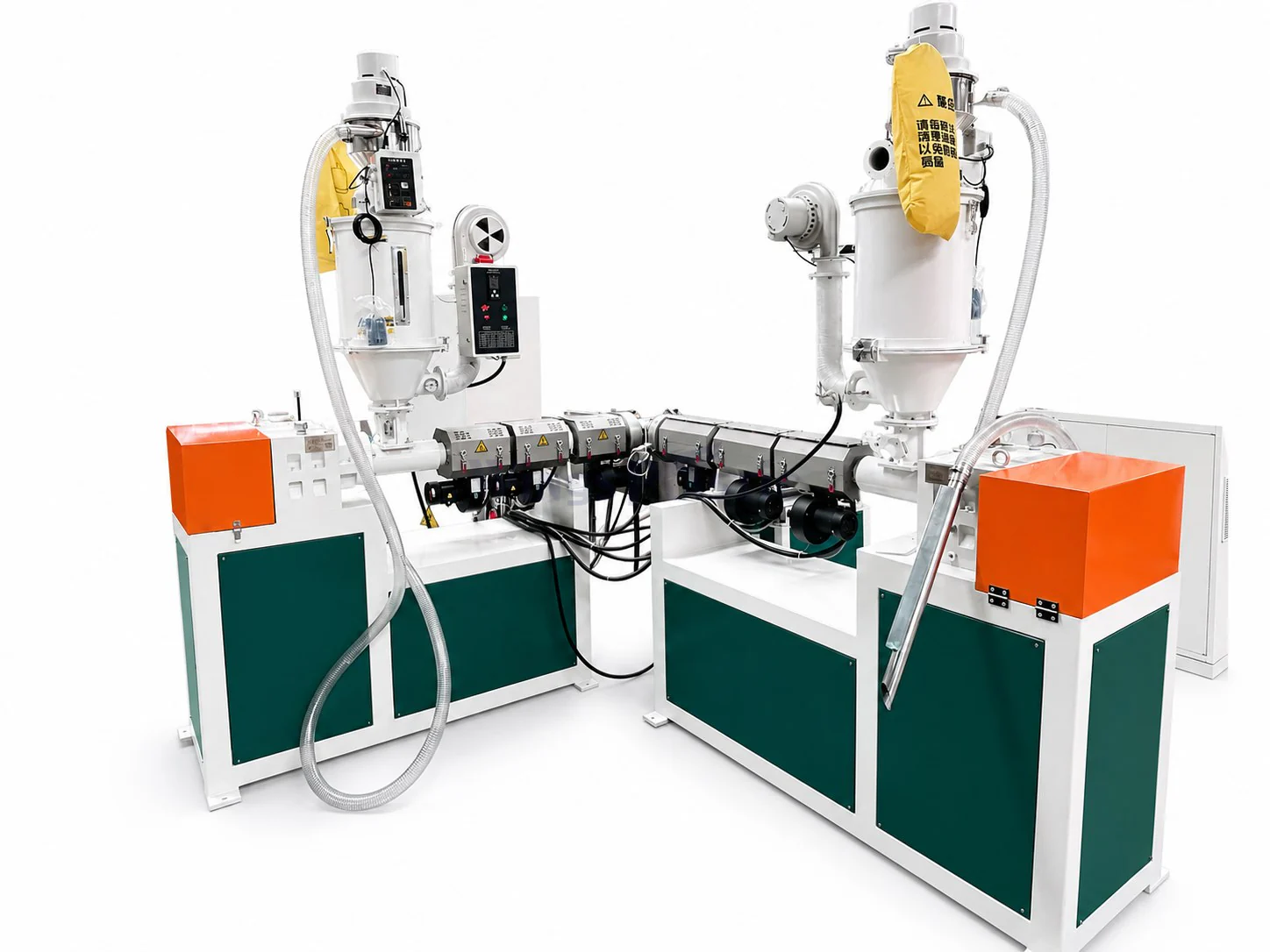

Independent material feeding keeps the flexible body compound and rigid spiral compound separated before plasticizing. Feeding and hopper arrangements are selected according to the PVC formulation and target output.
Right-Angle Dual Single Screw Extruders
The main extruder supplies the flexible PVC hose body while the secondary extruder produces the rigid reinforcing profile. Independent speed and temperature control allow each compound to be plasticized under its own processing conditions.
Co-Extrusion Die Head

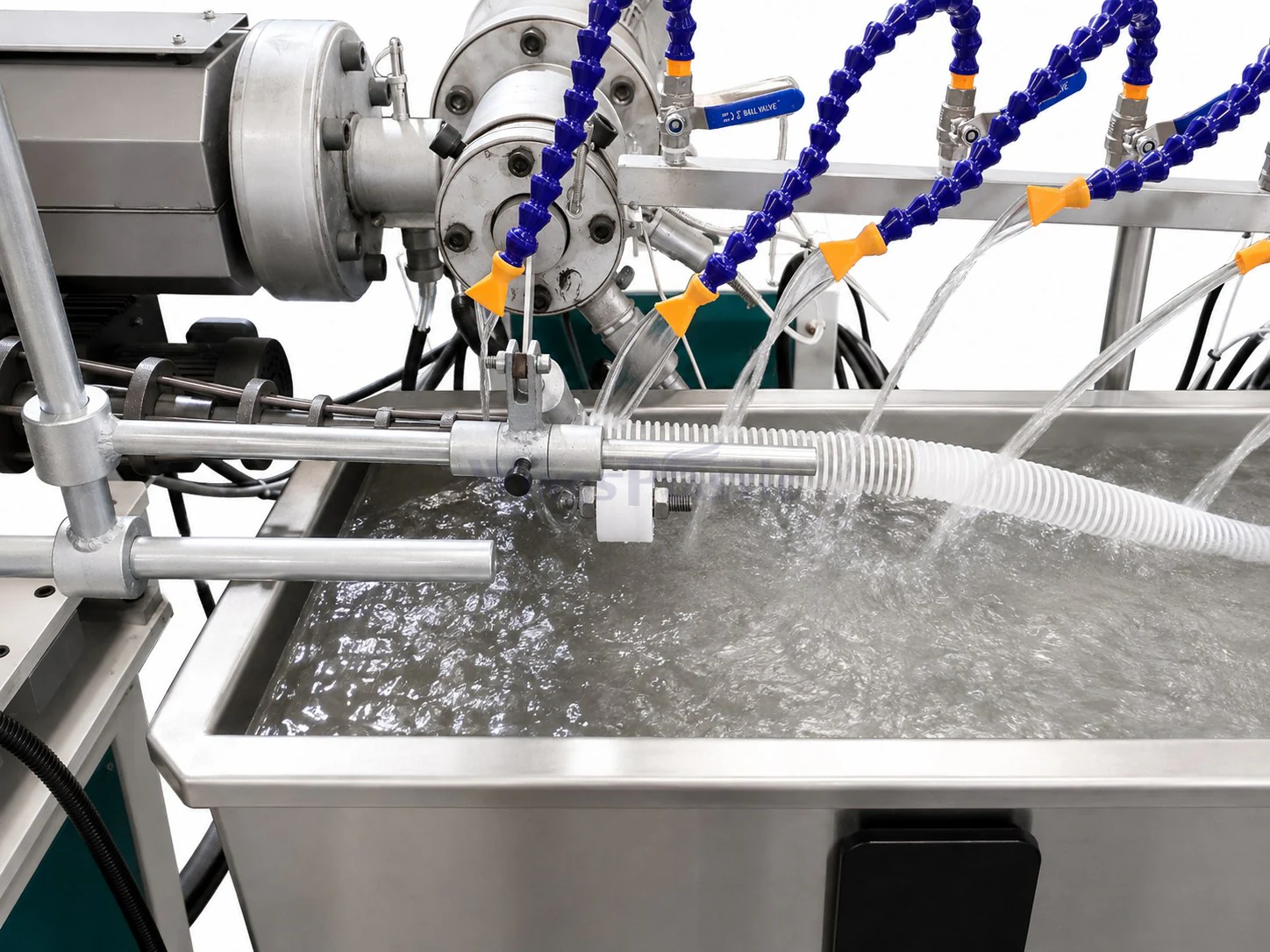

Dedicated flow channels form the flexible strip and rigid reinforcement profile with stable dimensions. Polished internal surfaces reduce material retention and support clean bonding in the rotary forming section.
Rotary Spiral Forming Machine

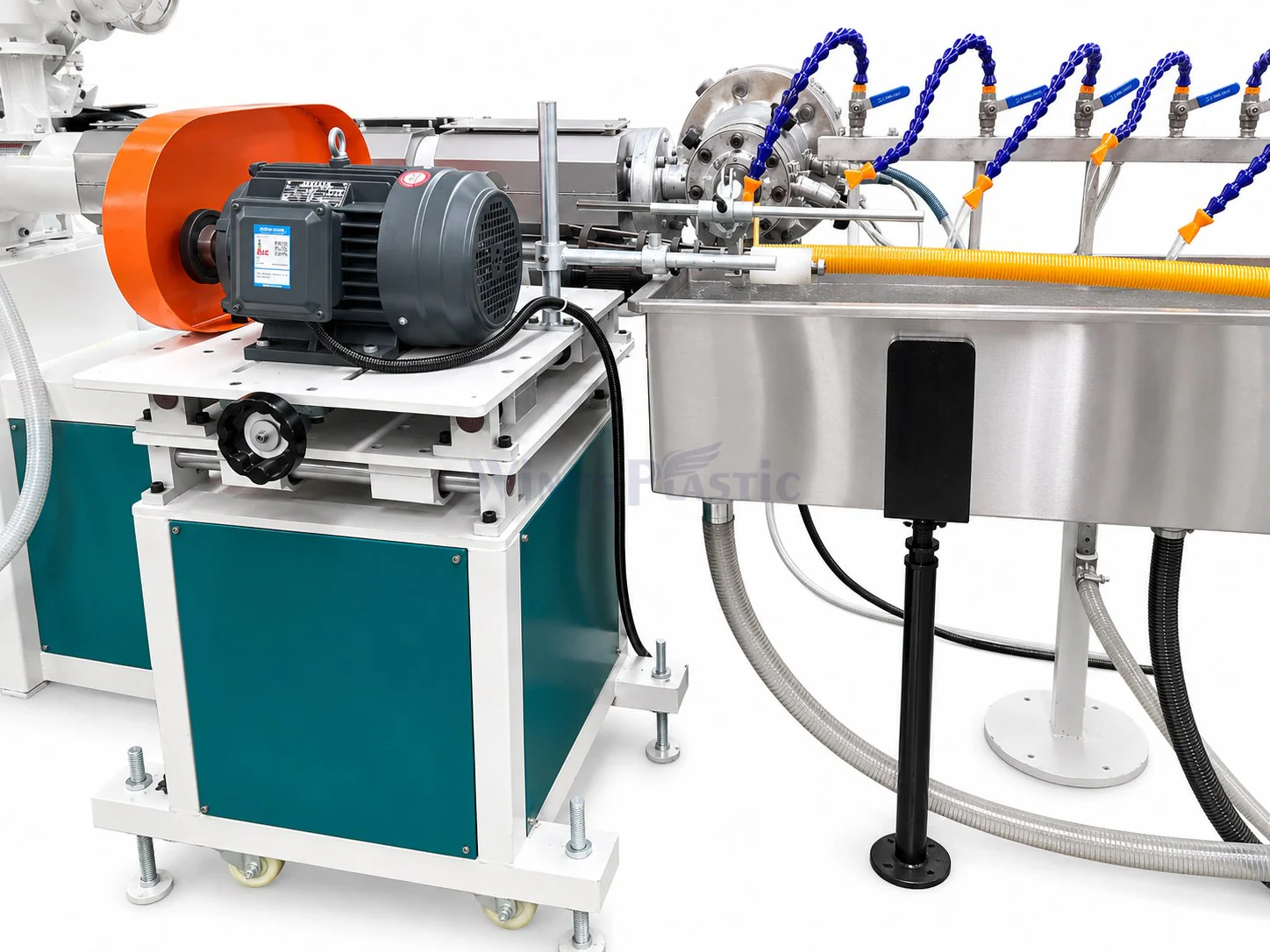

The rotary system wraps and bonds the extruded profiles into a continuous reinforced hose. Multi-direction adjustment controls spiral pitch, overlap and forming pressure for different hose diameters and stiffness targets.
Modular 304 Stainless Steel Cooling Line

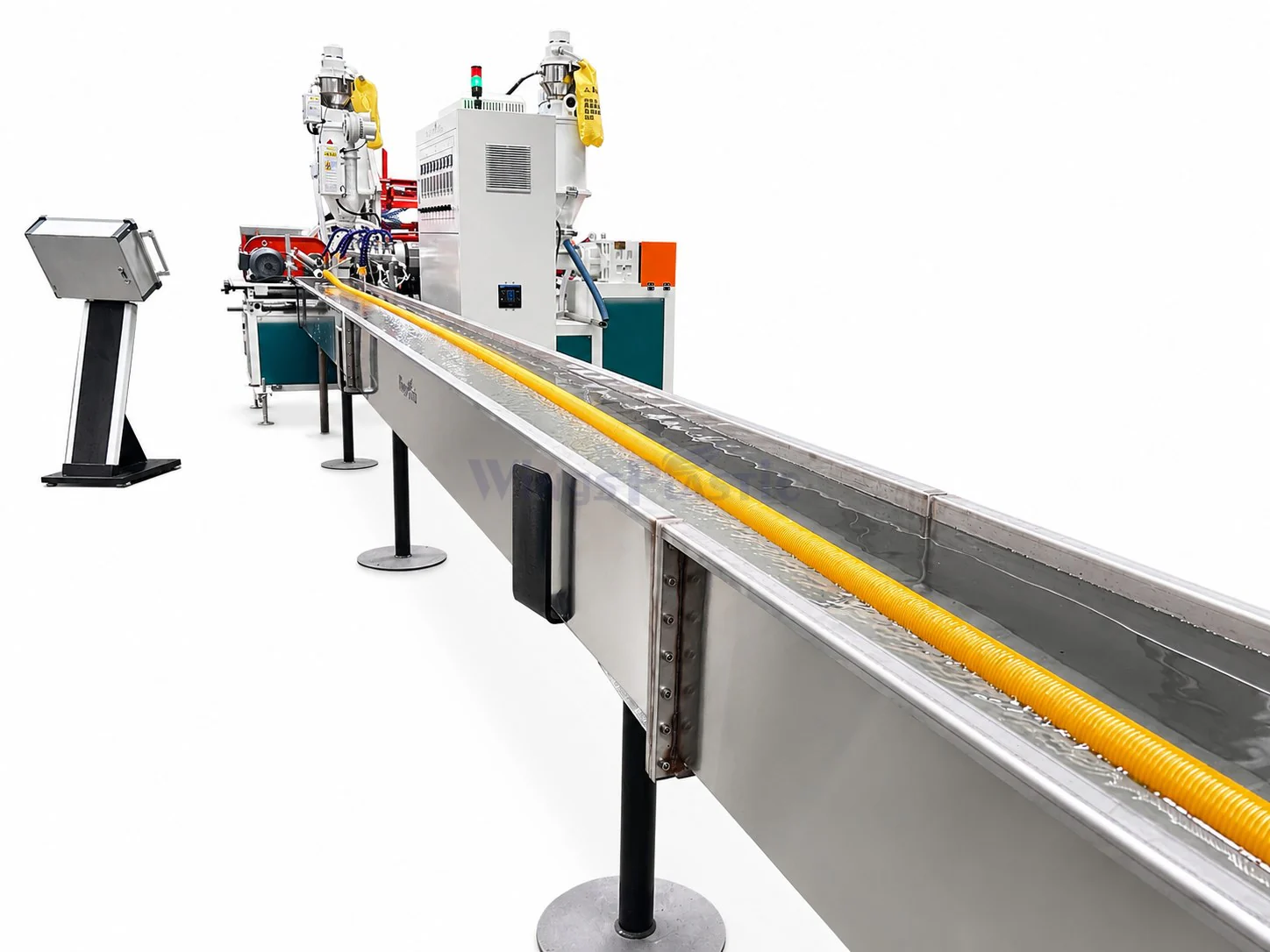

The newly formed hose passes through an extended 304 stainless steel cooling section that stabilizes the bonded spiral and flexible wall. Large-diameter lines can use a modular cooling length up to approximately 30 meters for transport and onsite assembly.
PVC Spiral Suction Hose Extrusion Line Model Range
| Model | Hose Diameter ID | Soft PVC Extruder | Rigid PVC Extruder | Max Output |
|---|---|---|---|---|
| WS-SR-50 | 13 - 50 mm | SJ45/28 - 11 kW | SJ45/25 - 7.5 kW | 40 kg/h |
| WS-SR-100 | 32 - 100 mm | SJ65/28 - 22 kW | SJ55/25 - 15 kW | 120 kg/h |
| WS-SR-200 | 100 - 200 mm | SJ75/28 - 37 kW | SJ65/25 - 22 kW | 200 kg/h |
FAQ
What information is needed to quote a PVC Spiral Suction Hose Extrusion Line?
Please provide hose ID, flexible wall thickness, rigid spiral dimensions and pitch, vacuum or working pressure, bending radius, target output, voltage and a physical sample or section drawing when available.
Why does the line use two PVC extruders?
Flexible PVC and rigid PVC require different formulations and processing conditions. Separate extruders allow independent temperature and speed control before the two profiles are bonded by the rotary forming system.
How is this line different from a PVC steel wire hose line?
This line creates reinforcement from a rigid PVC spiral bonded to a flexible PVC wall. A steel wire hose line embeds metal wire inside the PVC wall and uses different wire feeding, die and forming equipment.
Request a Quotation
Send pipe material, diameter range, output target, voltage, final application and optional equipment requirements. We will recommend a practical extrusion line configuration.
