PVC Fiber Reinforced Braided Hose Extrusion Line
- Material
- PVC, polyester fiber
- Pipe / Hose Range
- 6 - 70 mm OD
- Output
- Up to 130 kg/h
Complete PVC fiber reinforced braided hose extrusion line for garden watering hose, gas and LPG hose, clear mesh-reinforced hose and water delivery hose production.
PVC Fiber Reinforced Braided Hose Extrusion Line
The PVC Fiber Reinforced Braided Hose Extrusion Line produces a three-layer hose consisting of a soft PVC inner tube, polyester fiber braid and protective PVC outer coating.
It is designed for PVC braided garden hose, gas and LPG hose, clear mesh-reinforced hose (sometimes called snake-skin hose in local markets), bathroom hose and general water or air delivery hose.
Applications
Technical Features
- Three-layer inner PVC, polyester braid and outer PVC construction
- Adjustable braid pitch and yarn tension for stable pressure performance
- Suitable for braided garden hose, gas and LPG hose and clear mesh hose
- Heating oven improves adhesion before the protective outer coating
- Transparent, colored and longitudinal stripe hose configurations
- Synchronized extrusion, haul-off and winding for consistent hose dimensions
Optional Equipment
How to Choose
- Confirm hose application and pressure.
- Select reinforcement layer by hose standard.
- Define coil length and packing method.
- Prepare hose sample if available.
Main Equipment and Process
Core units are configured according to pipe material, diameter, layer structure, output target and downstream collection method.

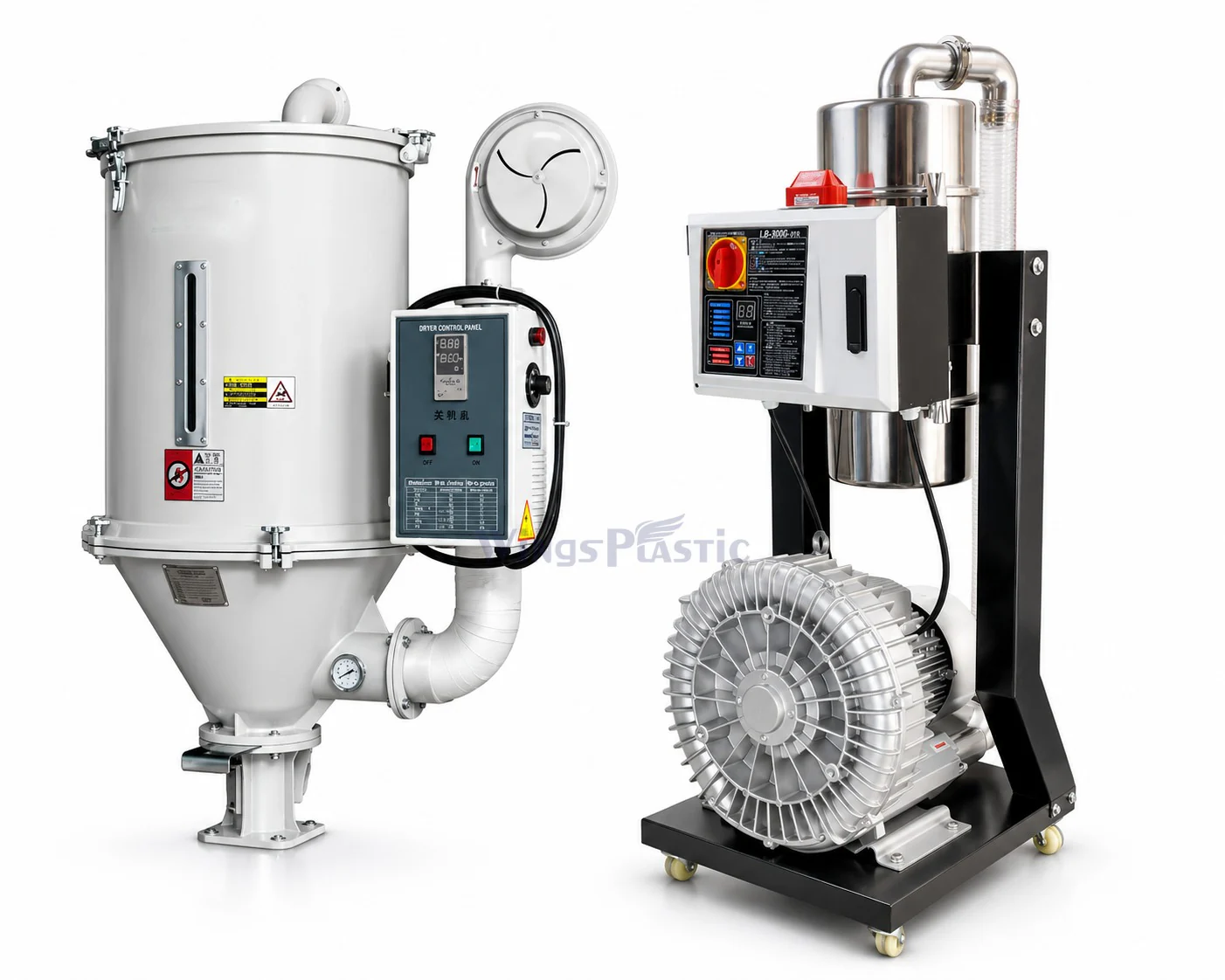

Vacuum Loader and Drying Hopper
PVC material is conveyed automatically to the drying hopper before extrusion. Stable feeding and controlled material temperature support consistent inner and outer layer quality.

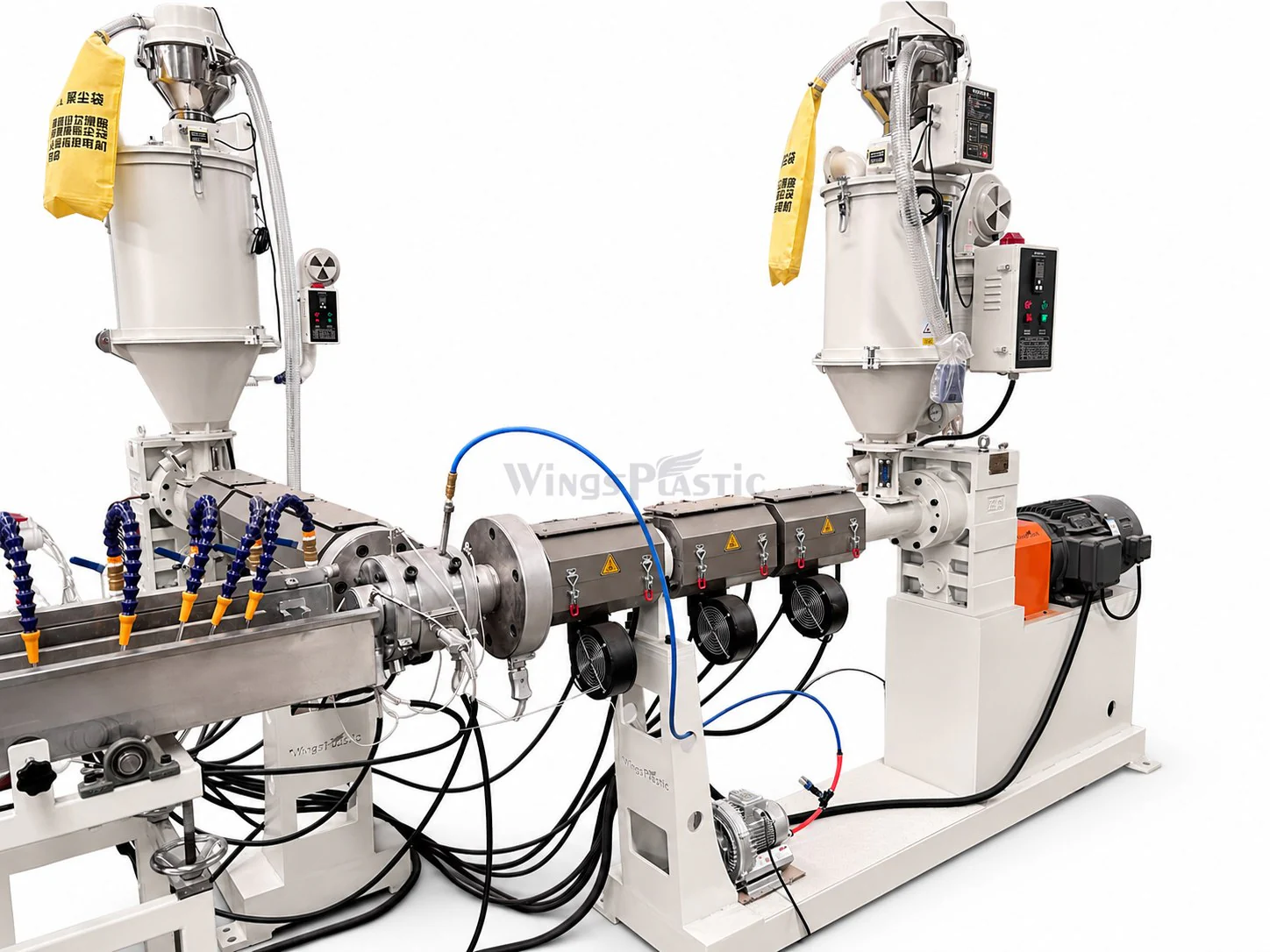

Inner Layer Single Screw Extruder
The first single screw extruder plasticizes the PVC compound and supplies a stable melt flow for the smooth inner hose layer.

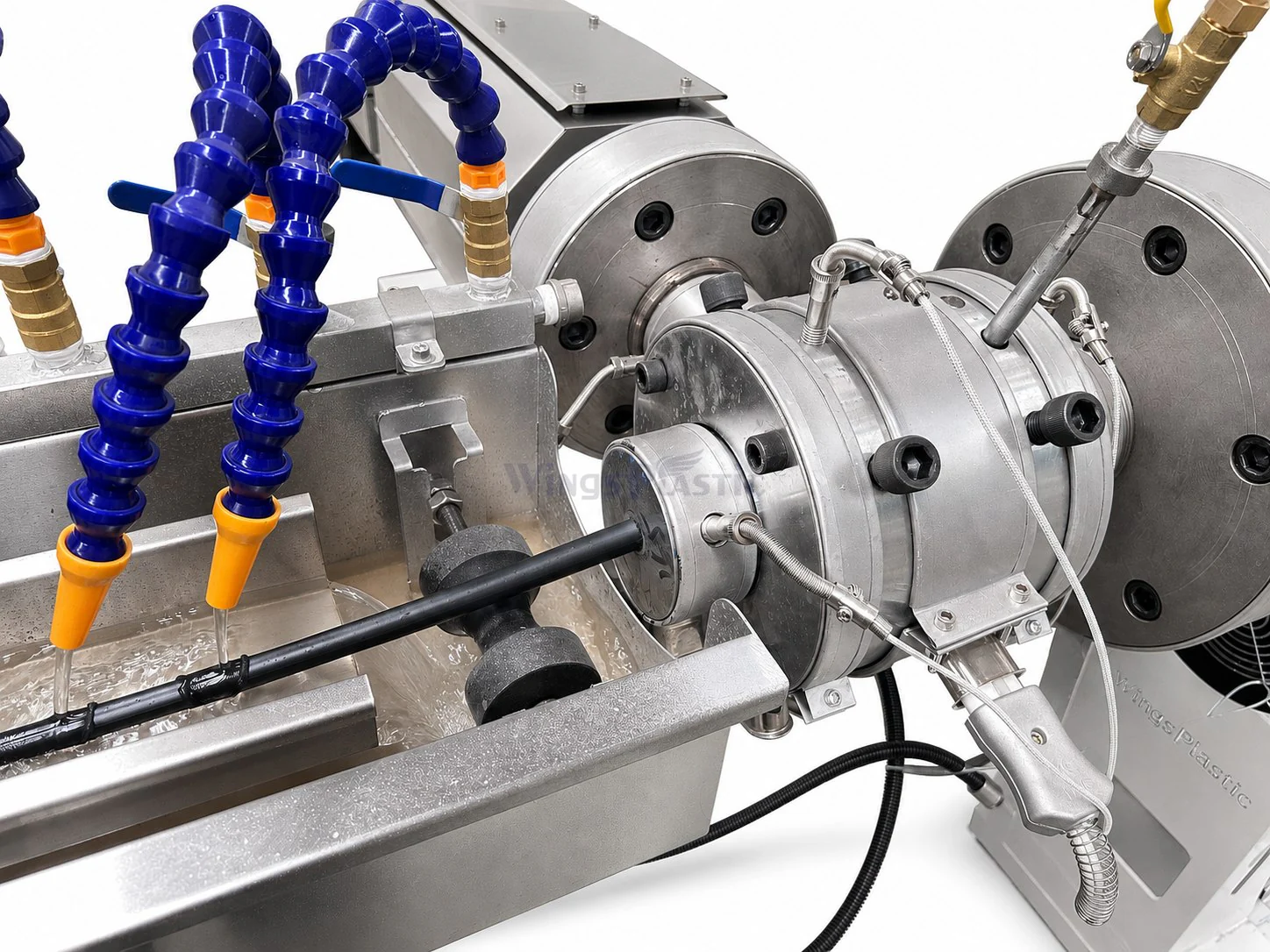

Inner Layer Extrusion Die Head
The inner layer die head forms the first PVC tube and controls its outside diameter and wall thickness before cooling.

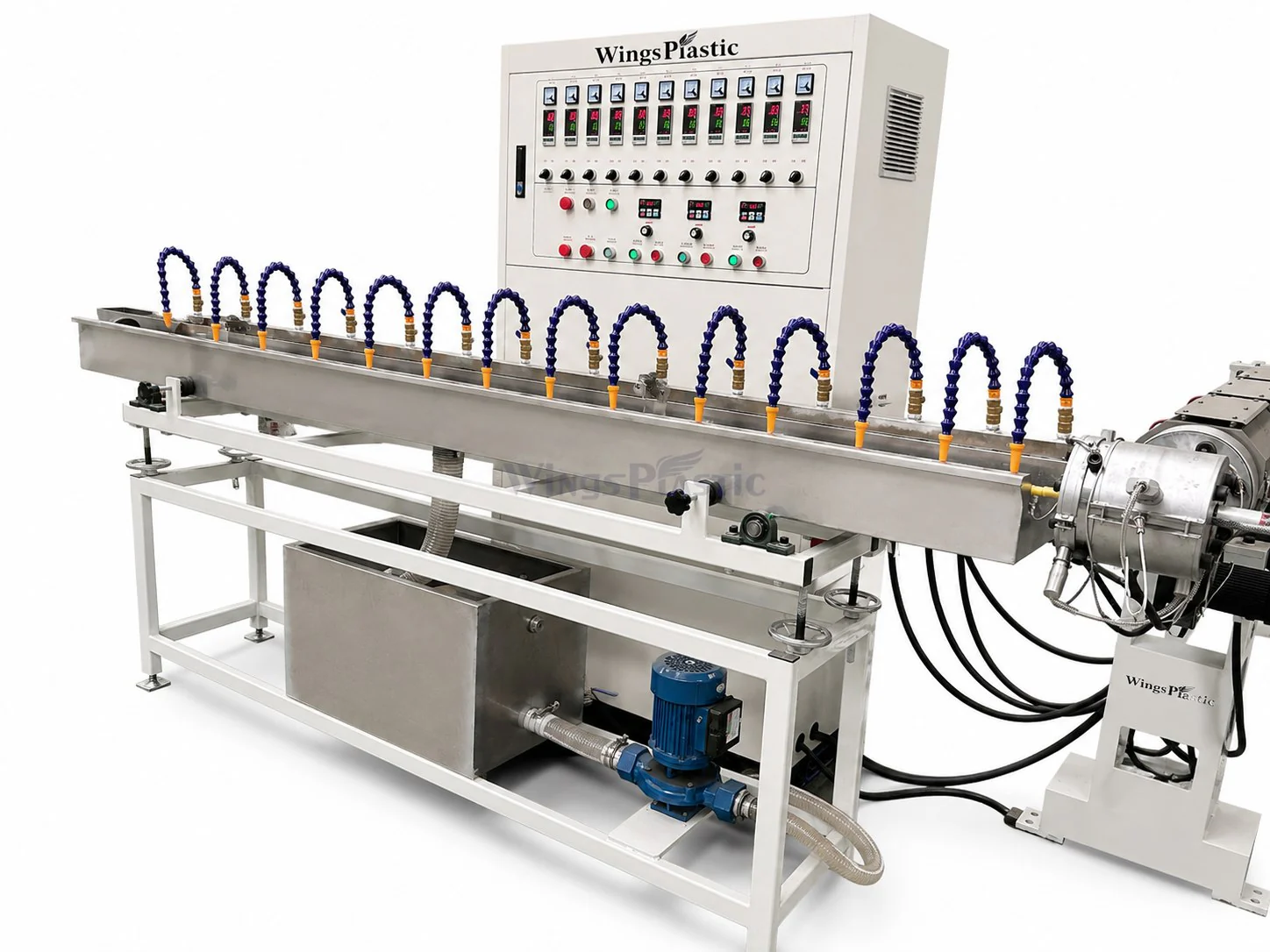

Inner Layer Cooling Tank
The first cooling tank stabilizes the inner PVC tube so it can enter the braiding stage without deformation.

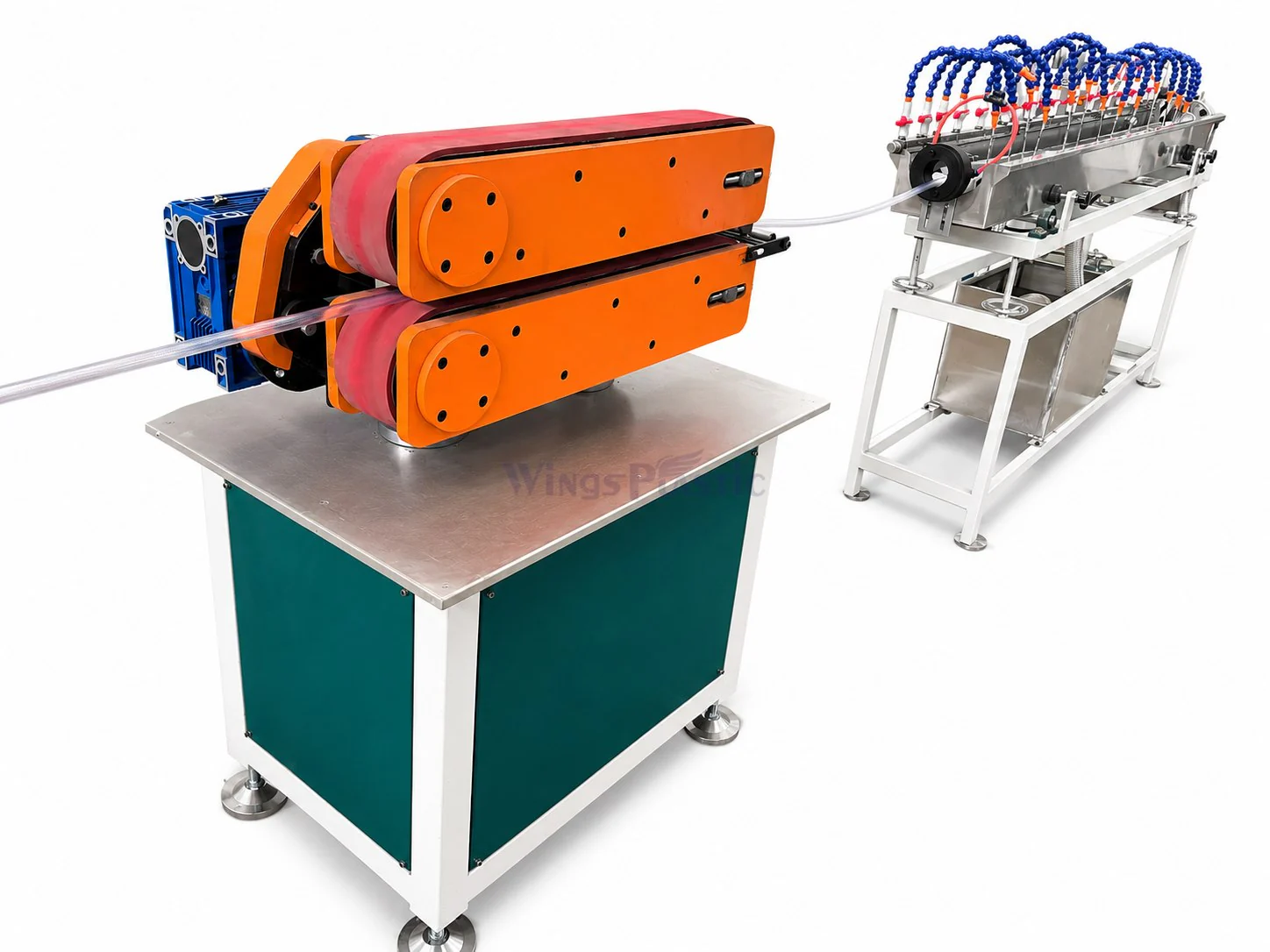

Inner Layer Haul-Off Machine
The first haul-off machine pulls the cooled inner tube at a synchronized speed and maintains stable dimensions before fiber reinforcement.

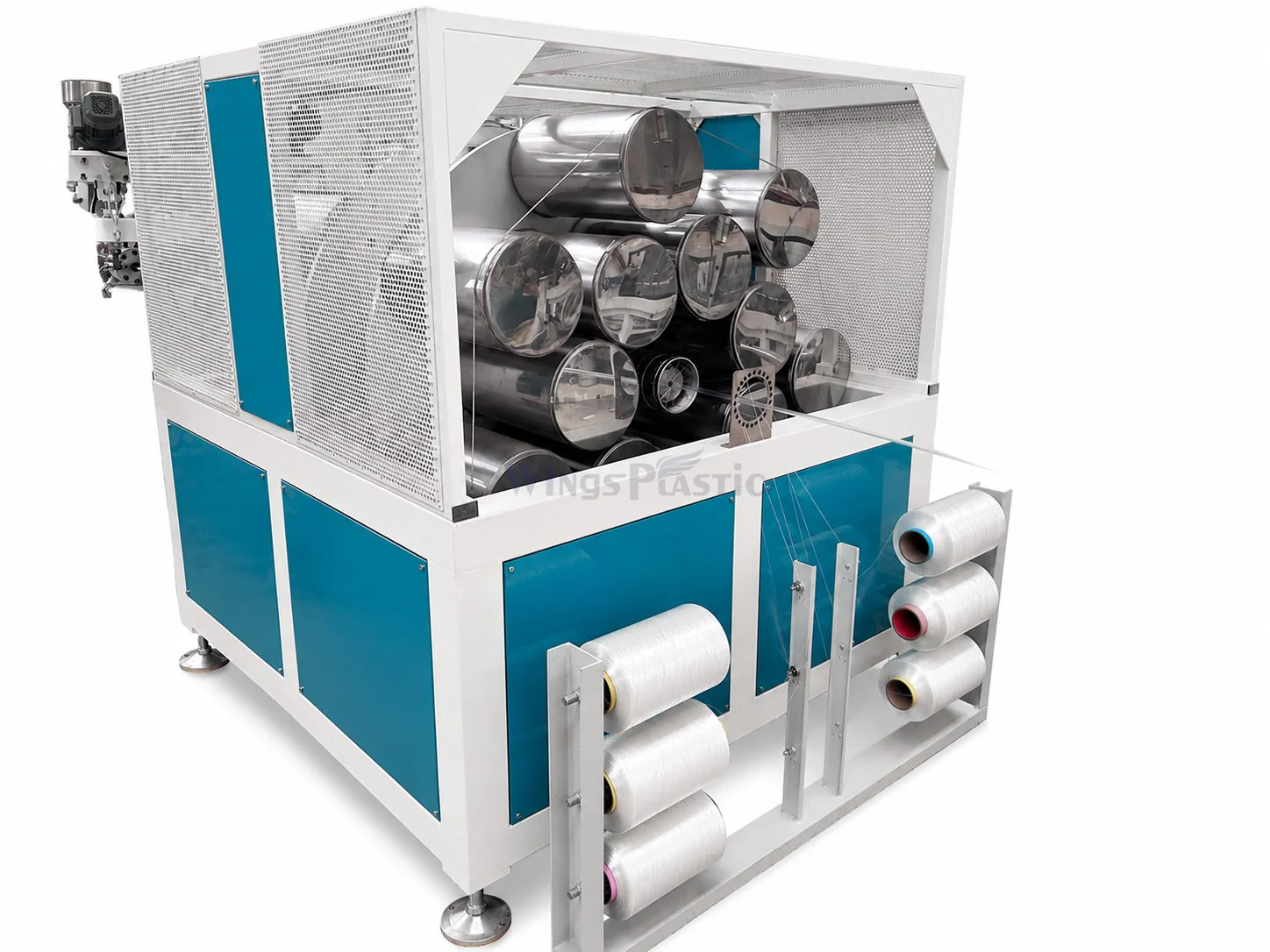

Fiber Braiding Machine
Polyester fiber is braided evenly around the inner PVC tube. Braiding pitch and density are adjusted to achieve the required working pressure and flexibility.

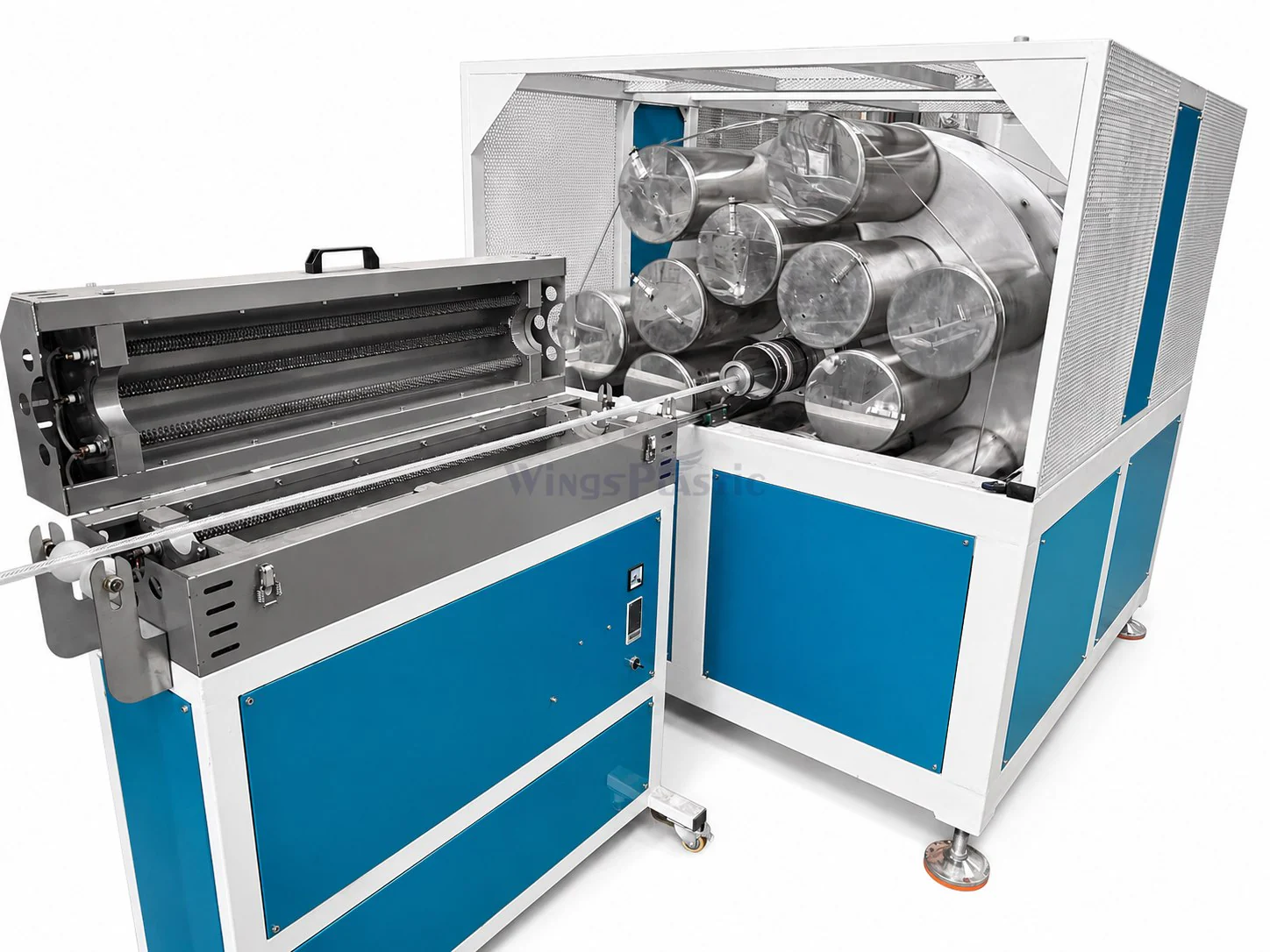

Heating Oven
The braided inner hose passes through a controlled heating oven before outer coating, improving surface activation and bonding between the PVC layers.

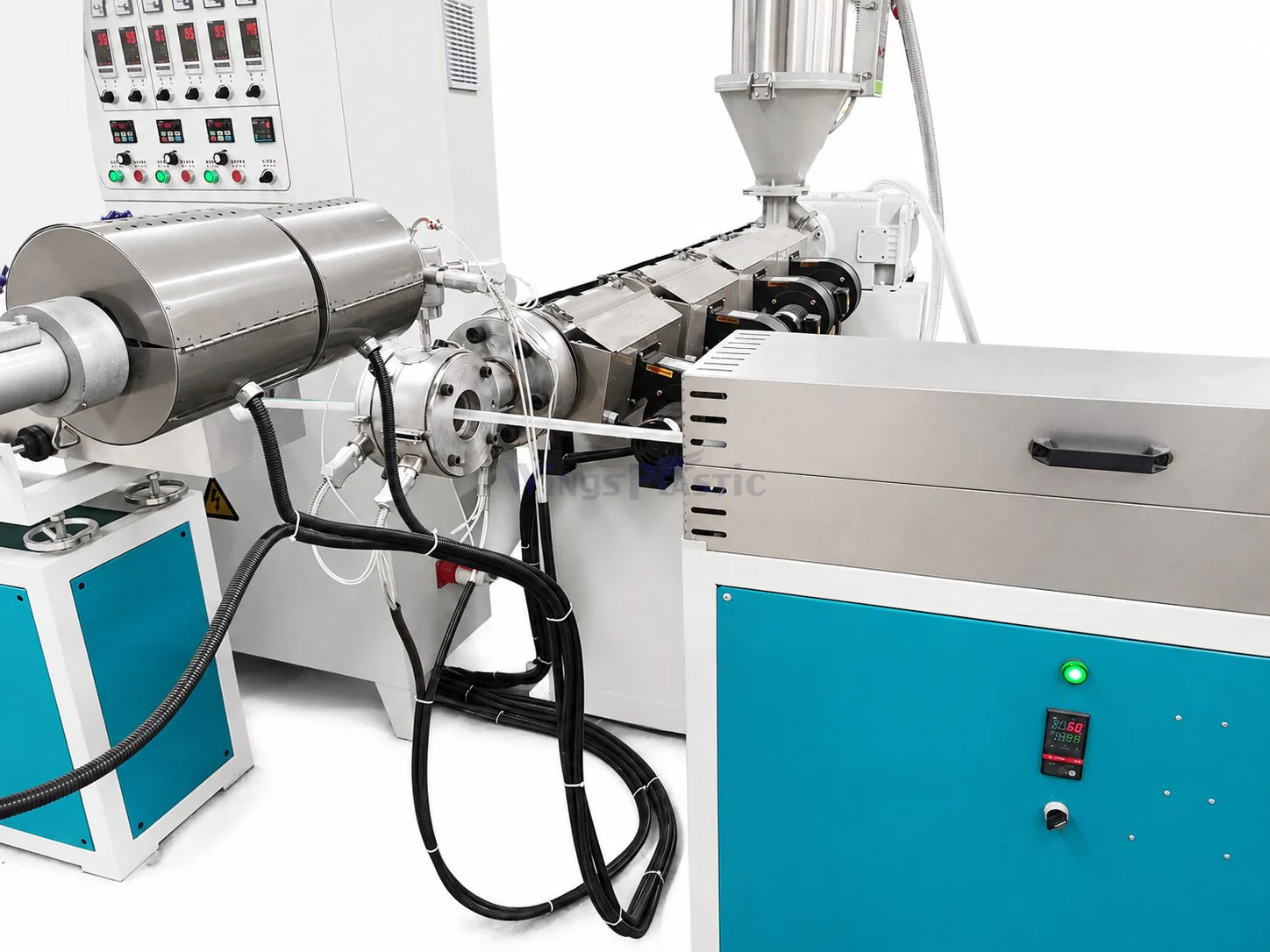

Outer Layer Single Screw Extruder
The second single screw extruder supplies PVC material for the protective outer layer that encapsulates the fiber reinforcement.

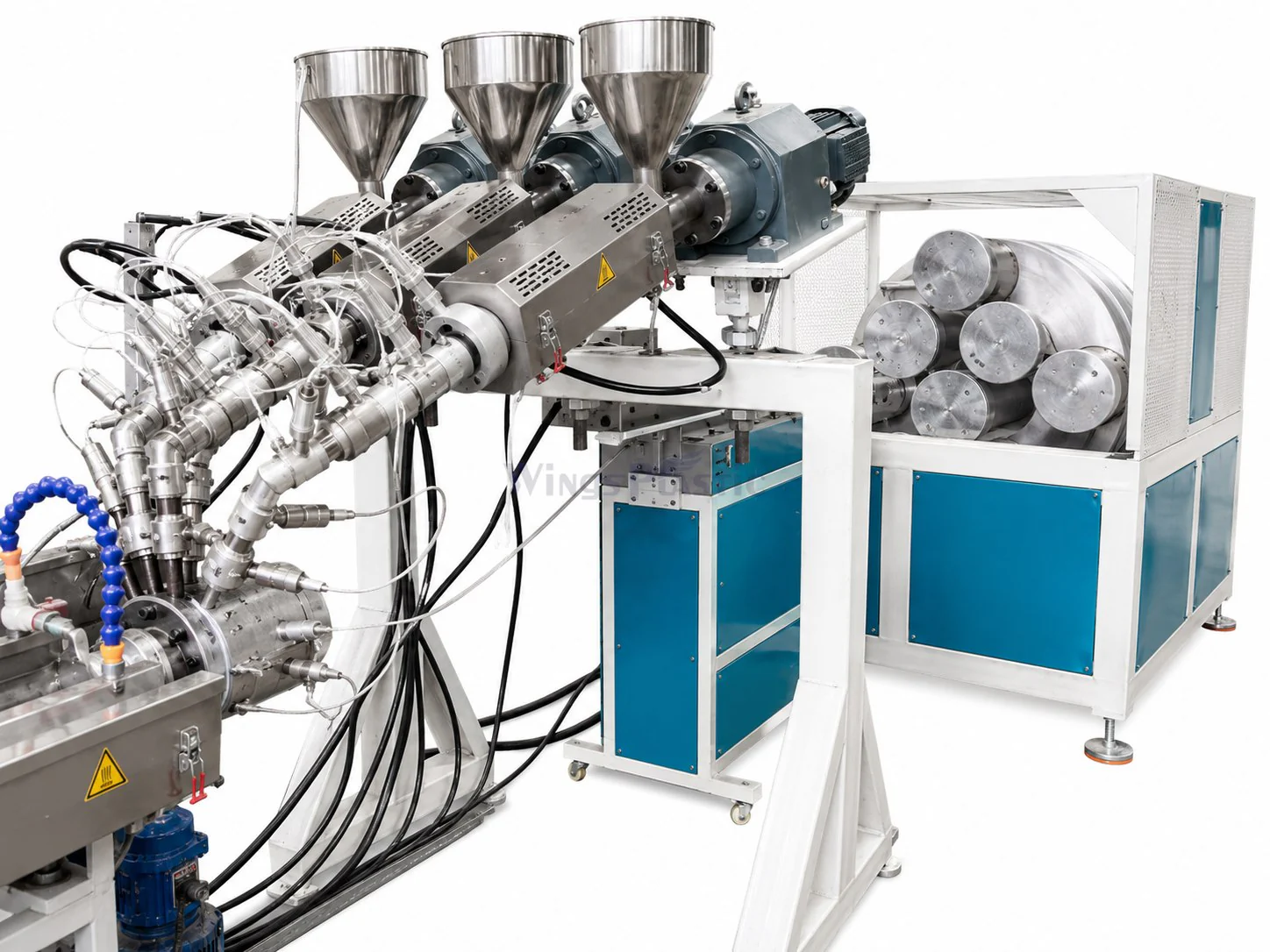

Outer Layer Die Head and Marking Extruders
The outer layer die head coats the braided tube uniformly, while dedicated marking extruders can add identification stripes. The assembly controls finished hose diameter, wall thickness and surface appearance.

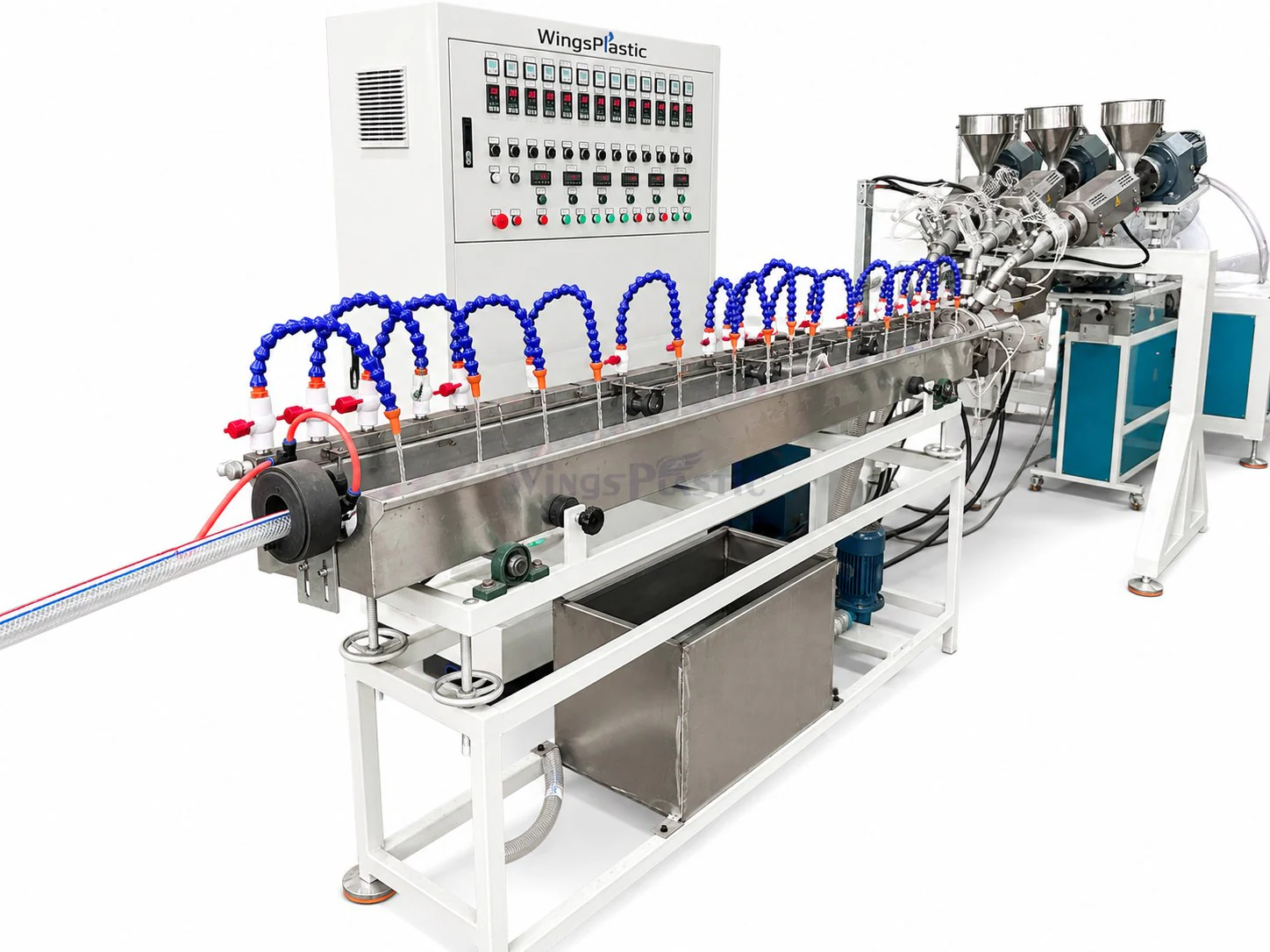

Outer Layer Cooling Tank
The second cooling tank solidifies the finished outer PVC layer and stabilizes the hose before final traction and winding.

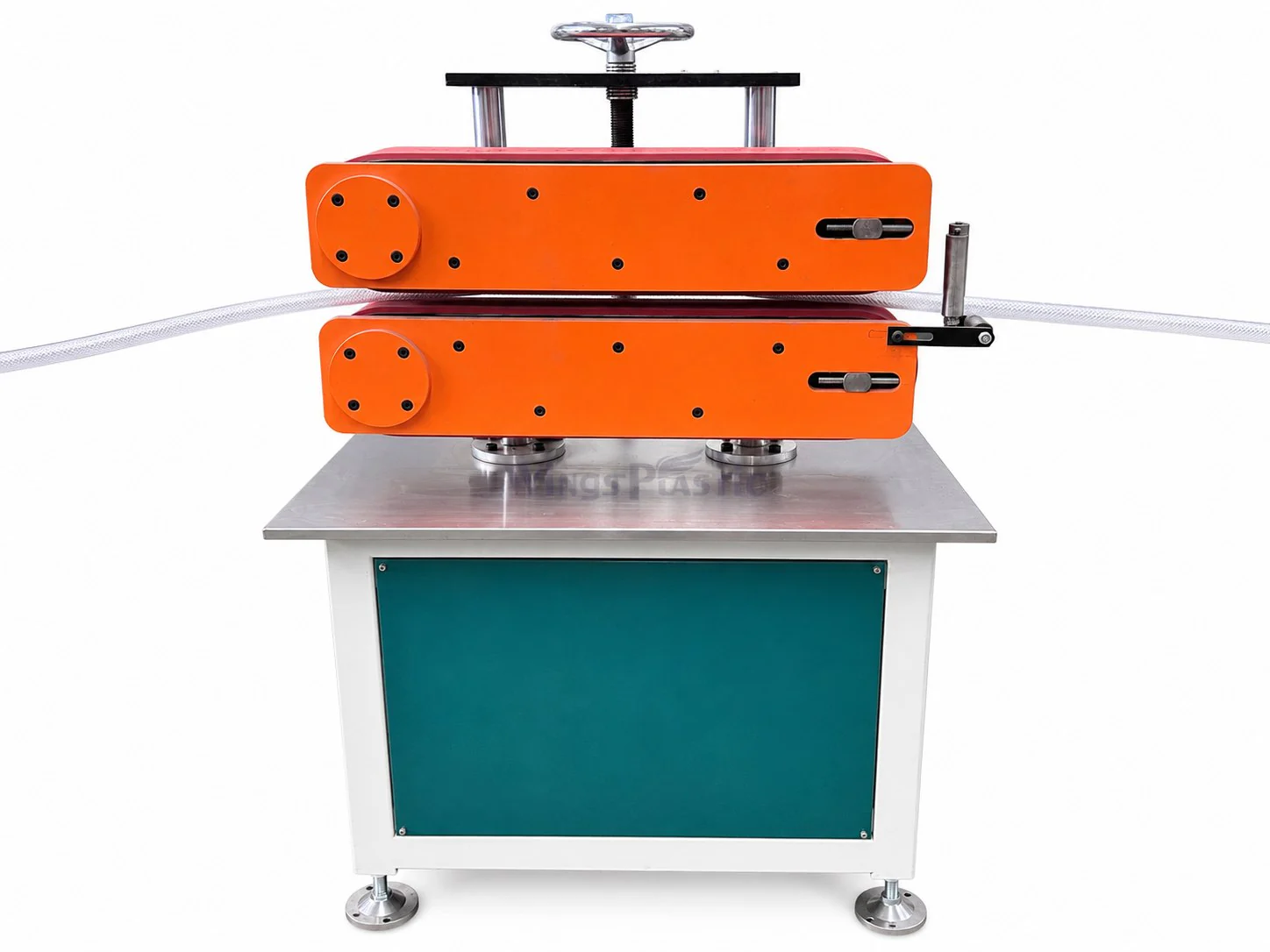

Outer Layer Haul-Off Machine
The final haul-off machine synchronizes with the outer extruder and cooling section to maintain hose diameter, wall thickness and production speed.

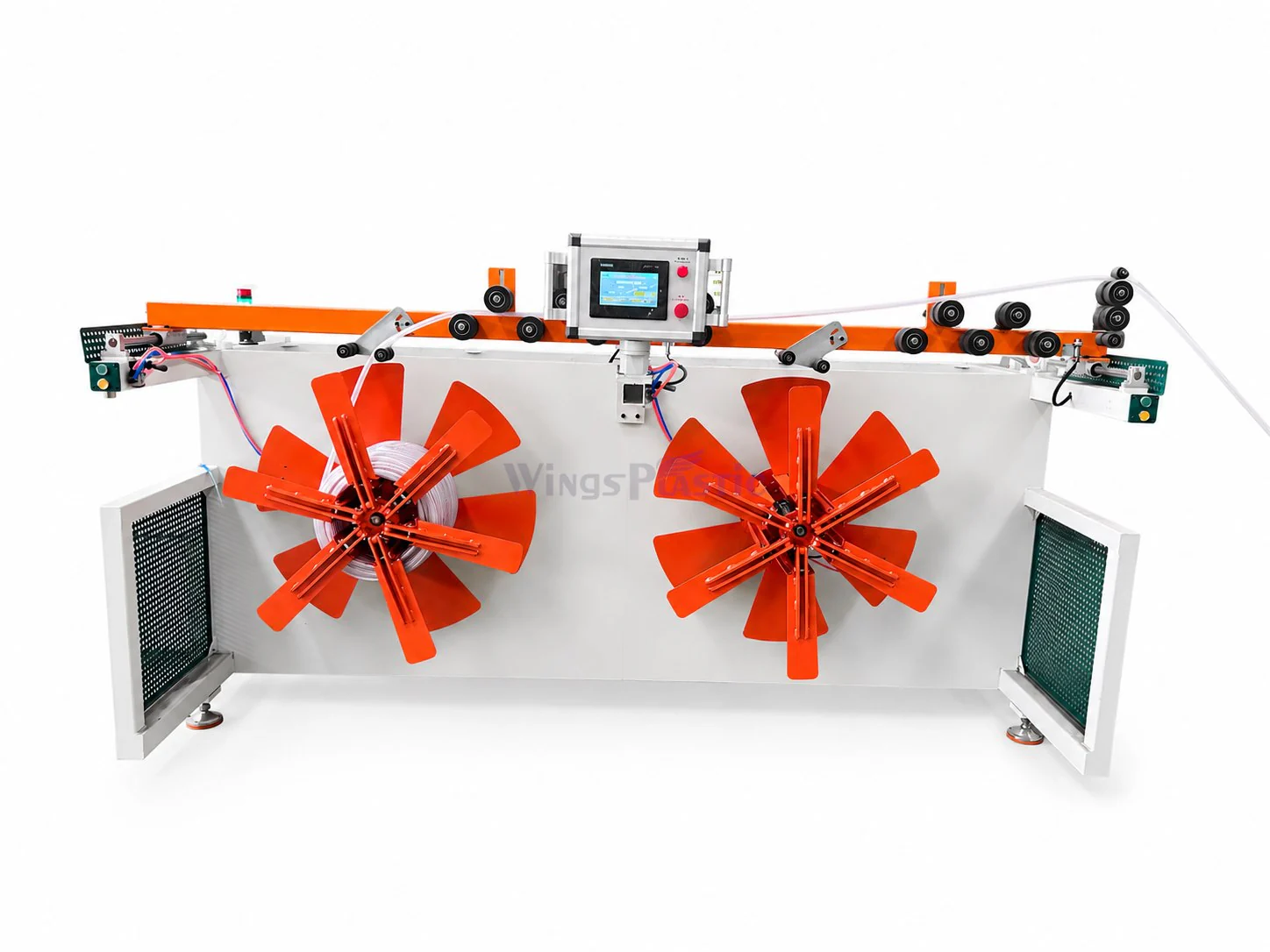

Hose Coiler / Winder
The finished reinforced hose is wound into specified coil lengths with controlled tension for inspection, packing and shipment.
PVC Fiber Reinforced Braided Hose Extrusion Line Model Range
| Model | Extruder Configuration | Hose Diameter OD | Max Output |
|---|---|---|---|
| XWG-45 | SJ45/30 single screw, 11 kW | 6 - 25 mm | Up to 50 kg/h |
| XWG-55 | SJ55/30 single screw, 15 kW | 8 - 50 mm | Up to 80 kg/h |
| XWG-65 | SJ65/30 single screw, 22 kW | 20 - 70 mm | Up to 130 kg/h |
FAQ
What hoses can this PVC braided hose extrusion line produce?
The line can produce PVC fiber reinforced garden hose, gas and LPG hose, transparent mesh-reinforced hose, bathroom hose and general water or air delivery hose. Tooling and braid settings are selected for the required hose structure and pressure.
How is PVC fiber reinforced braided hose produced?
The first extruder forms and cools the inner PVC tube, polyester yarn is braided around it, an oven prepares the reinforced tube for bonding, and the second extruder applies the protective outer PVC layer before final cooling, haul-off and winding.
What information is required for a garden or gas hose line quotation?
Please provide hose outside diameter, inner diameter, wall thickness, working and burst pressure, material formulation, braid yarn specification, applicable standard, target output, coil length and an existing hose sample when available.
Request a Quotation
Send pipe material, diameter range, output target, voltage, final application and optional equipment requirements. We will recommend a practical extrusion line configuration.
