PVC Single Layer Transparent Hose Extrusion Line
- Material
- Flexible PVC compound
- Pipe / Hose Range
- 4-50 mm hose OD
- Output
- 30-70 kg/h
PVC single layer transparent hose extrusion line for clear vinyl tubing, low-pressure liquid transfer hose, beverage and dairy tubing, laboratory tube, sight-flow tube, air line and general-purpose flexible PVC hose production.
PVC Single Layer Transparent Hose Extrusion Line
PVC Single Layer Transparent Hose Extrusion Line is a compact clear vinyl tube production system for smooth, flexible hose without fiber or steel-wire reinforcement. SJ45, SJ55 and SJ65 main extruders cover finished hose outside diameters from 4 mm to 50 mm and nominal output from 30 kg/h to 70 kg/h.
Typical products include transparent PVC water hose, beverage and dairy transfer tube, laboratory tubing, low-pressure air line, sight-flow tube, drainage tube and protective sleeving. The clear wall allows operators to observe the conveyed medium, while the polished die and controlled cooling system support a smooth surface and consistent wall thickness.
Food-contact, dairy or medical tubing must use a suitable PVC formulation and be produced under the hygiene and compliance controls required by the target market. The extrusion line itself can be configured for these products, but final tube compliance depends on raw material, formulation, tooling, production environment and validation.
Applications
Technical Features
- SJ45, SJ55 and SJ65 extruder options for 4-50 mm clear PVC hose
- Stable single-layer plasticizing for transparent, flexible vinyl tubing
- Polished precision die tooling for consistent wall thickness and concentricity
- Stainless steel water-contact sections for clean, controlled cooling
- Synchronized haul-off, cutting and winding for straight lengths or coils
- Food-contact or medical-grade material configuration available by project
Optional Equipment
How to Choose
- Confirm finished hose OD, inside diameter and wall thickness, then select SJ45, SJ55 or SJ65 from the standard range.
- Specify the conveyed medium and working conditions, including liquid, air, vacuum, temperature and pressure.
- Define transparency, hardness, color and whether the PVC compound must meet a food-contact or medical material standard.
- Confirm straight-length cutting or coil packaging, coil length and required production capacity.
Main Equipment and Process
Core units are configured according to pipe material, diameter, layer structure, output target and downstream collection method.
Vacuum Loader and Drying Hopper
The vacuum loader transfers PVC material to the drying hopper for stable, clean feeding before extrusion, helping reduce moisture-related surface defects.

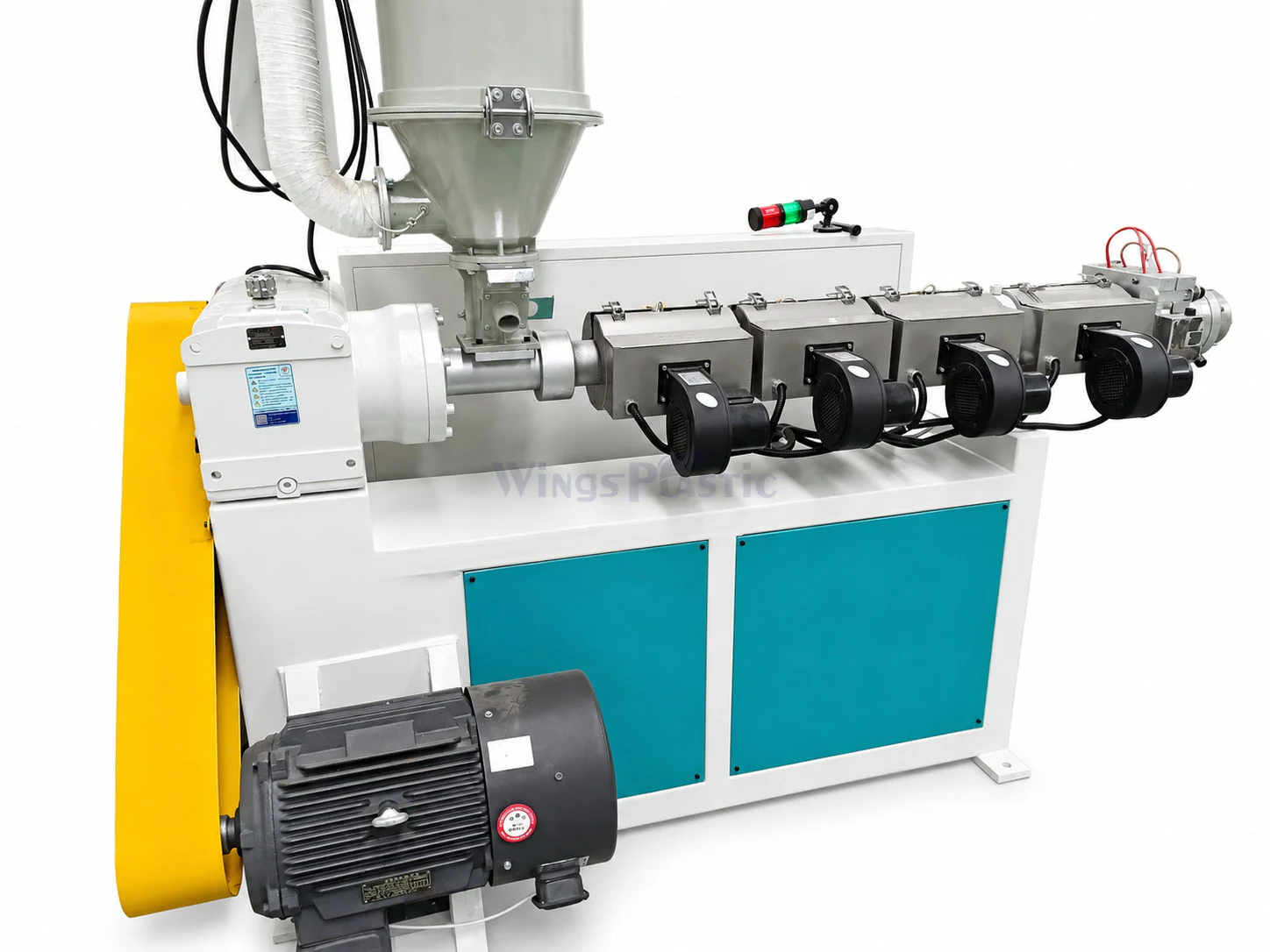

Single Screw Extruder
The single screw extruder plasticizes medical-grade, food-contact or general soft PVC compound under independently controlled temperature zones for stable transparency, flexibility and continuous output.

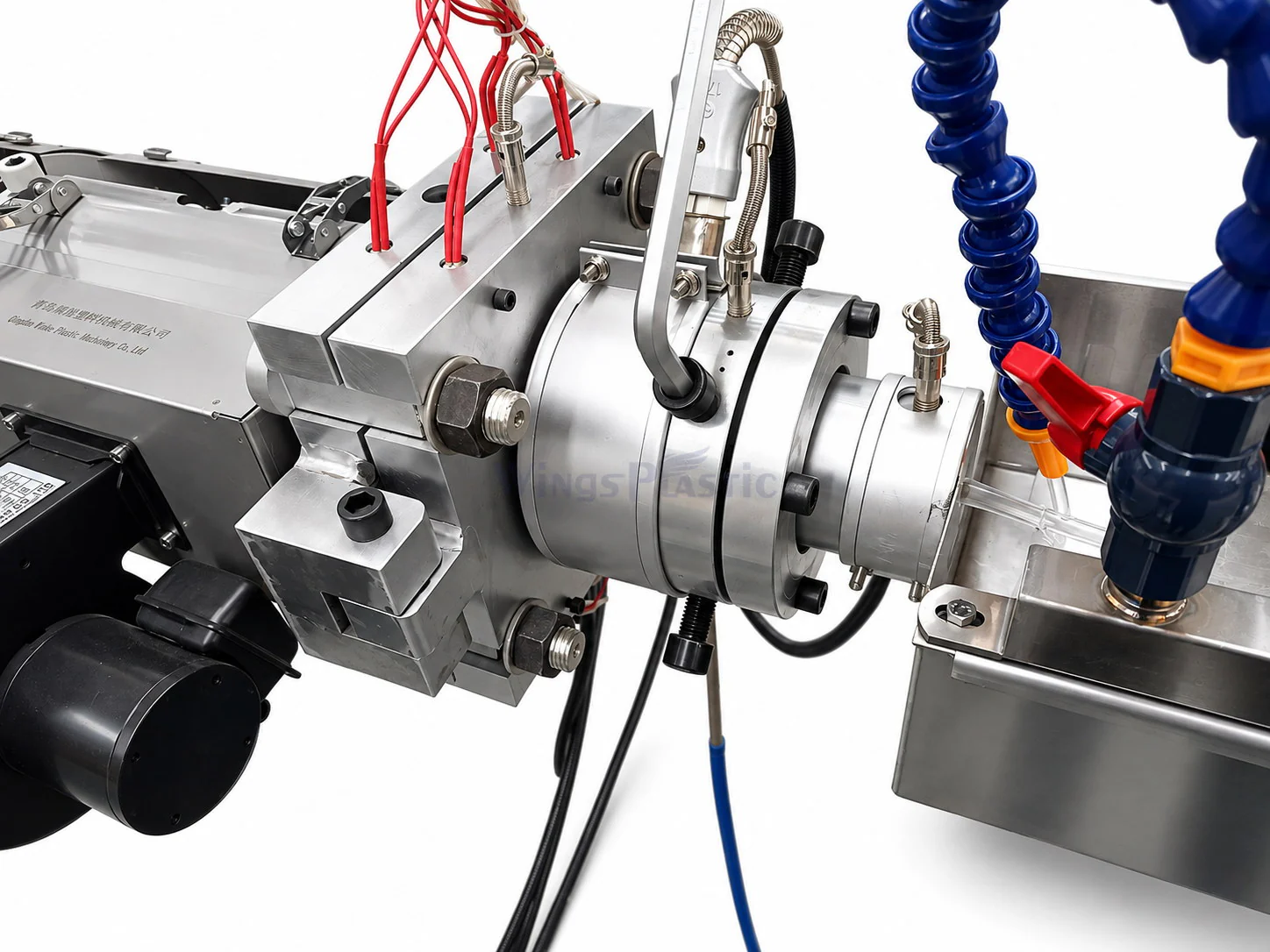

Hose Extrusion Die Head and Mould
The polished precision die head forms a uniform single-layer tube and controls outside diameter, wall thickness and concentricity. Interchangeable tooling is selected for the required hose size range.

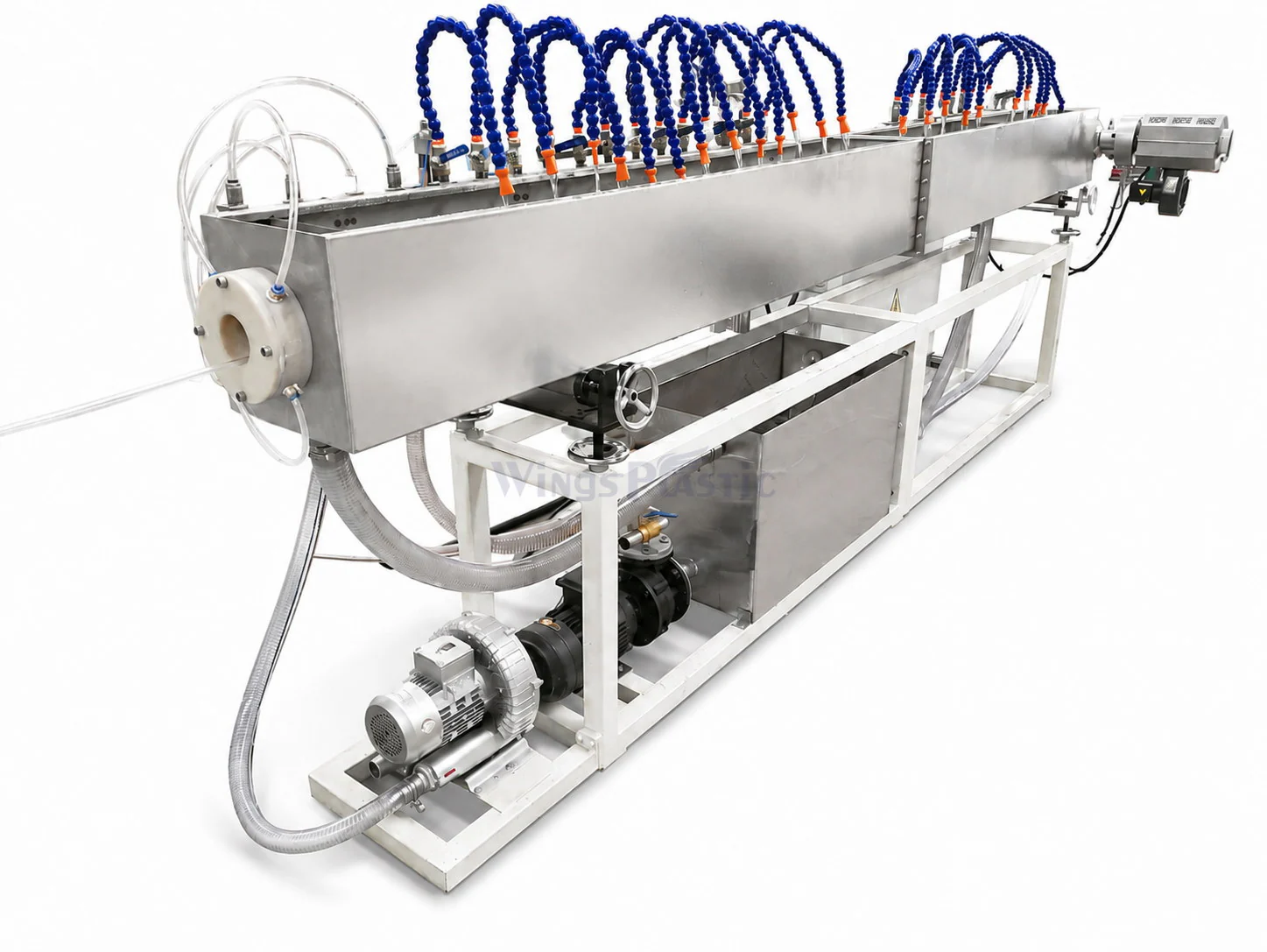

Stainless Steel Cooling Tank
Multi-point controlled water cooling stabilizes the transparent tube after extrusion while preserving a smooth surface and accurate hose dimensions. Cooling length is matched to hose diameter and production speed.

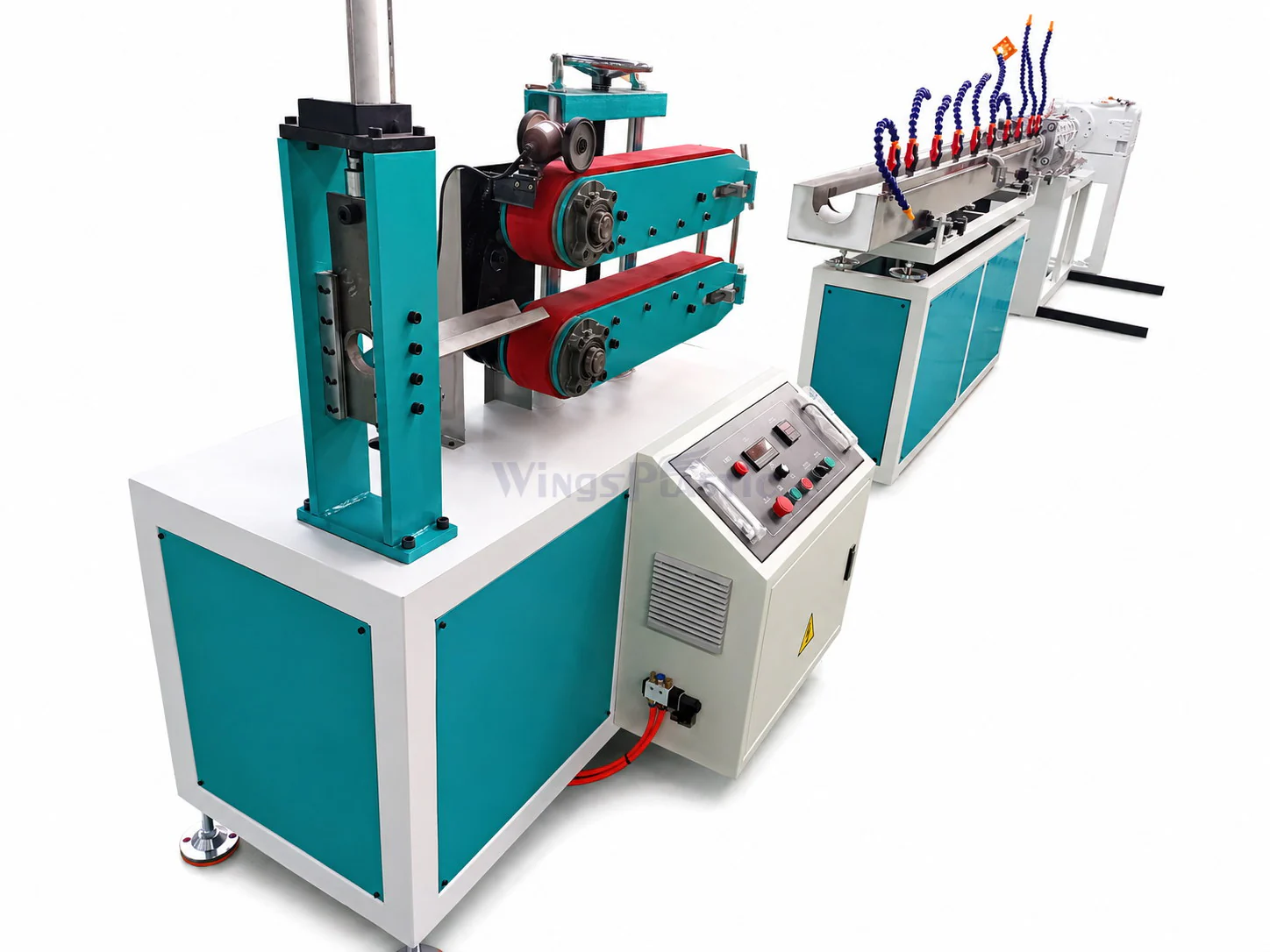

Haul-Off and Cutting Machine
The synchronized haul-off stabilizes line speed and wall thickness, while the integrated cutting unit prepares straight tube lengths when the product is not supplied in coils.

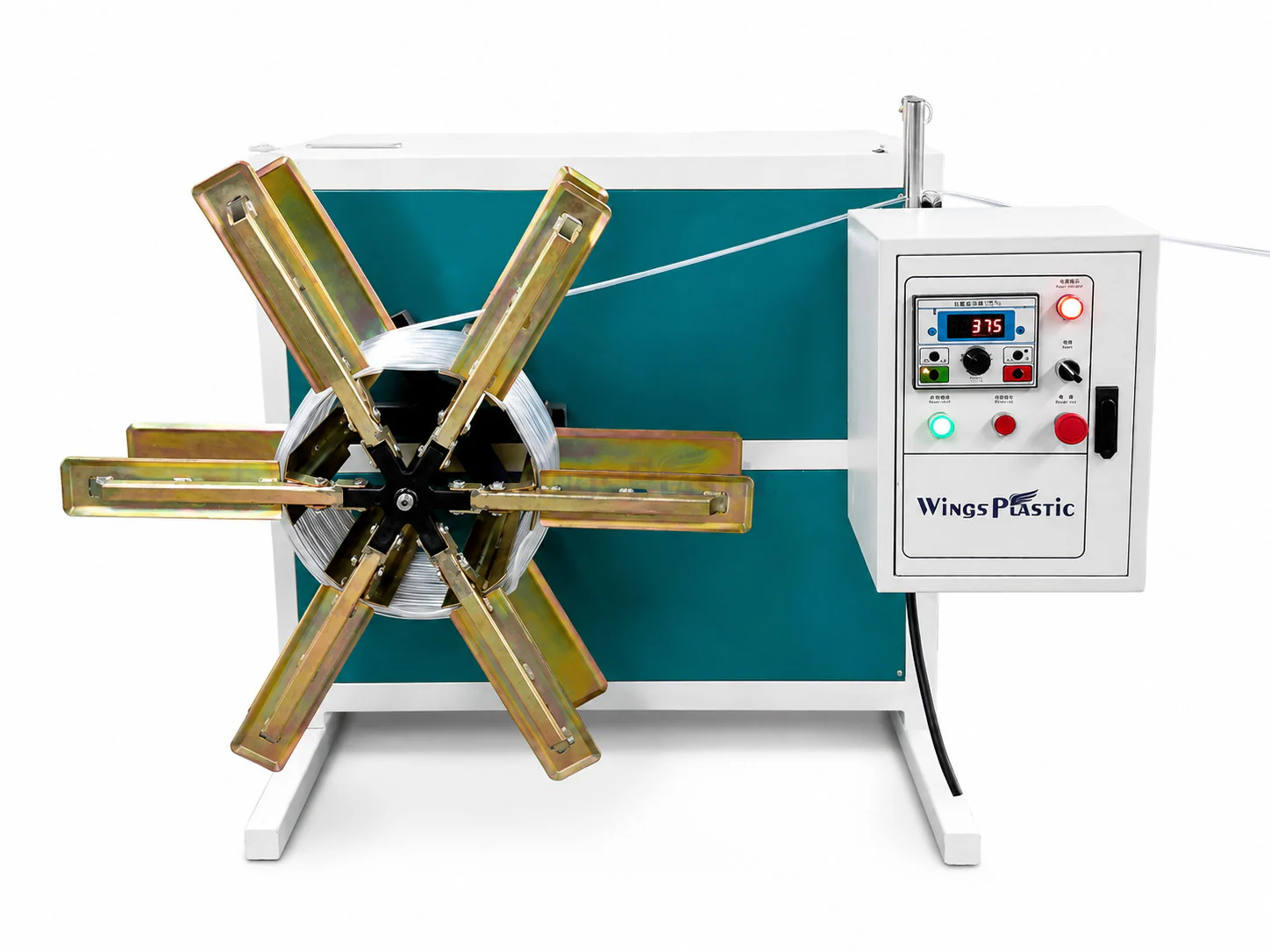

Automatic Hose Winder
The finished medical, milk or liquid-transfer tubing is wound into neat coils. Winding speed, coil diameter and changeover method are configured for the hose size and final package.
PVC Single Layer Transparent Hose Extrusion Line Technical Parameters
| Main Extruder | Screw Diameter | Main Motor | Nominal Output | Suitable Hose OD |
|---|---|---|---|---|
| SJ45 | 45 mm | 11 kW | 30 kg/h | 4-10 mm |
| SJ55 | 55 mm | 15 kW | 45 kg/h | 8-20 mm |
| SJ65 | 65 mm | 22 kW | 70 kg/h | 16-50 mm |
FAQ
What information is needed to quote a PVC Single Layer Transparent Hose Extrusion Line?
Please provide the PVC formulation or target material standard, finished hose ID and OD, wall thickness, hardness, transparency or color, output target, voltage, final application and required coil length or straight cutting length.
Which extruder model should I choose for clear PVC tubing?
SJ45 is suitable for 4-10 mm hose OD with nominal output up to 30 kg/h, SJ55 covers 8-20 mm at up to 45 kg/h, and SJ65 covers 16-50 mm at up to 70 kg/h. Final capacity depends on formulation, wall thickness and line speed.
What products can this clear PVC hose machine make?
The line can produce transparent water hose, beverage and dairy transfer tubing, laboratory tube, low-pressure air line, sight-flow tube, drainage tube and cable-protection sleeving. Tooling and PVC formulation are selected for the final application.
Can this line produce food-grade or medical PVC tubing?
Yes, the equipment can be configured for food-contact or medical tubing. Final compliance is not determined by the machine alone; it depends on the approved PVC compound, additives, tooling, production hygiene, quality controls and validation required by the destination market.
Do you provide installation and commissioning support?
We can provide line layout, factory testing, operation guidance and commissioning support according to the final project scope.
