PVC Medical Saliva Ejector Hose Extrusion Line
- Material
- Medical PVC granule, iron wire
- Pipe / Hose Range
- 6.5 mm OD
- Output
- 40 - 60 kg/h
PVC medical saliva ejector hose extrusion line for 6.5 mm dental suction hose with iron-wire straightening, preheating, PVC coating, water cooling, servo pulling and servo cutting.
PVC Medical Saliva Ejector Hose Extrusion Line
This line is configured from the supplied PVC Medical Saliva Hose Extrusion Line quotation for 6.5 mm dental saliva ejector hose production.
The production flow starts with iron-wire unwinding, straightening and preheating, followed by SJ55/30 PVC extrusion, water cooling, servo traction and precise cutting.
Applications
Technical Features
- 6.5 mm dental saliva ejector hose configuration
- SJ55/30 extruder with 55 mm nitrided screw and 30:1 L/D
- 304 stainless steel two-section cooling tank
- Siemens PLC and touch screen servo cutting control
- Quoted total installed power 42 kW and running power about 22 kW
Optional Equipment
How to Choose
- Confirm the finished hose OD, cut length and required pieces per minute.
- Provide the medical PVC formulation and iron-wire specification.
- Verify site power, cooling water and line direction before quotation.
Main Equipment and Process
Core units are configured according to pipe material, diameter, layer structure, output target and downstream collection method.

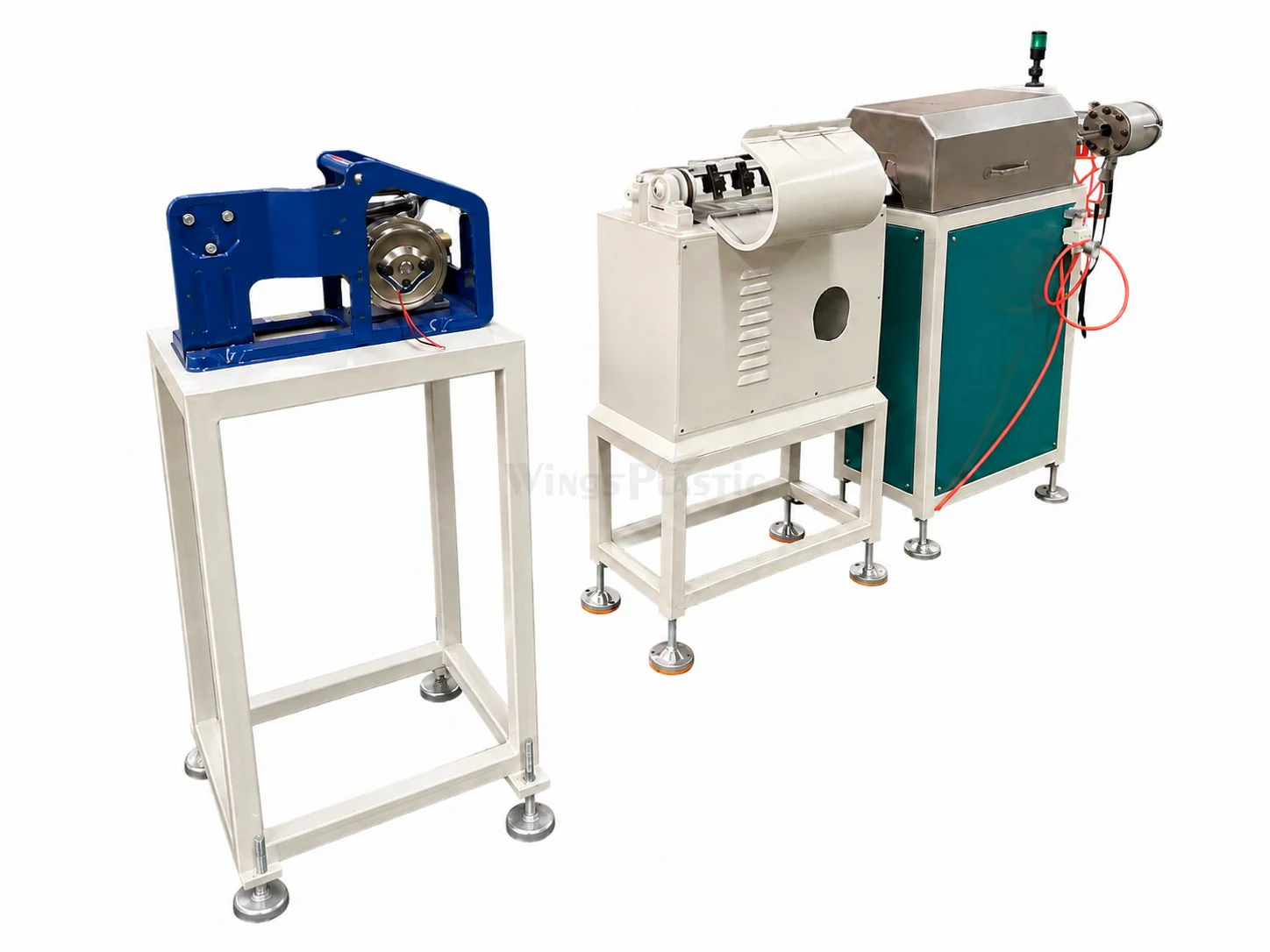

Iron-Wire Unwinding and Straightening
The iron wire is released under controlled tension and straightened before entering the coating section. The quoted straightening motor is 0.75 kW.

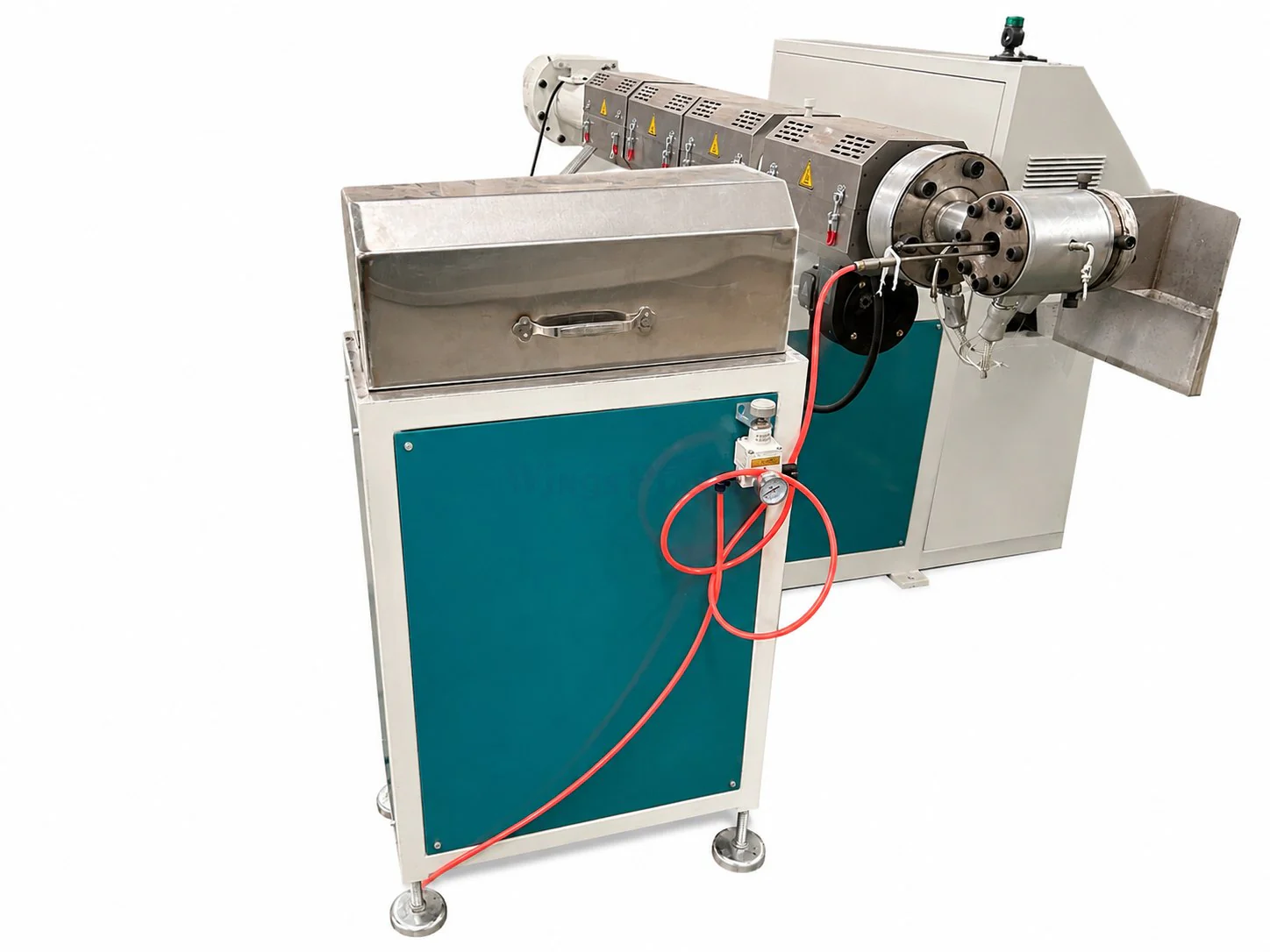

Iron-Wire Preheating Unit
A 4 kW preheating unit raises the wire temperature before PVC coating to support more stable adhesion between the wire core and medical PVC layer.

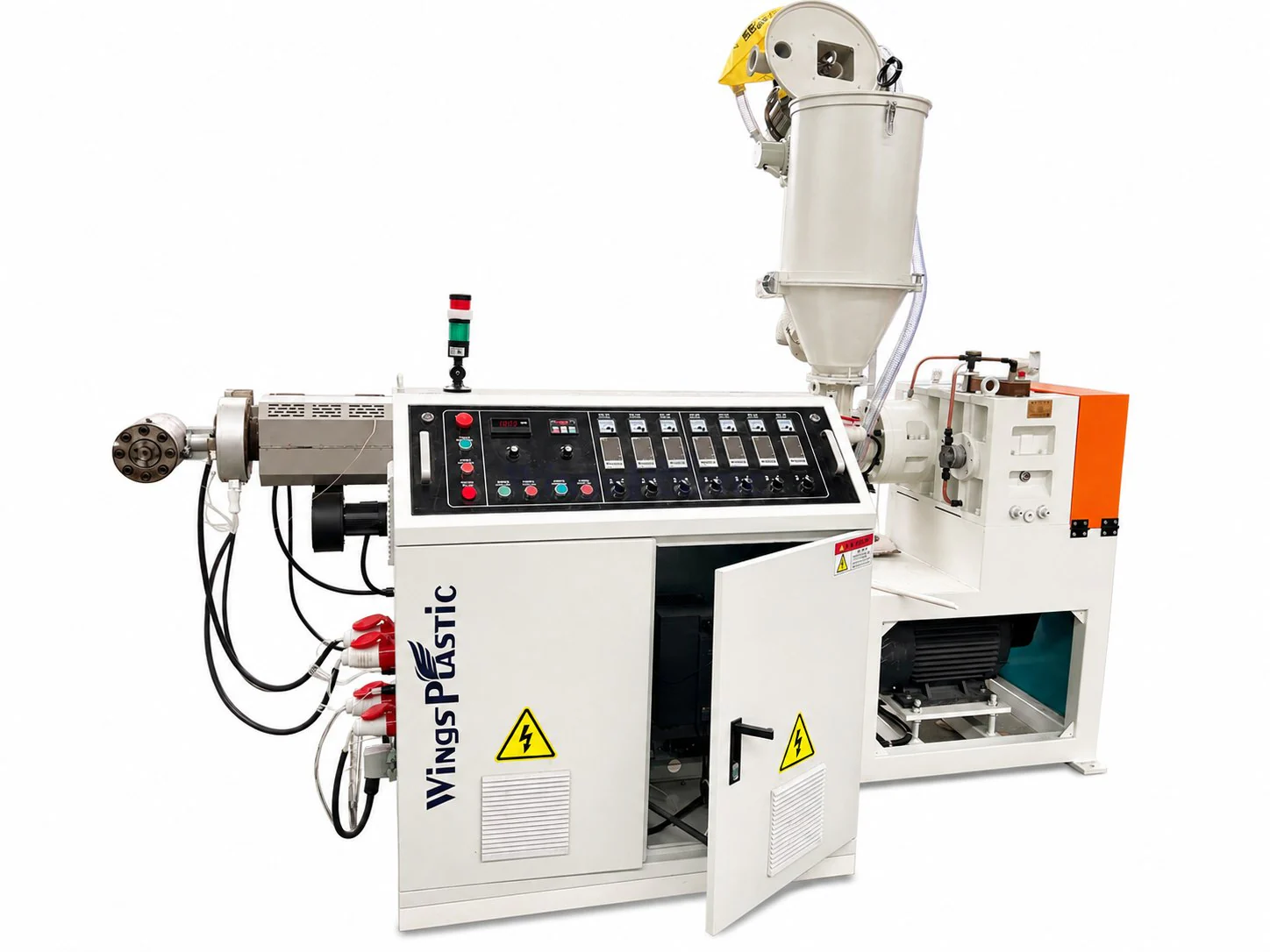

SJ55/30 Single Screw Extruder
The SJ55/30 extruder uses a 55 mm, 30:1 L/D nitrided 38CrMoAlA screw, a 15 kW frequency motor and integrated 1.5 kW vacuum feeding for medical PVC processing.

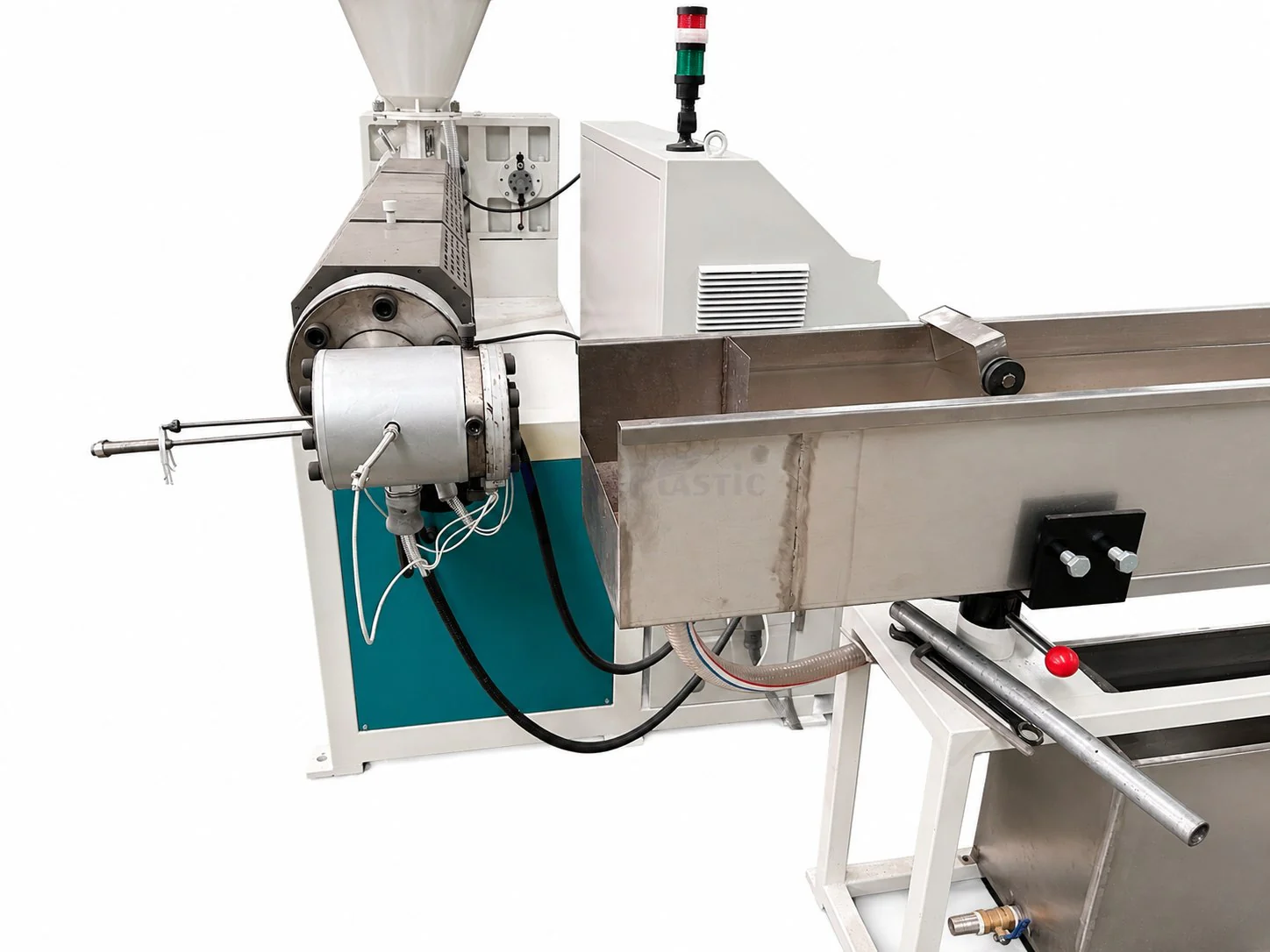

6.5 mm Medical Hose Extrusion Die
The Wings-made extrusion die uses mica heating with 3 kW installed heating power and is tooled for the quoted 6.5 mm finished hose diameter.

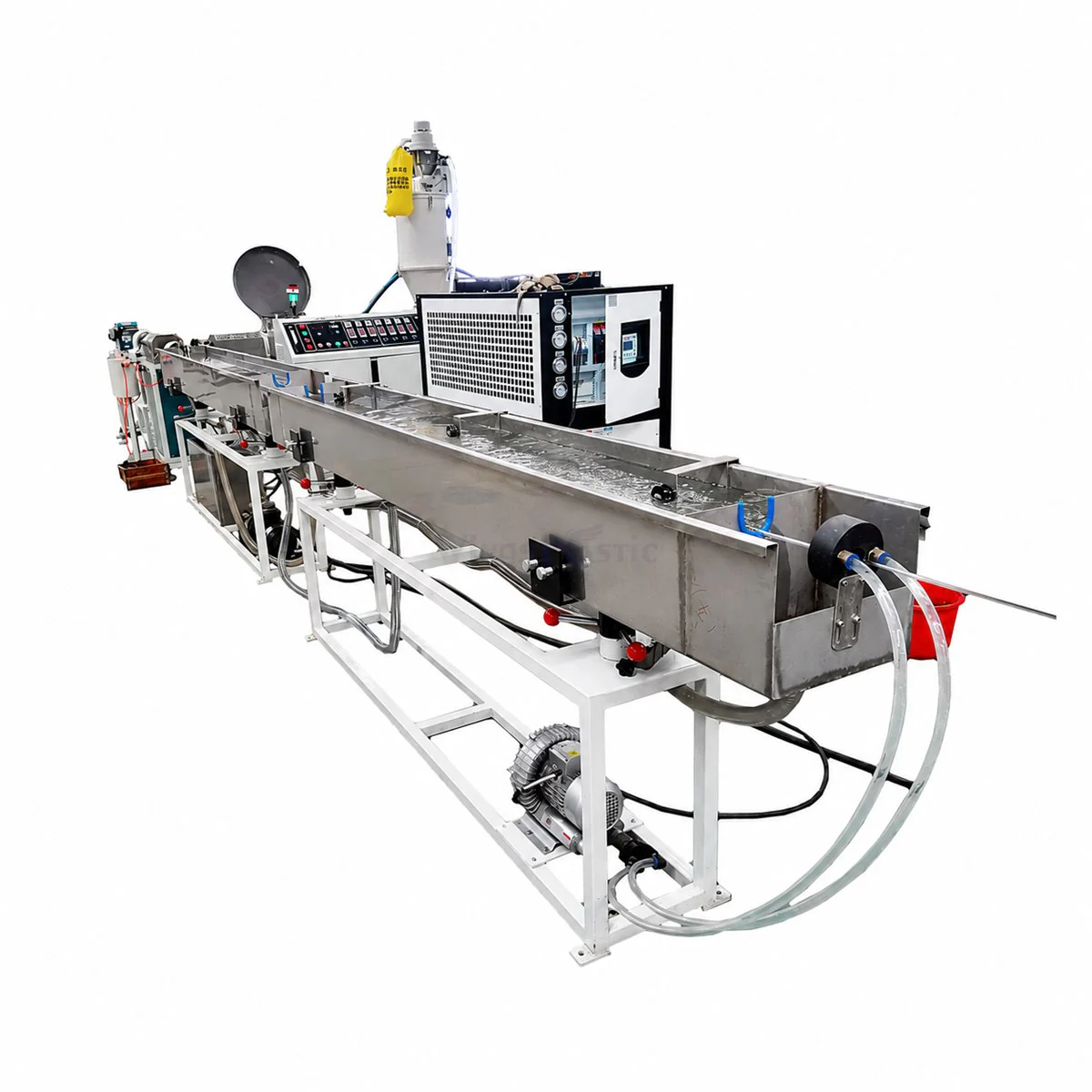

304 Stainless Steel Water Tank
Two 3000 mm water-cooling sections provide a total 6 m cooling path. The tank body is 304 stainless steel and uses a 0.75 kW water pump.

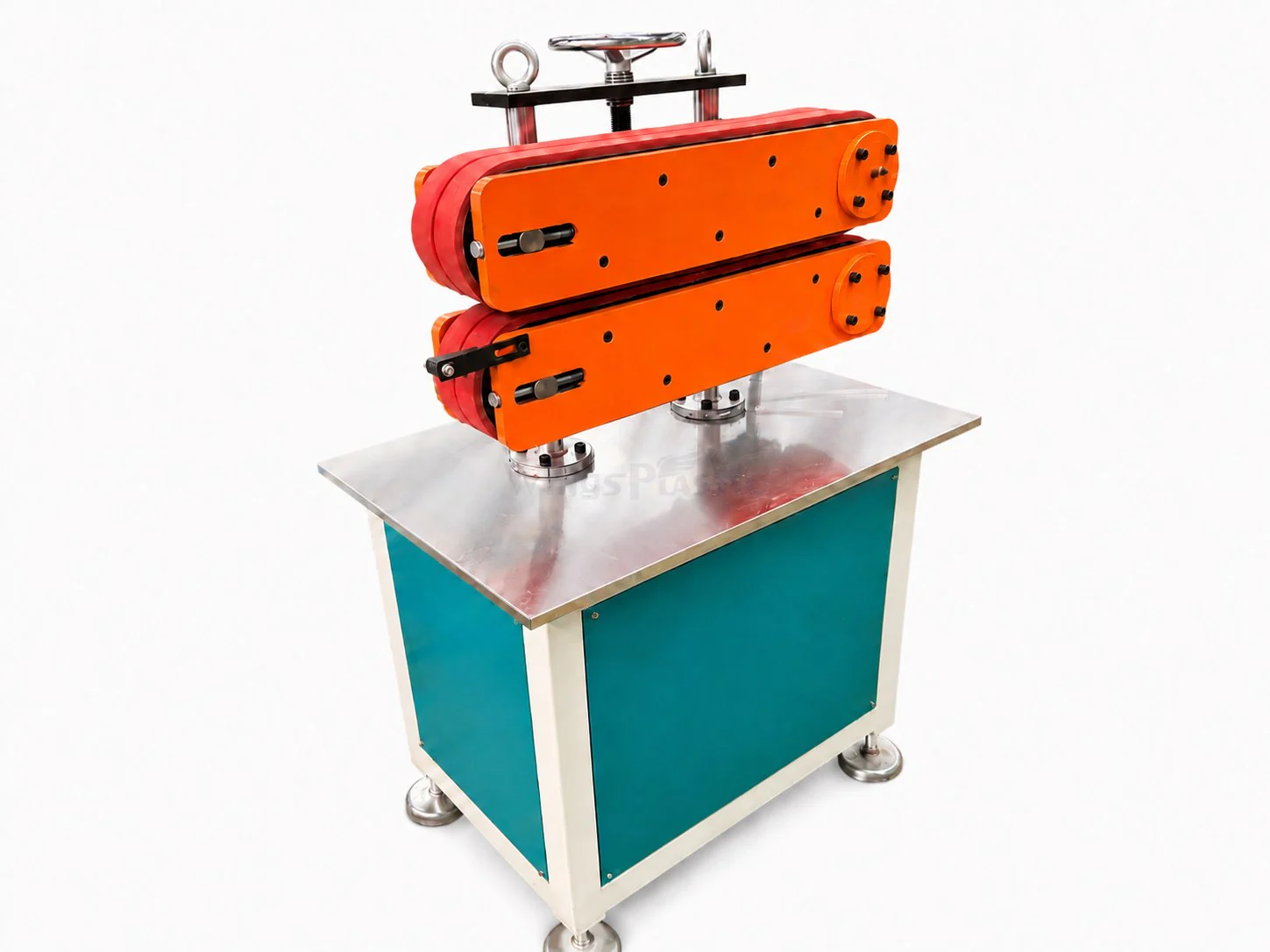

Servo Puller
Rubber-belt pulling is driven by two 0.75 kW Xinjie servo motors. The quoted puller speed range is 1 - 20 m/min.

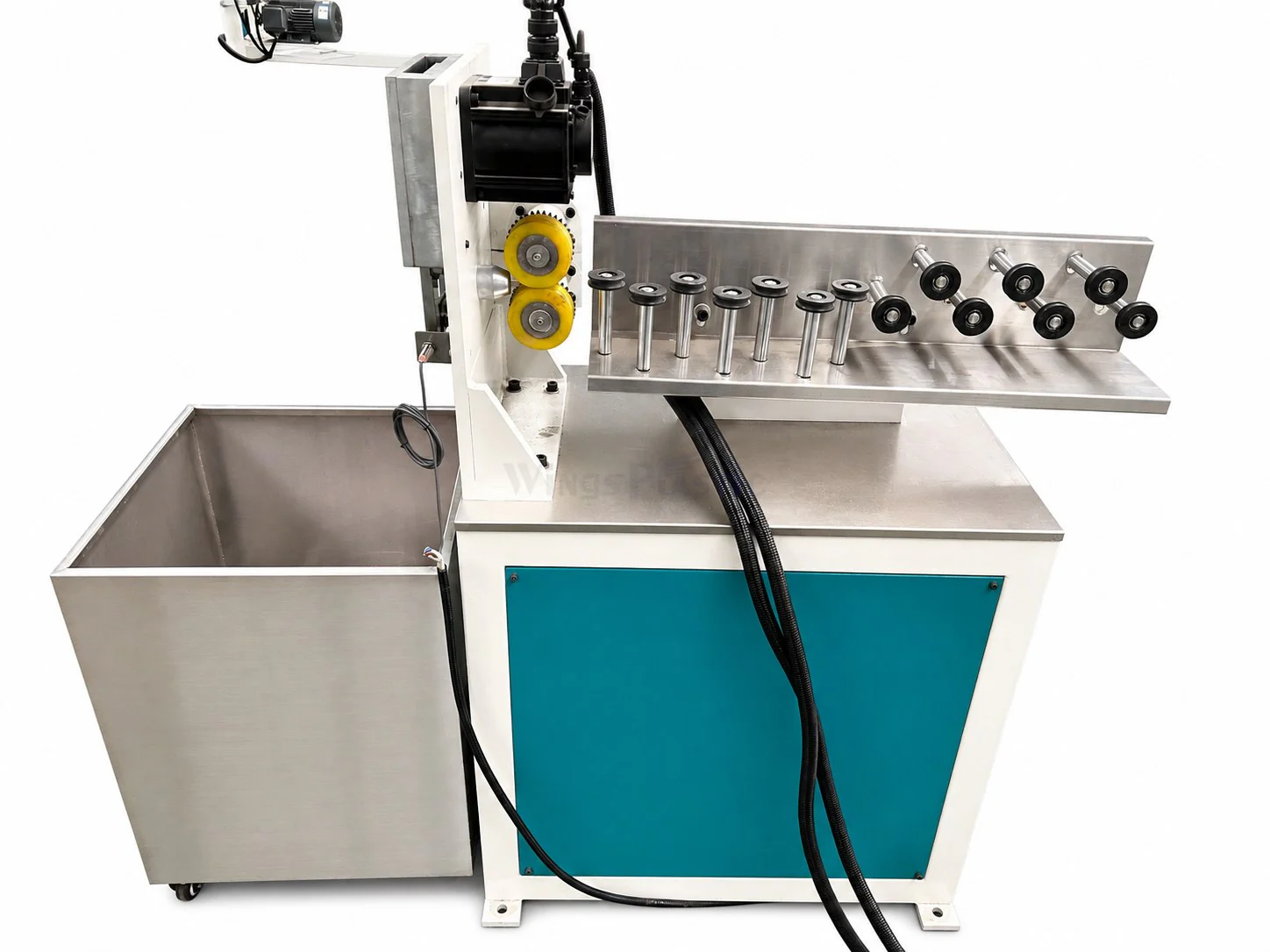

Servo Cutting Unit
The cutting unit combines a 1.3 kW servo cutting motor with a 0.75 kW servo feeding motor. Siemens PLC and touch-screen control synchronize length and cutting.
Quoted PVC Medical Saliva Hose Line Parameters
| Parameter | Quoted Value | Technical Note |
|---|---|---|
| Finished hose diameter | 6.5 mm OD | Die and downstream tooling are configured for the quoted product. |
| Output capacity | 50 - 60 kg/h general; 40 - 50 kg/h detailed extruder rating | The quotation states both values and notes that actual output varies with formulation and operation. |
| Extrusion line speed | 4 - 30 m/min | Detailed puller specification is 1 - 20 m/min; final production speed depends on cutting and product settings. |
| Installed / running power | 42 kW / approximately 22 kW | Quoted complete-line electrical requirement. |
| Line dimensions | 20 m x 3 m x 2.7 m | Facility section also lists 20 m x 2 m x 3 m; final layout must be confirmed before manufacture. |
| Operation direction | Right to left | Centerline height: 1000 mm. |
SJ55/30 Extruder and Downstream Specification
| Unit | Main Specification | Control / Material |
|---|---|---|
| SJ55/30 single screw extruder | 55 mm screw; 30:1 L/D; 1 - 72 r/min; 15 kW motor | 38CrMoAlA nitrided screw and barrel; Delta speed control; vacuum feeding 1.5 kW |
| Extrusion die | 6.5 mm finished hose; 3 kW mica heating | Made by Wings |
| Water tank | 3000 mm x 2; 0.75 kW pump | 304 stainless steel; water cooling |
| Puller | Rubber belt; 0.75 kW x 2 servo motors; 1 - 20 m/min | Xinjie servo motors and drivers |
| Cutting unit | 1.3 kW cutting servo; 0.75 kW feeding servo | Siemens PLC and touch screen |
FAQ
What information is needed to quote a PVC Medical Saliva Ejector Hose Extrusion Line?
Please provide material, pipe or hose diameter range, wall thickness or layer structure, output target, voltage, final application, factory layout and optional equipment requirements.
Can the line be customized for local pipe standards?
Yes. Extruder, die tooling, calibration, haul-off, cutter, coiler, belling or other downstream units can be configured according to pipe OD, wall thickness, application and output target.
Do you provide installation and commissioning support?
We can provide line layout, factory testing, operation guidance and commissioning support according to the final project scope.
Request a Quotation
Send pipe material, diameter range, output target, voltage, final application and optional equipment requirements. We will recommend a practical extrusion line configuration.
