PU/TPU Pipe Extrusion Line
- Material
- PU, TPU
- Pipe / Hose Range
- Customized flexible tube sizes
- Output
- Project-based output
PU/TPU pipe extrusion line for flexible pneumatic tube, industrial hose and coiled PU or TPU tubing production with online diameter control.
PU/TPU Pipe Extrusion Line
PU/TPU Pipe Extrusion Line produces flexible polyurethane tubing for pneumatic, industrial and general fluid-transfer applications.
The pictured line combines single screw extrusion, precision die forming, vacuum water cooling, belt traction with laser diameter measurement and controlled winding for stable continuous production.
Applications
Technical Features
- Dedicated flexible PU and TPU processing
- Vacuum cooling for stable tube sizing
- Online laser diameter measurement
- Synchronized traction and winding
Optional Equipment
How to Choose
- Confirm whether the material is PU or TPU and provide its grade and hardness.
- Define tube OD, ID, wall thickness and diameter tolerance.
- Provide the target line speed and required online measurement method.
- Confirm finished coil diameter, coil length and packaging method.
Main Equipment and Process
Core units are configured according to pipe material, diameter, layer structure, output target and downstream collection method.

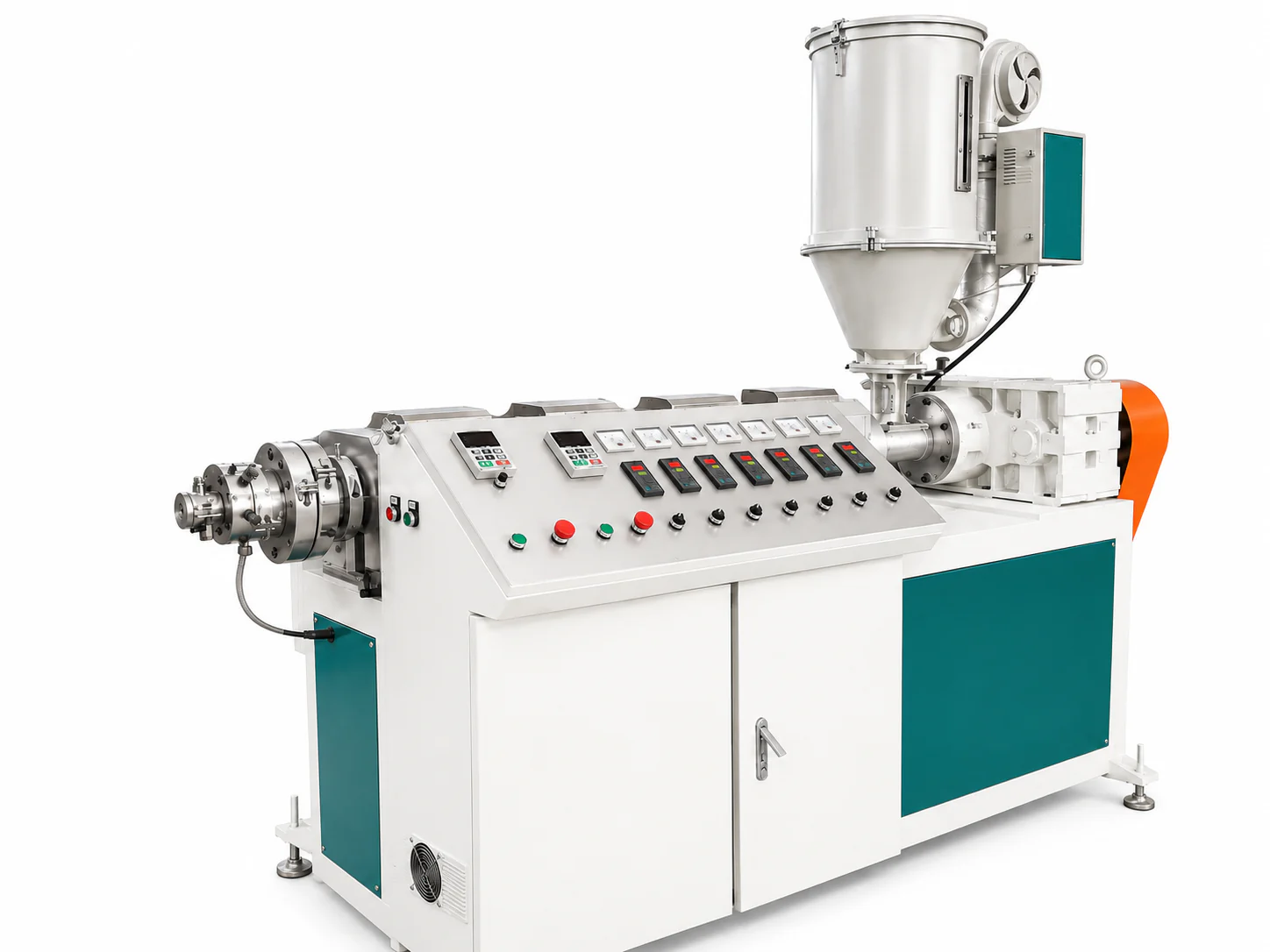

Single Screw Extruder
The single screw extruder melts and conveys PU or TPU material under controlled barrel temperatures. Screw design, drive power and drying requirements are selected for the specified material grade and output.

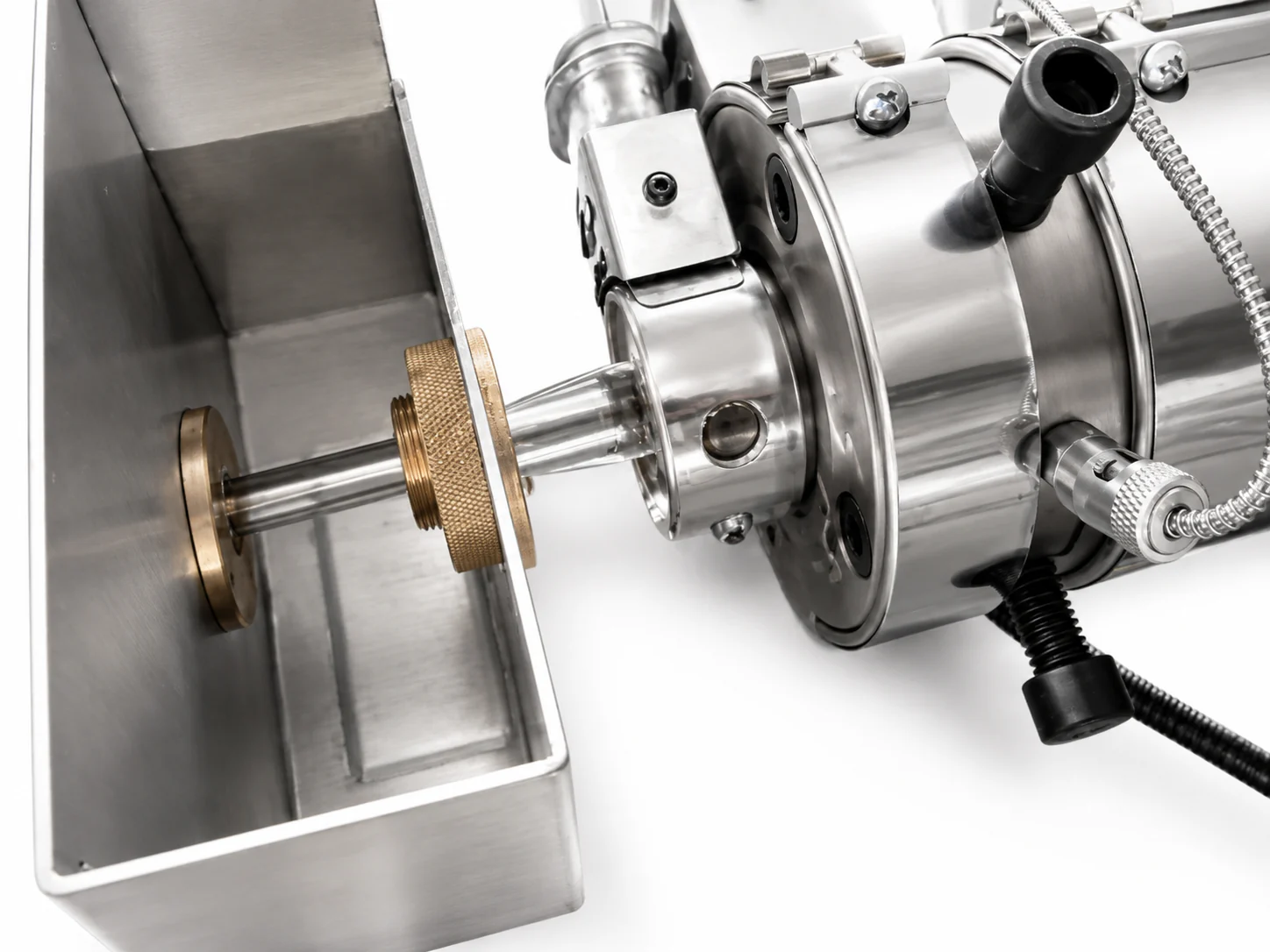

PU/TPU Die Head and Mould
The precision die head forms the molten polymer into the required tube OD, ID and wall thickness before it enters the cooling section.

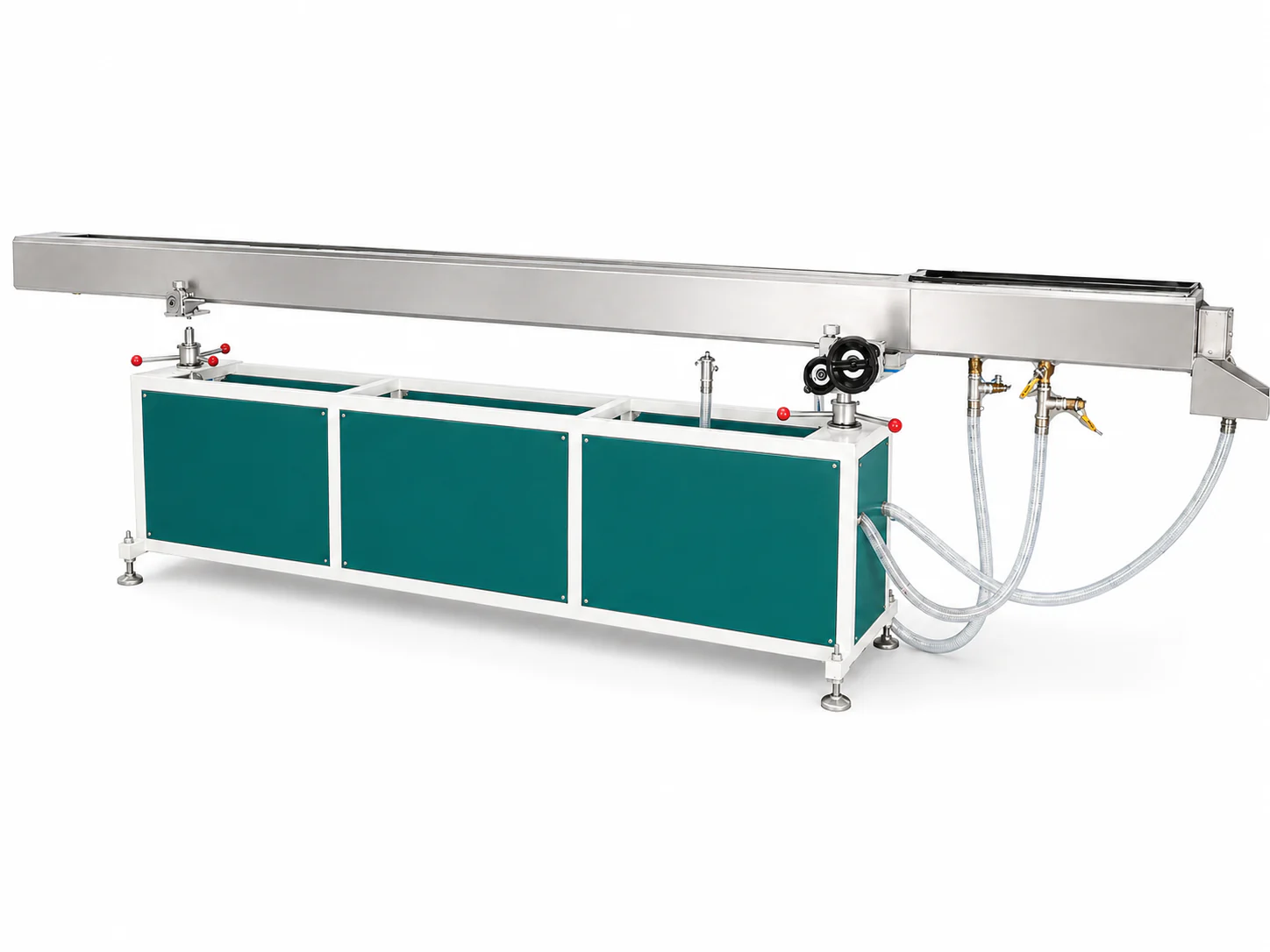

Vacuum Cooling Tank
The stainless steel tank provides controlled vacuum sizing and water cooling so the flexible tube maintains stable dimensions and surface quality after extrusion.

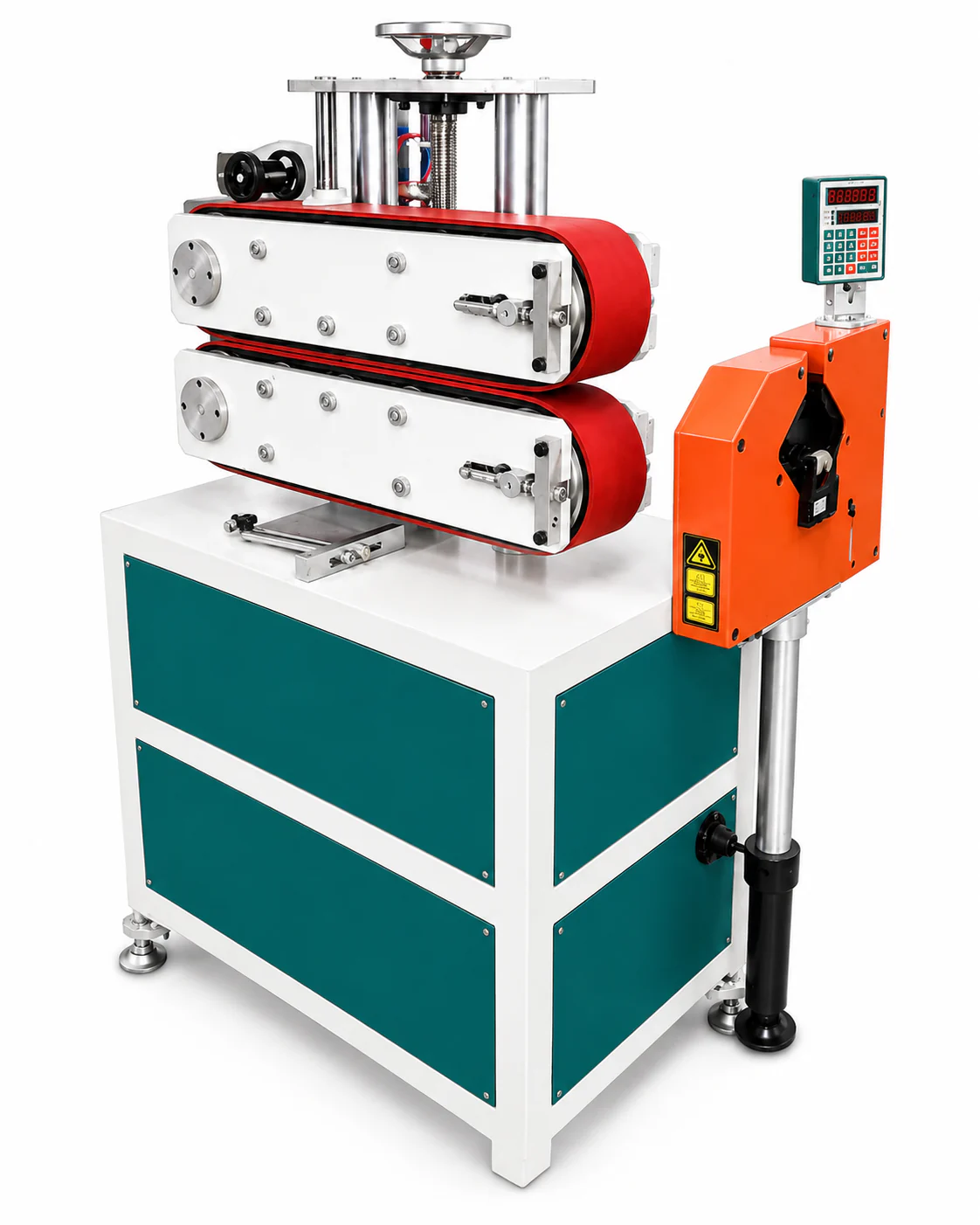

Belt Puller with Laser Diameter Meter
The belt puller provides steady traction while the laser gauge monitors tube diameter online. Pulling speed can be coordinated with extrusion output to maintain the target size.

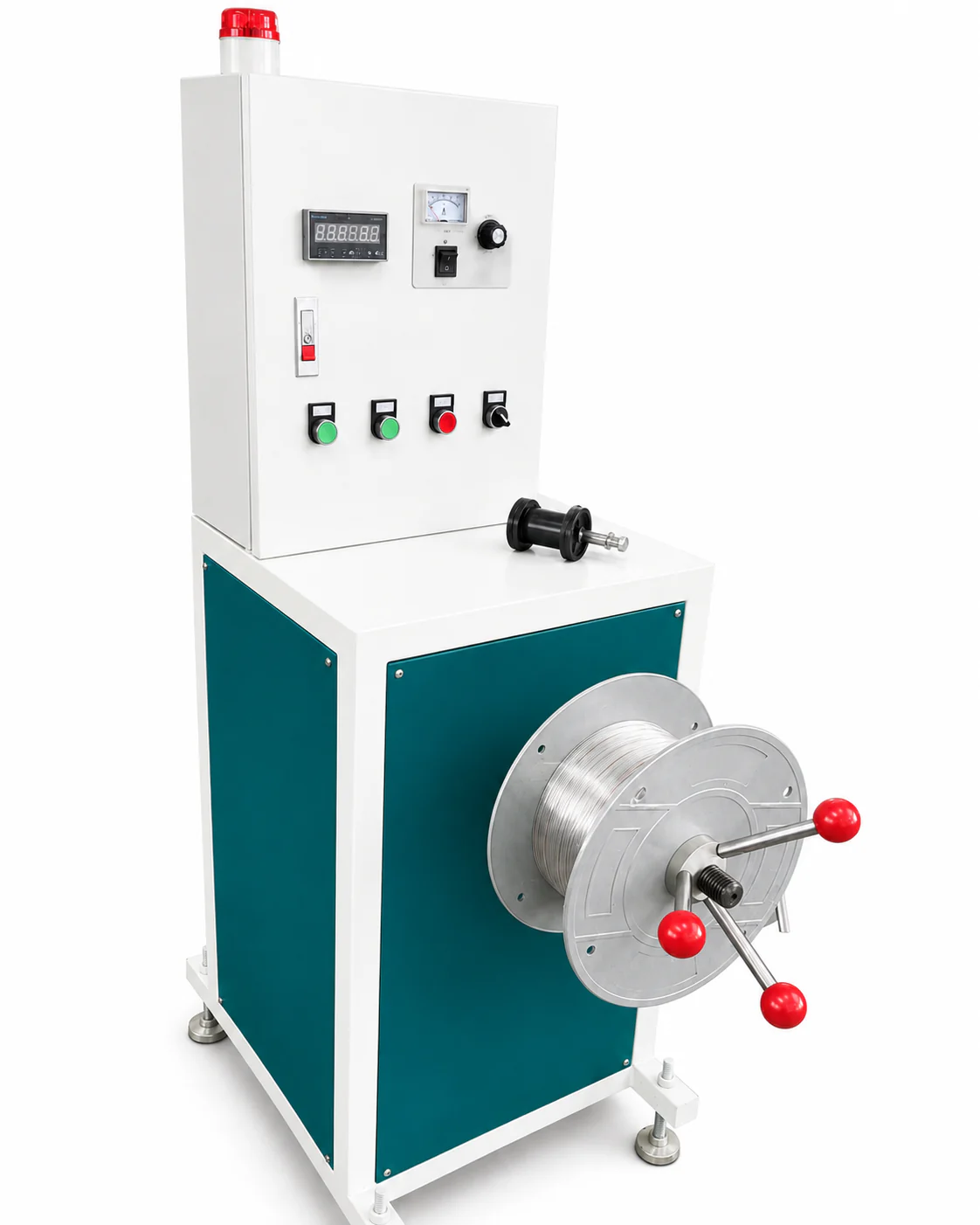

Controlled Winder
The single-station winder collects the finished flexible tube into coils with adjustable winding control for the specified coil length and package format.
PU/TPU Pipe Extrusion Line Configuration
| Item | Configuration | Selection Point |
|---|---|---|
| Material | PU, TPU | Confirm polymer grade, hardness, color and drying requirement. |
| Pipe / hose range | Customized flexible tube sizes | Define OD, ID, wall thickness and permitted diameter tolerance. |
| Output | Project-based output | Select extruder, cooling length, puller speed and winder by capacity. |
FAQ
What information is needed to quote a PU/TPU Pipe Extrusion Line?
Please provide the PU or TPU grade, hardness, tube OD and ID, wall thickness, tolerance, output target, voltage, final application and coil requirements.
Can the line include online diameter measurement?
Yes. A laser diameter meter can be integrated beside the puller for online size monitoring and coordinated production adjustment.
Can the winder be configured for different coil sizes?
Yes. The winding fixture and control can be selected according to tube diameter, coil length, finished coil size and packaging method.
Request a Quotation
Send pipe material, diameter range, output target, voltage, final application and optional equipment requirements. We will recommend a practical extrusion line configuration.
