PA Nylon Pipe Extrusion Line
- Material
- PA, nylon
- Pipe / Hose Range
- Small precision tube sizes
- Output
- Project-based output
PA nylon pipe extrusion line for automotive nylon pipe, pneumatic nylon tube and engineering plastic tube production.
PA Nylon Pipe Extrusion Line
PA Nylon Pipe Extrusion Line is used for nylon tube extrusion where drying control, dimensional accuracy and stable surface quality are important.
It is a special plastic pipe supplement after the four main product directions.
Applications
Technical Features
- Material drying control
- Precision small tube extrusion
- Online diameter monitoring
- Metered cutting and controlled winding
Optional Equipment
How to Choose
- Confirm PA material grade.
- Define OD, wall thickness and tolerance.
- Choose cutter or coiler.
- Prepare sample if tolerance is strict.
Main Equipment and Process
Core units are configured according to pipe material, diameter, layer structure, output target and downstream collection method.

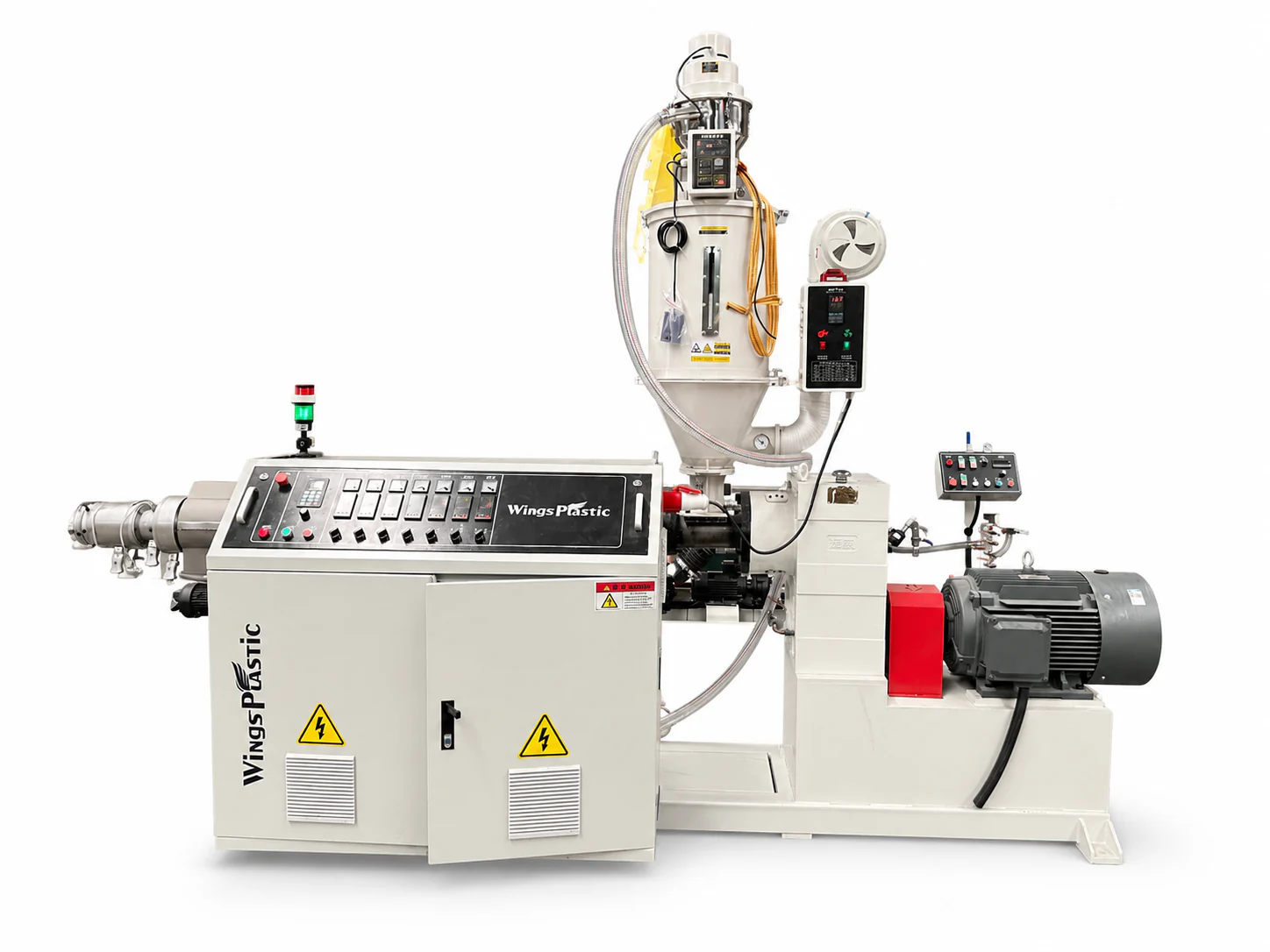

Single Screw Extruder
A dedicated material drying and feeding system supplies the single screw extruder. Screw design, barrel temperature and drive power are selected for the PA grade and target tube size.

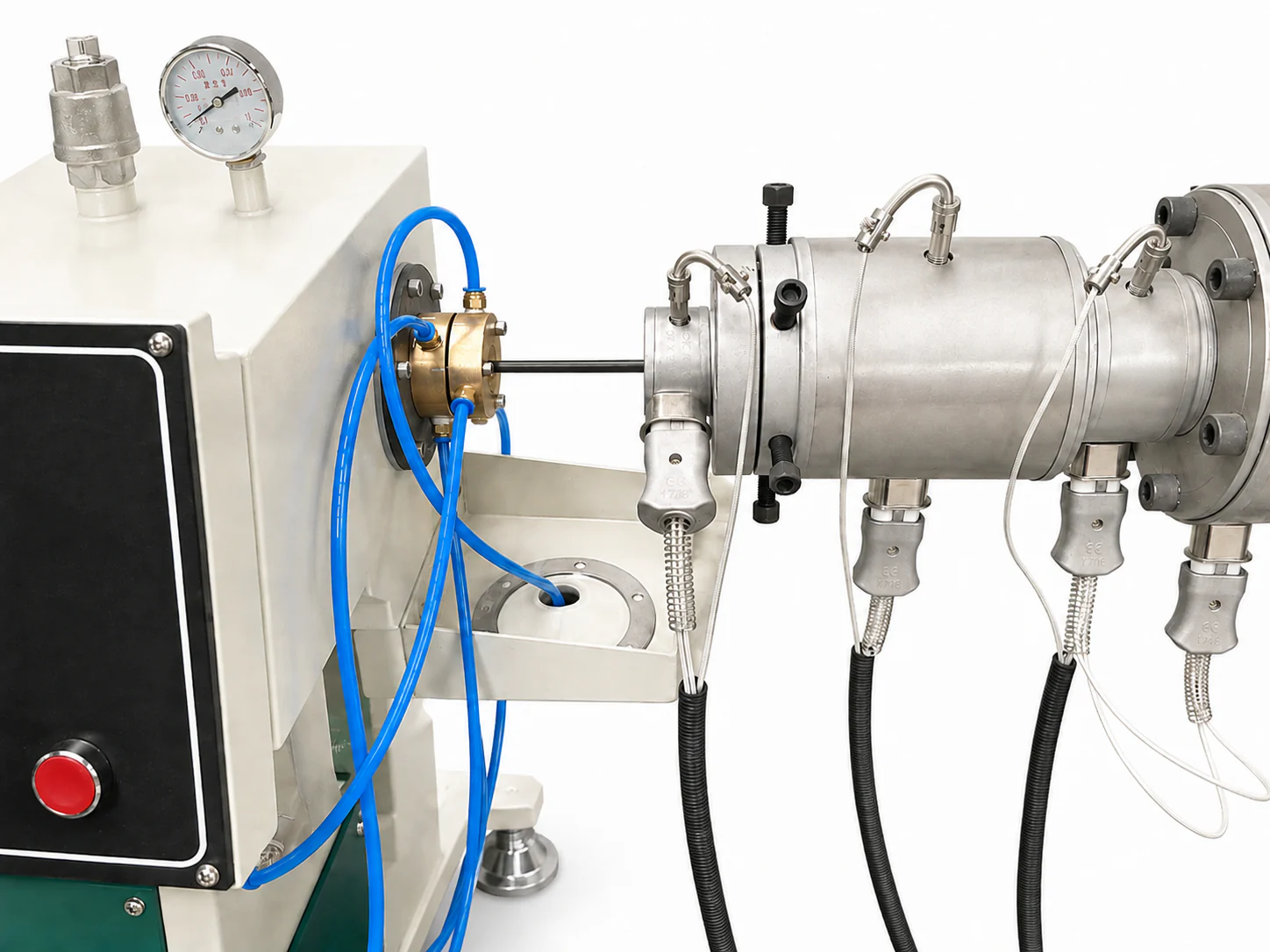

Precision Die Head
The compact tube die forms the PA melt into the specified outside diameter and wall thickness. Tooling is matched to the material grade, finished tube dimensions and tolerance target.

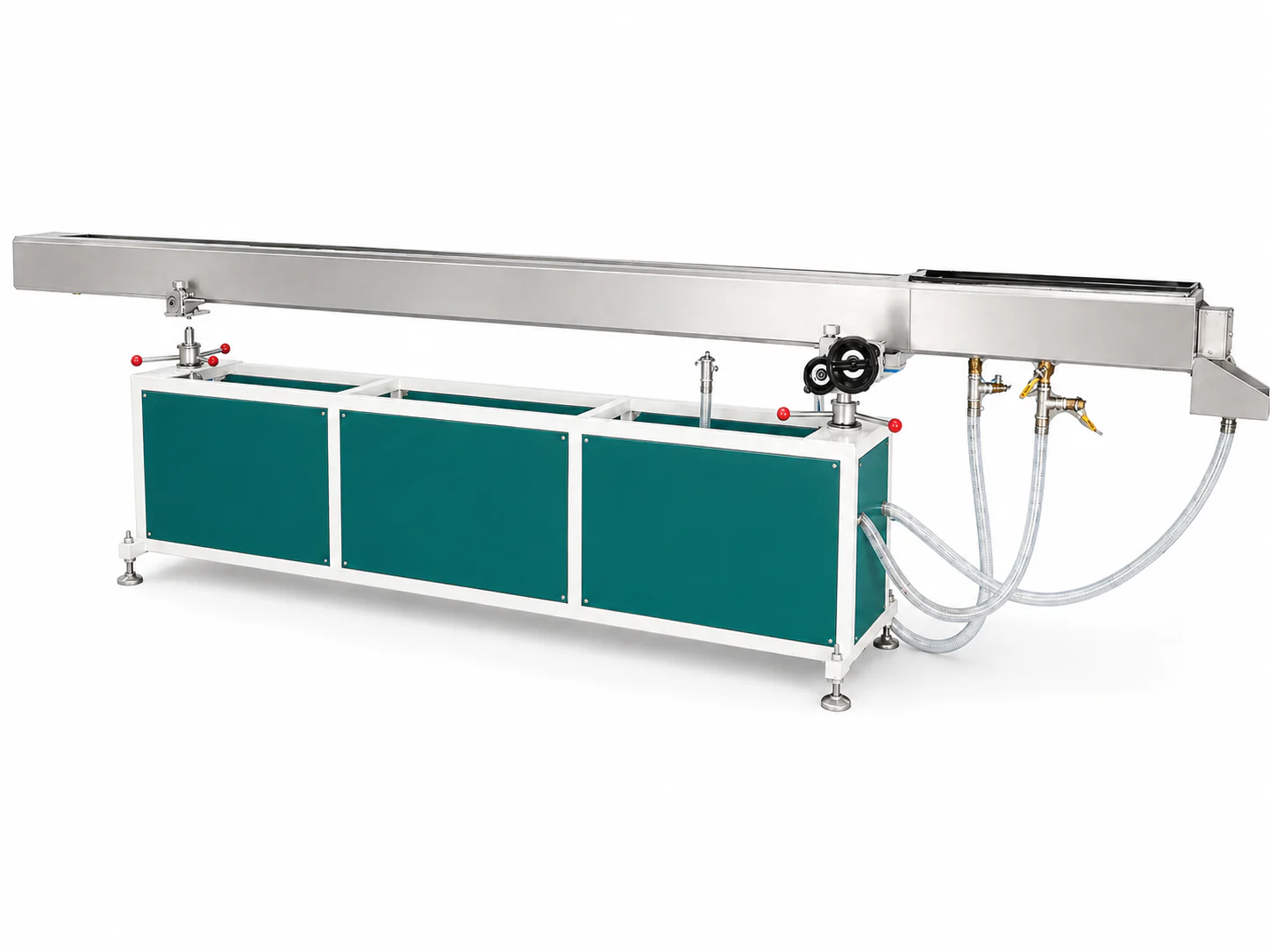

Vacuum Calibration and Cooling Tank
Vacuum sizing and staged water cooling stabilize the small-diameter tube before traction. Tank length and cooling capacity are configured for line speed and PA tube dimensions.

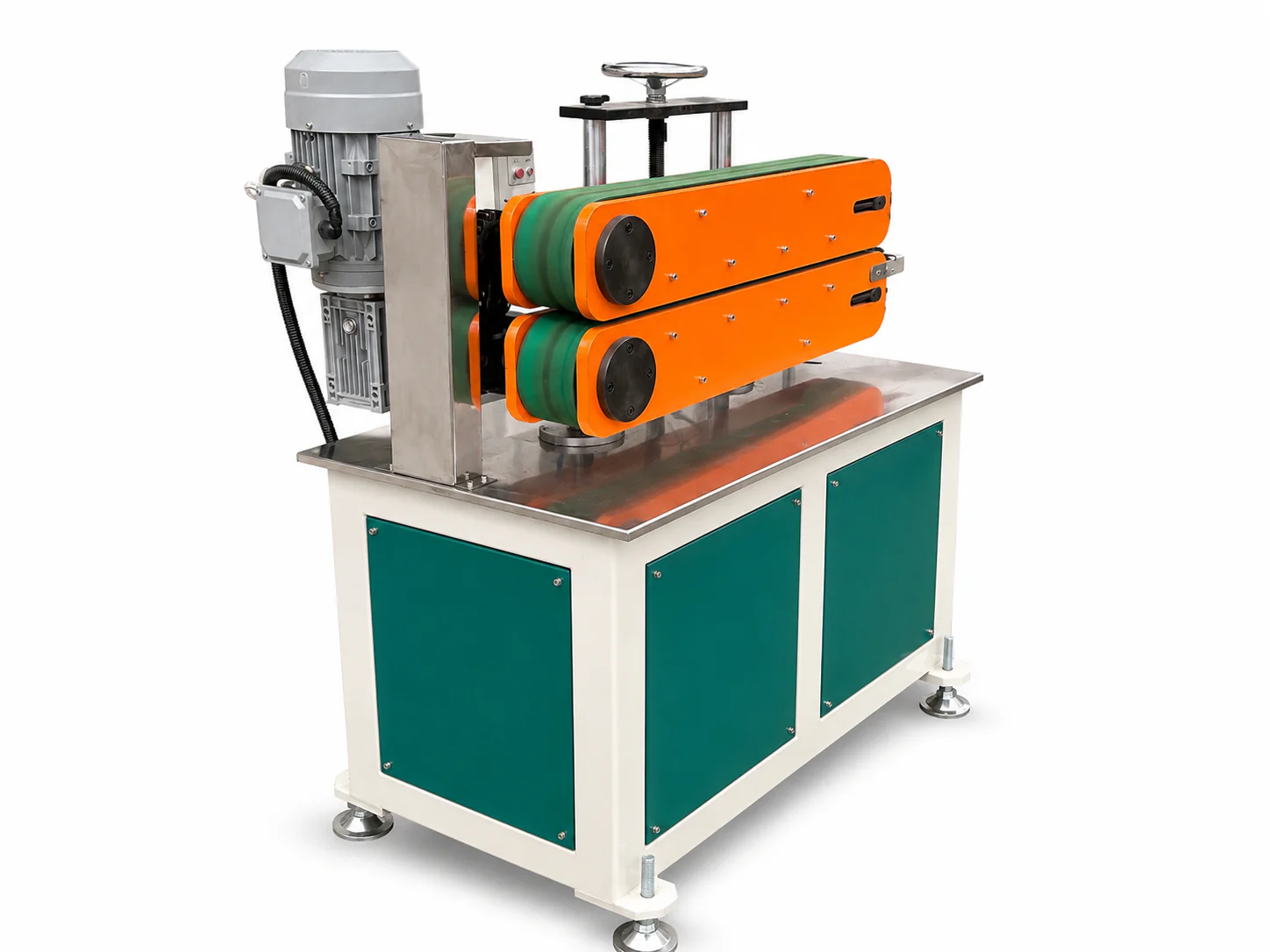

Belt Haul-off Machine
Matched upper and lower belts pull the tube at a steady speed without excessive deformation. Haul-off speed is coordinated with extrusion output to control wall thickness and dimensional stability.

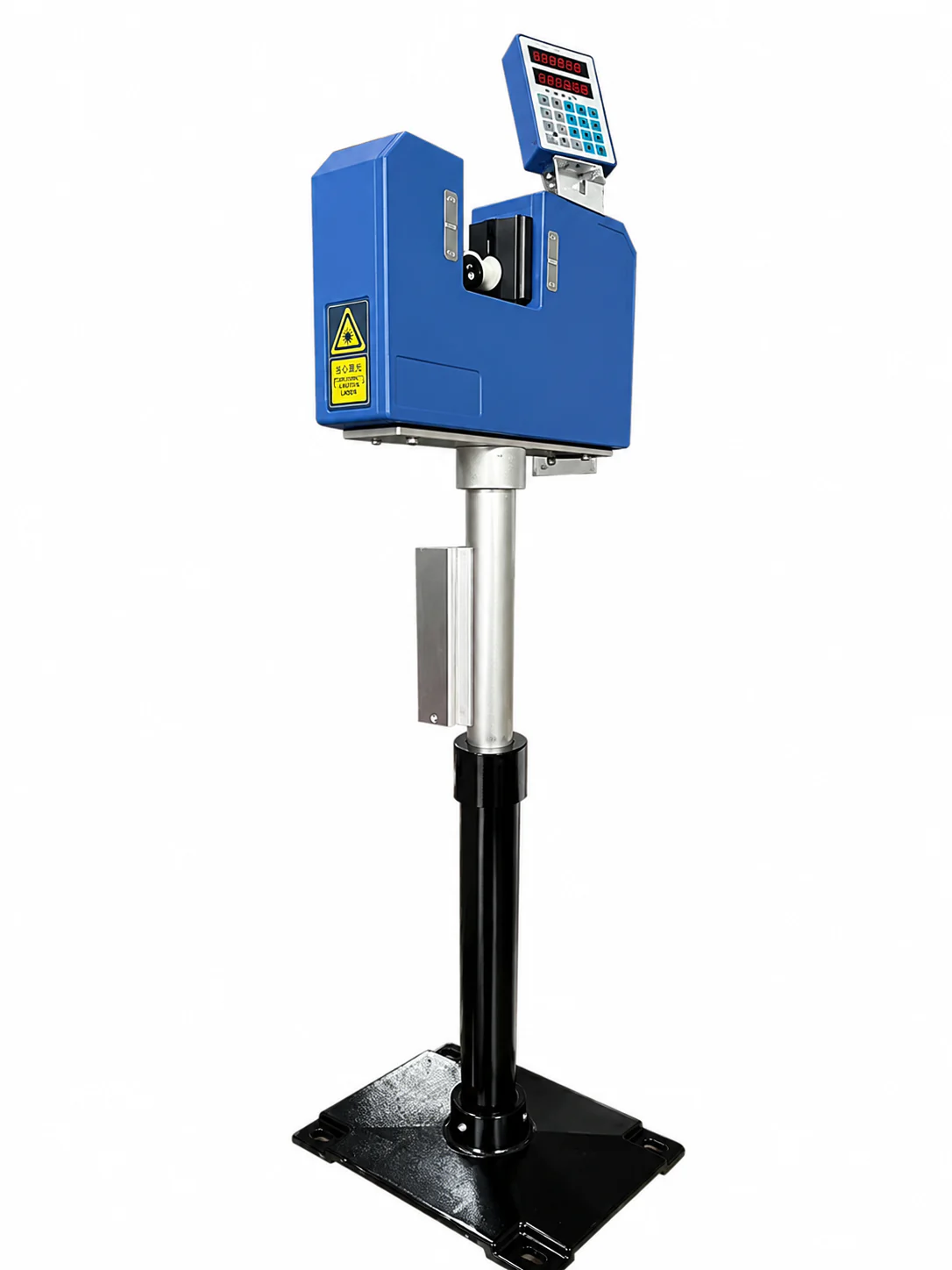

Online Laser Diameter Measurement
A non-contact laser gauge continuously checks the tube outside diameter after cooling. The measurement gives operators immediate feedback for fine adjustment of extrusion and haul-off speed.

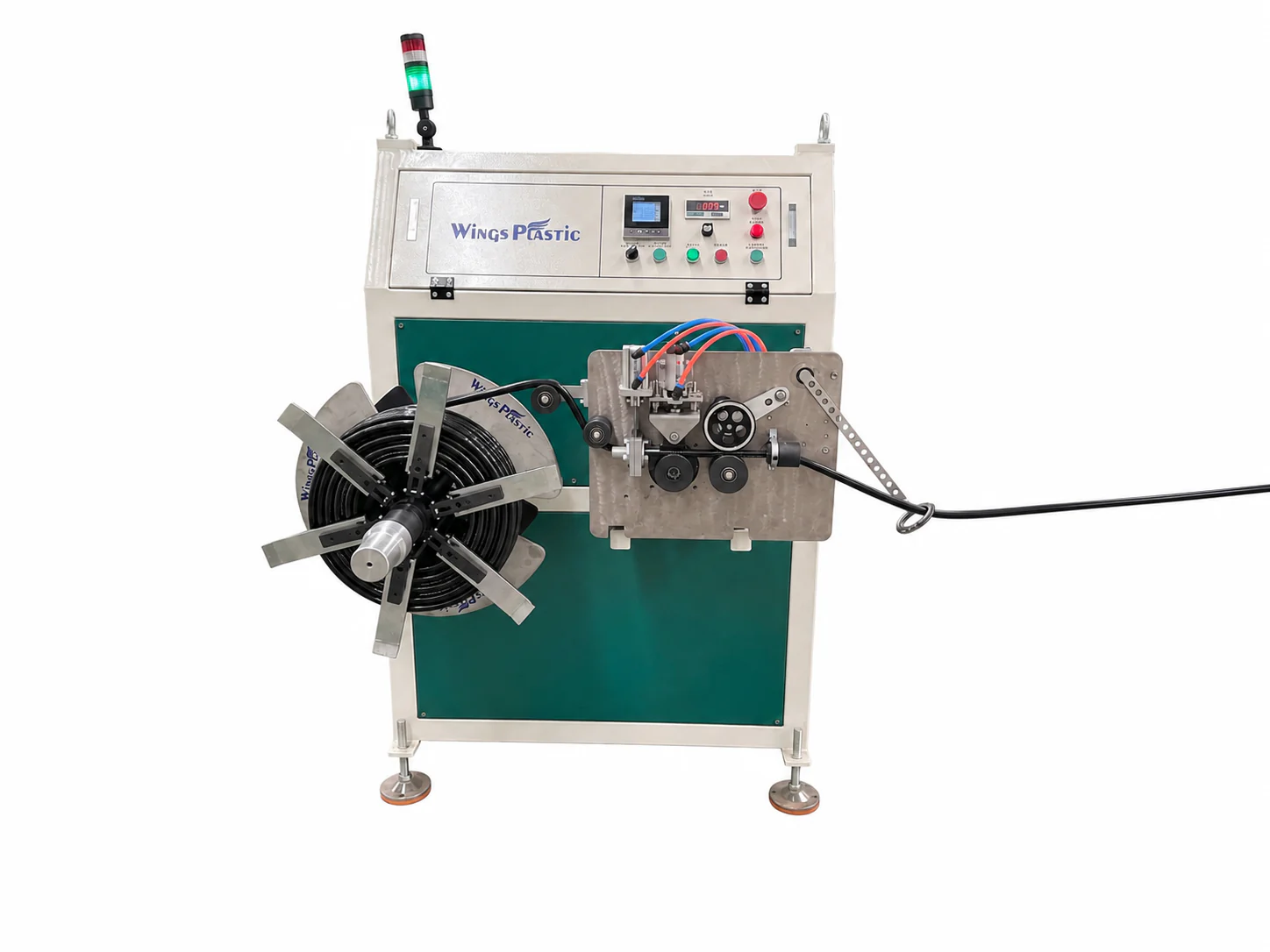

Metering Cutter and Winder
The finished tube is measured, cut and wound into controlled coils for packing. Coil dimensions, winding tension and target length are set according to the required delivery format.
PA Nylon Pipe Extrusion Line Configuration
| Item | Configuration | Selection Point |
|---|---|---|
| Material | PA, nylon | Confirm material grade, formula and drying or mixing requirement. |
| Pipe / hose range | Small precision tube sizes | Define OD, wall thickness, pressure or flexibility target. |
| Output | Project-based output | Select extruder, cooling length and downstream equipment by capacity. |
FAQ
What information is needed to quote a PA Nylon Pipe Extrusion Line?
Please provide material, pipe or hose diameter range, wall thickness or layer structure, output target, voltage, final application, factory layout and optional equipment requirements.
Can the line be customized for local pipe standards?
Yes. Extruder, die tooling, calibration, haul-off, cutter, coiler, belling or other downstream units can be configured according to pipe OD, wall thickness, application and output target.
Do you provide installation and commissioning support?
We can provide line layout, factory testing, operation guidance and commissioning support according to the final project scope.
Request a Quotation
Send pipe material, diameter range, output target, voltage, final application and optional equipment requirements. We will recommend a practical extrusion line configuration.
