PMMA/PC/ABS pipe extrusion line with vented single screw extrusion, precision die forming, vacuum calibration, multi-caterpillar traction, rotary cutting and stacking.
PMMA/PC/ABS Pipe Extrusion Line
PMMA/PC/ABS Pipe Extrusion Line produces rigid plastic pipe and tube for clear, translucent or opaque applications according to the selected resin and tooling.
The pictured line combines a vented single screw extruder, extrusion die, vacuum calibration tank, multi-caterpillar haul-off, rotary saw cutter and stacking table for continuous production.
Applications
Technical Features
- Vented extrusion for stable melt processing
- Precision die and vacuum sizing
- Multi-caterpillar traction for rigid pipe
- Rotary cutting with downstream stacking
Optional Equipment
How to Choose
- Confirm whether the material is PMMA, PC or ABS and provide the resin grade.
- Define pipe OD, ID, wall thickness and dimensional tolerance.
- Specify transparency, gloss and surface requirements where applicable.
- Confirm output target, finished pipe length and stacking method.
Main Equipment and Process
Core units are configured according to pipe material, diameter, layer structure, output target and downstream collection method.

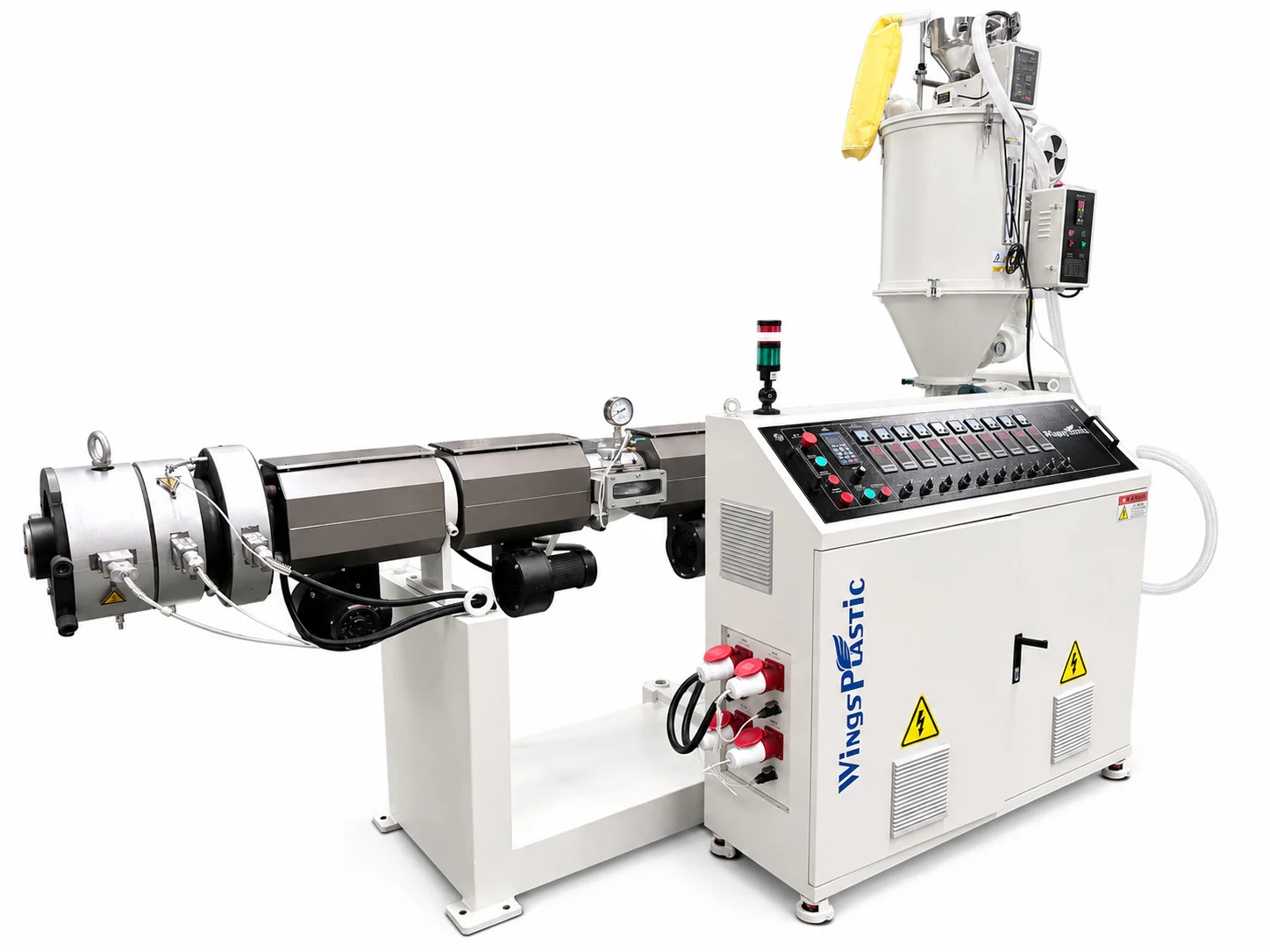

Vented Single Screw Extruder
The vented single screw extruder melts and conveys the selected PMMA, PC or ABS resin. Screw design, temperature zones, venting and drive capacity are matched to the material grade and output target.

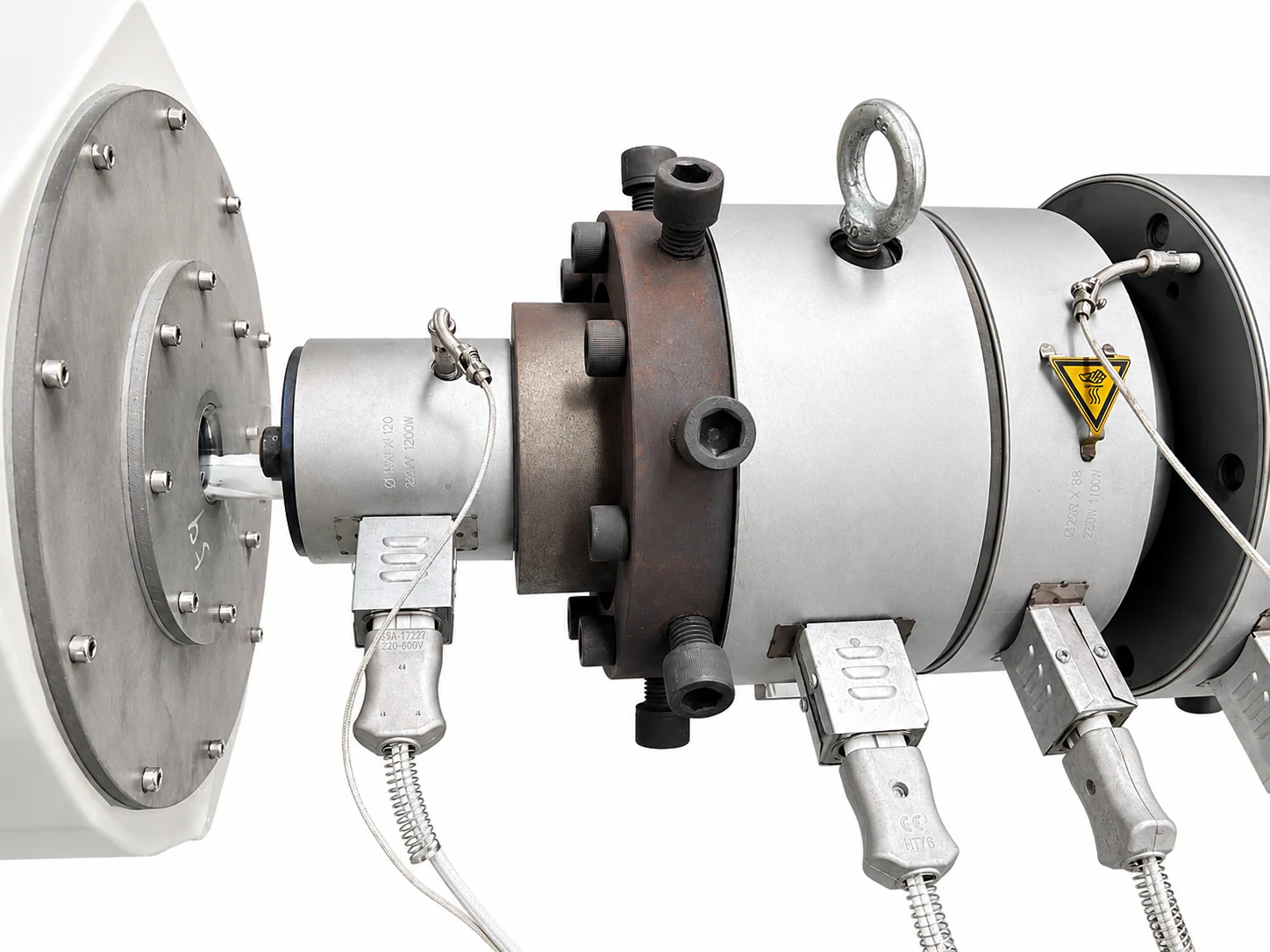

Extrusion Die Head and Mould
The heated extrusion die forms the melt into the required outside diameter, inside diameter and wall thickness before calibration.

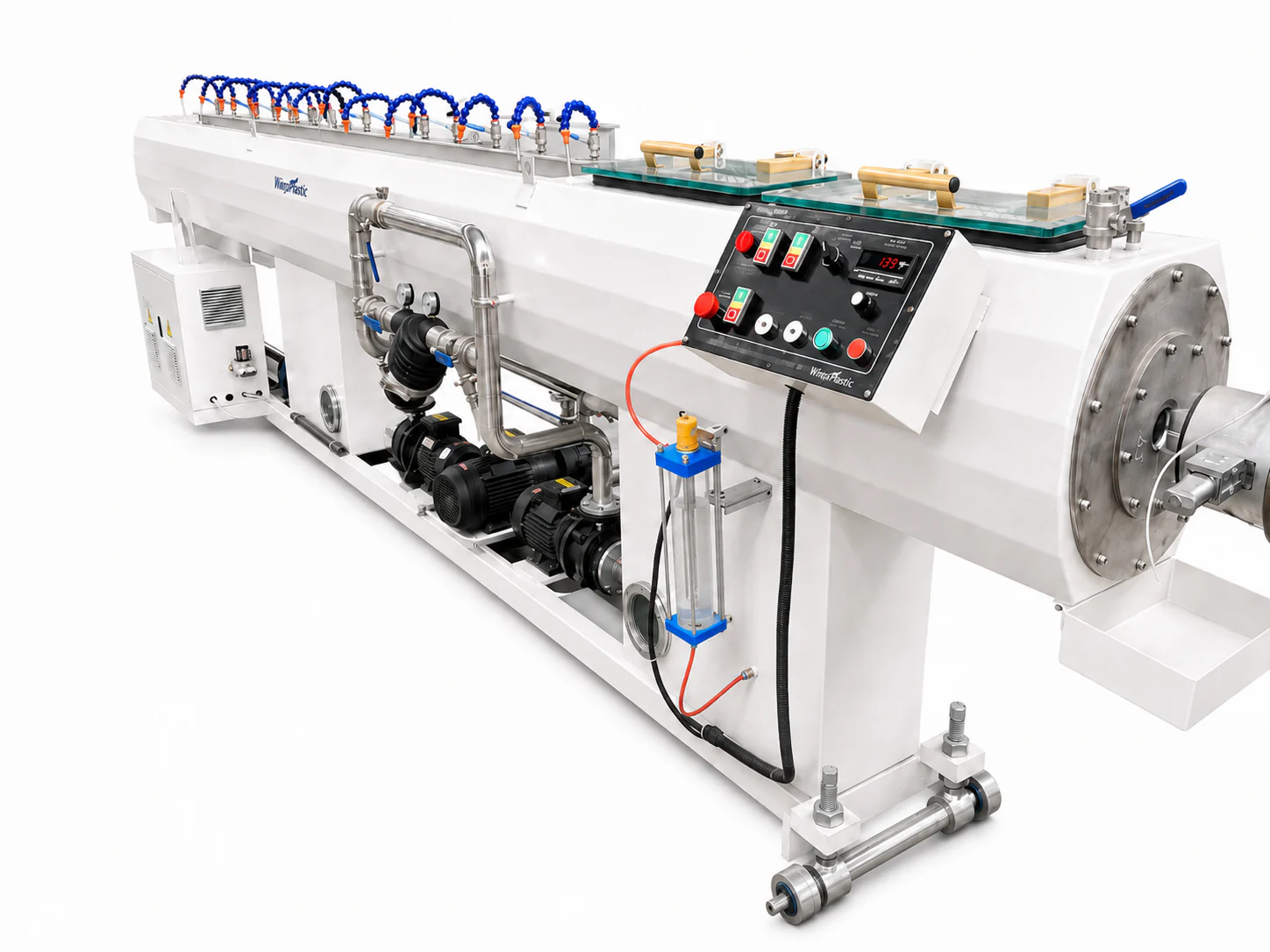

Vacuum Calibration Tank
The vacuum tank calibrates the pipe outside diameter and provides controlled water cooling to stabilize dimensions and surface quality.
Multi-Caterpillar Haul-Off
Multiple caterpillar tracks provide stable contact and synchronized pulling force for rigid pipe while protecting the finished surface.

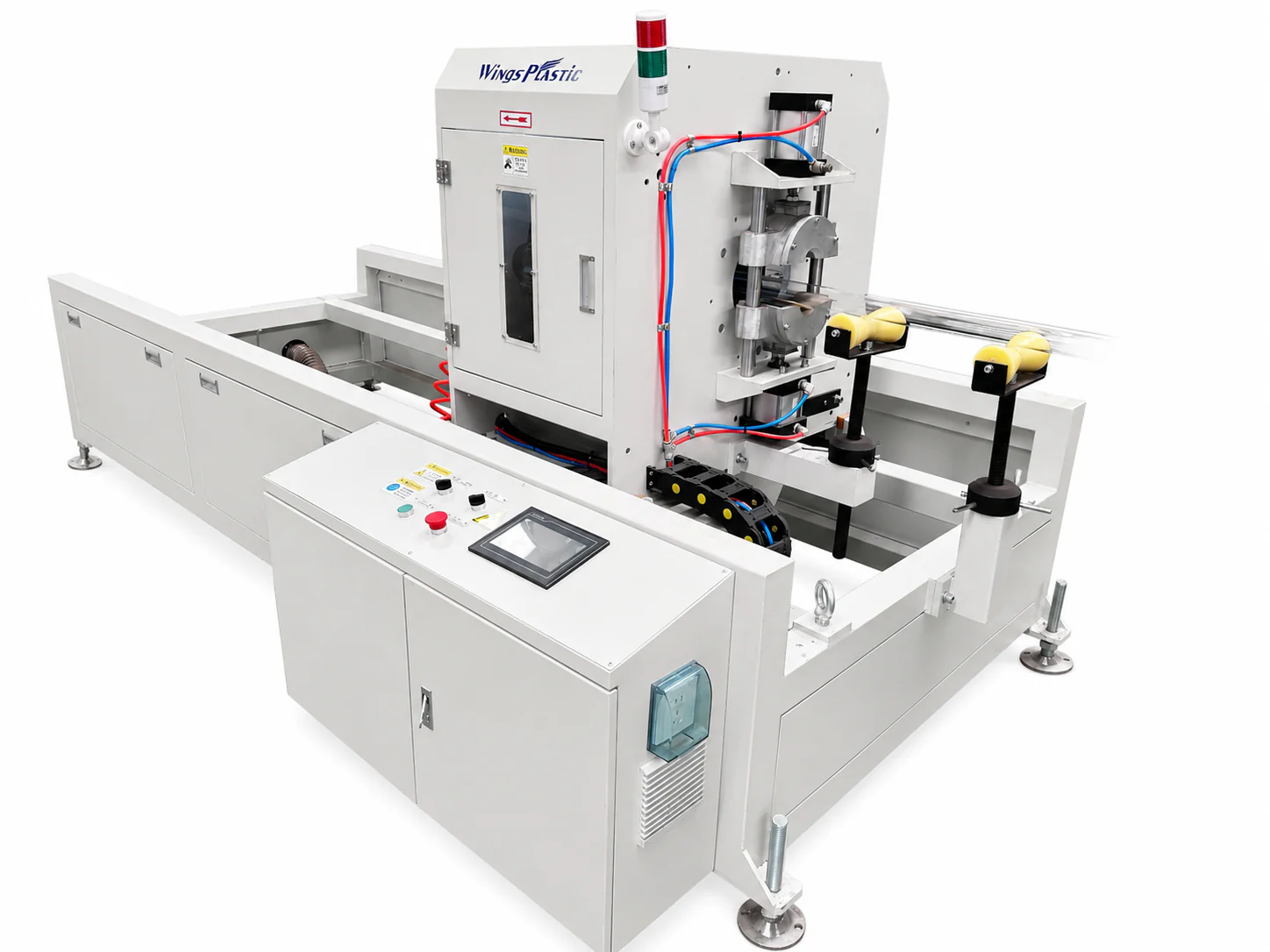

Rotary Saw Cutter
The rotary saw cutter follows the production line and cuts rigid pipe to the specified length. Cutting and dust collection are configured for the material and pipe section.

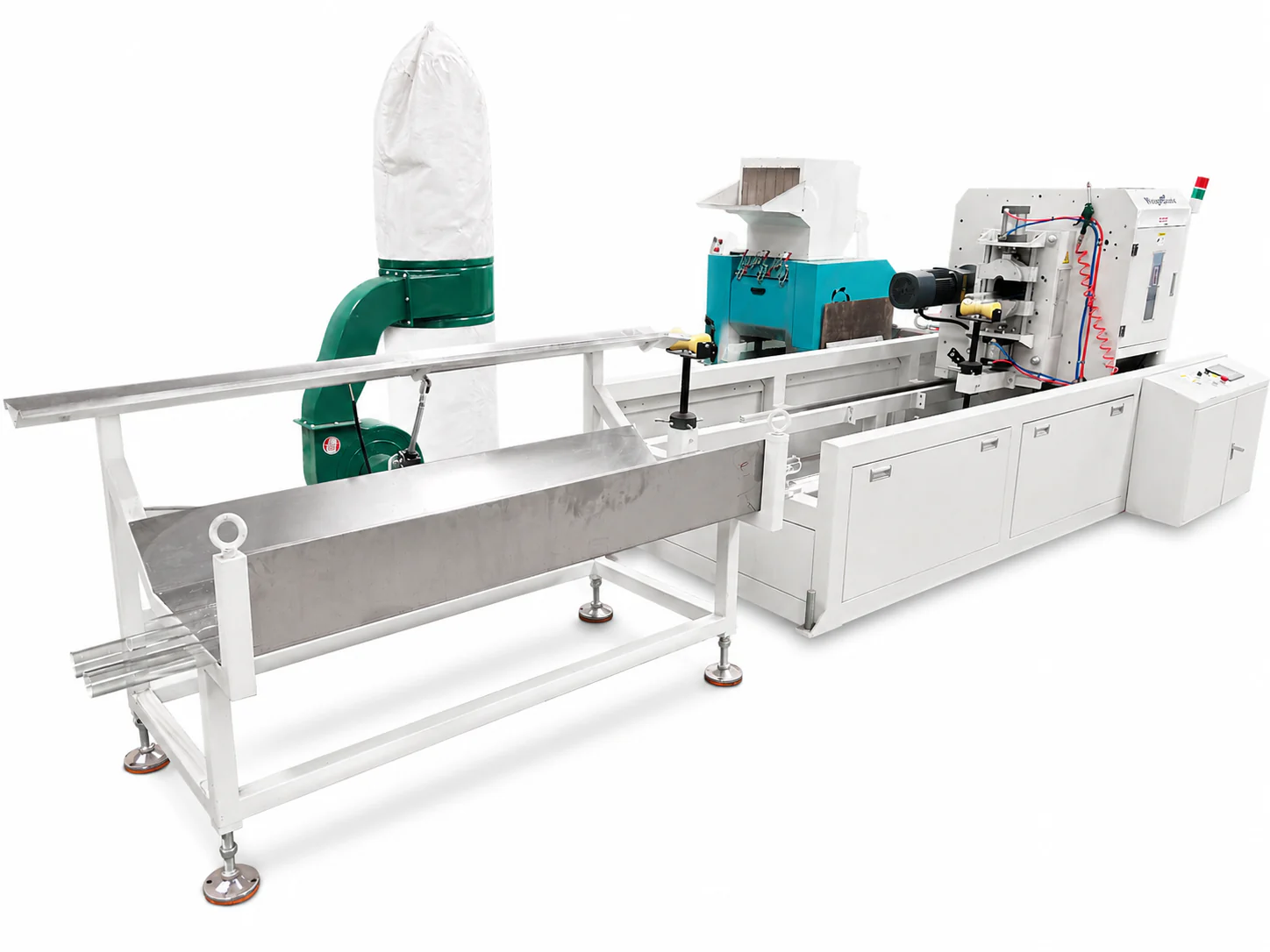

Stacking Table
The downstream stacking table receives cut pipe and provides an organized discharge area for inspection, bundling and packing.
PMMA/PC/ABS Pipe Extrusion Line Configuration
| Item | Configuration | Selection Point |
|---|---|---|
| Material | PMMA, PC, ABS | Confirm resin grade, drying requirement, color and surface target. |
| Pipe / hose range | Customized rigid pipe and tube sizes | Define OD, ID, wall thickness, tolerance and finished length. |
| Output | Project-based output | Select extruder, cooling length, haul-off and cutter by capacity. |
FAQ
What information is needed to quote a PMMA/PC/ABS Pipe Extrusion Line?
Please provide the resin grade, pipe OD and ID, wall thickness, tolerance, output target, voltage, finished length, final application and surface requirements.
Can one line process PMMA, PC and ABS?
A common line platform can be configured for these materials, but the screw design, drying, temperatures, die tooling and cleaning procedure must be confirmed for each resin grade and product.
How is the finished pipe cut and collected?
The pictured configuration uses a multi-caterpillar haul-off, rotary saw cutter and stacking table for fixed-length rigid pipe production.
Request a Quotation
Send pipe material, diameter range, output target, voltage, final application and optional equipment requirements. We will recommend a practical extrusion line configuration.
